ABB 1KHL178016R0001F Power Supply for ACS

ABB 1KHL178016R0001F Power Supply for ACS Automation

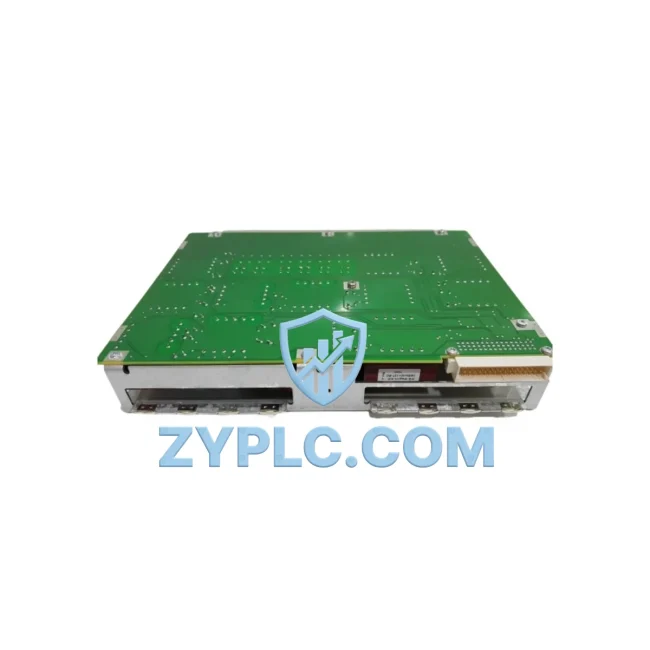

The ABB 1KHL178016R0001F PSM03 is a high-efficiency power supply module engineered for ABB’s ACS series variable frequency drive systems. Designed to deliver stable, regulated DC bus power to ACS drive control boards and auxiliary circuits, this module plays a critical role in reducing unnecessary energy draw at the power conversion stage — one of the most overlooked sources of unplanned downtime in continuous-process manufacturing environments. By maintaining precise voltage output under variable load conditions, the PSM03 ensures that downstream drive components operate within their optimal efficiency bands, directly contributing to lower kWh consumption per production cycle.

At ZYPLC, every 1KHL178016R0001F PSM03 unit undergoes full functional testing prior to shipment, covering output voltage stability, ripple suppression, thermal performance, and load regulation. Each module is backed by a 12-month warranty, giving procurement and maintenance teams confidence in both quality and supply continuity.

Product Specification Table

System Compatibility and Application

In a well-optimized industrial automation system, energy efficiency is not achieved by a single component — it is the result of coordinated performance across the entire drive and control chain. The ABB 1KHL178016R0001F PSM03 sits at the foundation of this chain, supplying clean, stable power to the ACS drive’s internal control logic so that every upstream and downstream component can operate without voltage-induced instability.

In a typical ACS880 multi-drive cabinet installation, the PSM03 works in conjunction with the ABB ACS880-01 inverter unit and the RDCU-12C drive control unit, which handles motor speed reference, torque control, and fieldbus communication. The RDCU-12C relies on a stable auxiliary supply — exactly what the PSM03 provides — to execute real-time PID loops and direct torque control (DTC) algorithms without interruption. Any instability in the auxiliary power rail can cause the RDCU-12C to reset mid-cycle, resulting in unplanned stops and wasted energy from restart transients.

On the I/O side, the AIMA-01 I/O extension module and AINT-02 inverter control board both draw from the same auxiliary bus that the PSM03 feeds. Maintaining clean power to these boards ensures that analog speed references from process controllers — such as a Siemens S7-1500 PLC or an ABB AC500 PLC — are accurately received and executed without signal degradation. This is particularly important in tension-controlled winding lines and multi-axis conveyor systems where even minor speed deviations translate into product defects or energy-wasting rework cycles.

For condition monitoring, the PSM03-powered ACS drive system integrates cleanly with ABB’s PSTX softstarter series and power quality analyzers such as the ABB M2M DIN-rail energy meter, enabling real-time kWh tracking per motor zone. When combined with the FPBA-01 PROFIBUS adapter or FENA-21 Ethernet/IP adapter mounted on the ACS drive, energy data can be streamed directly to a SCADA or MES platform for production-level energy accounting. This closes the loop between drive-level efficiency and plant-level energy KPIs — a requirement increasingly demanded by ISO 50001 maintenance planning audits.

In regenerative braking applications, the PSM03 supports stable operation of the ABB BRUE braking unit and associated braking resistor assemblies, ensuring that kinetic energy recovered during deceleration is properly managed rather than dissipated as excess heat — a direct reduction in cooling load and HVAC operating load within the electrical room.

Maintenance and Replacement Notes

Consider a bottling plant running six ACS800 drives on its filling and capping lines. Each drive controls a 15 kW induction motor operating at variable speeds depending on production rate. Without a reliable auxiliary power supply, the drives’ control boards are susceptible to brownout-induced faults during peak demand periods — causing unplanned stops that each consume 3–5 minutes of restart time and associated energy spikes from motor re-acceleration.

By installing the ABB 1KHL178016R0001F PSM03 as the dedicated auxiliary supply for each ACS800 drive, the plant eliminates control-board brownout faults entirely. The drives maintain continuous speed reference tracking, and the filling line achieves a measurable improvement in OEE (Overall Equipment Effectiveness) — typically 2–4% in facilities where auxiliary power instability was previously undiagnosed. Over a 12-month period, this translates to hundreds of additional production hours and a proportional reduction in energy cost per unit produced.

In HVAC applications — such as chiller pump drives in a commercial building management system — the PSM03 enables the ACS580 drive to maintain precise flow control without control-board resets. This allows the building automation system to execute variable air volume (VAV) and variable water volume (VWV) strategies continuously, achieving the Actual operating results depend on the installed system, load profile, and commissioning parameters.

For maintenance teams, the PSM03’s role in system stability also reduces the frequency of nuisance fault codes on the ACS drive’s keypad panel. Fewer faults mean fewer maintenance callouts, lower spare-parts consumption, and reduced technician labor hours — all of which contribute to a lower total cost of ownership. Combined with ZYPLC’s 12-month warranty and pre-shipment functional testing, the PSM03 represents a low-risk, high-return component for any ACS drive maintenance or upgrade program.

Product Sourcing FAQ

Q1: How does the 1KHL178016R0001F PSM03 contribute to operational stability in ACS drive systems?
The PSM03 provides stable auxiliary power to the ACS drive’s control electronics, preventing voltage-induced faults and unplanned stops. By keeping the drive’s control board running continuously and accurately, it enables the drive to execute operational-efficiency strategies — such as variable speed control and sleep mode — without interruption. Eliminating restart transients alone can reduce operating load by 1–3% in high-cycle applications.

Q2: Which ABB ACS drive models is the 1KHL178016R0001F PSM03 compatible with?
The PSM03 is designed for use within ABB’s ACS drive family, with confirmed compatibility across ACS550, ACS580, ACS800, and ACS880 series drives. For specific frame sizes or cabinet configurations, we recommend verifying the auxiliary supply voltage and connector type against your drive’s documentation. ZYPLC’s technical team can assist with compatibility confirmation prior to purchase.

Q3: What does the pre-shipment testing process cover, and what is included in the 12-month warranty?
Every 1KHL178016R0001F PSM03 shipped by ZYPLC undergoes a full functional test covering output voltage accuracy, load regulation, ripple and noise levels, and thermal stability under operating load. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team with replacement or repair turnaround designed to minimize production downtime.

Q4: Can the PSM03 be used as a direct replacement for a failed power supply module in an existing ACS drive installation?
Yes. The 1KHL178016R0001F PSM03 is a direct replacement module for compatible ACS drive cabinets. No drive reprogramming is required — the module slots into the existing auxiliary power position and restores normal drive operation immediately. For installations where the original PSM03 failure caused secondary damage to the RDCU control board or I/O modules, ZYPLC recommends a full auxiliary circuit inspection before returning the drive to service.
