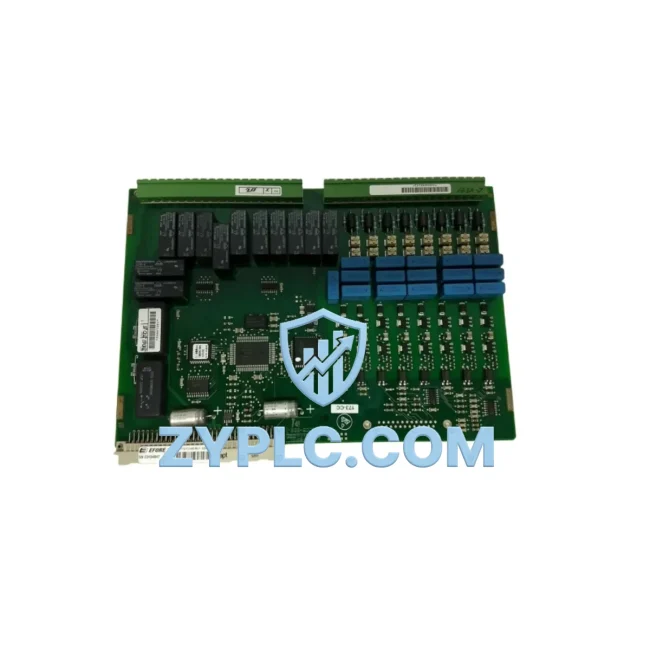

ABB 1MRK000173-CCR00 Relay Protection Module for REL Series Systems

ABB 1MRK000173-CCR00: Industrial Data Link for REL Series Smart Grid Networks

The ABB 1MRK000173-CCR00 EFORE is a high-performance relay protection module engineered for mission-critical industrial network environments. Designed as a core component within ABB’s REL Series protection platform, this module delivers seamless IEC 61850 protocol communication, enabling real-time data exchange between field protection devices, substation automation systems, SCADA platforms, and HMI workstations. In modern smart factories and power distribution networks, where data integrity and communication latency directly impact operational safety, the 1MRK000173-CCR00 serves as a reliable bridge across the entire automation data chain.

From the moment a fault signal is detected at the field level — whether from a current transformer, voltage sensor, or protection relay — the 1MRK000173-CCR00 processes and transmits that data upstream through standardized IEC 61850 GOOSE messaging and MMS (Manufacturing Message Specification) protocols. This ensures that protection commands, trip signals, and status reports reach the control room SCADA system and HMI displays within milliseconds, enabling operators to respond to grid anomalies before they escalate into system-wide failures.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated substation or smart factory environment, the ABB 1MRK000173-CCR00 operates at the heart of a layered communication architecture. At the process level, field devices such as ABB’s REF615 Feeder Protection Relay and RET615 Transformer Protection Relay continuously monitor electrical parameters and generate protection events. These events are transmitted via IEC 61850 GOOSE messages to the 1MRK000173-CCR00, which acts as the communication coordination module within the REL Series protection scheme.

Moving up to the bay level, the module interfaces with ABB’s COM600 Station Automation Gateway, which aggregates data from multiple protection relays and forwards structured datasets to the station-level SCADA system. Simultaneously, the ABB MicroSCADA Pro platform receives real-time alarm notifications, fault records, and breaker status updates, allowing control room engineers to visualize the entire network topology on a single HMI dashboard.

For remote I/O integration, the 1MRK000173-CCR00 supports connectivity with ABB’s AC500 PLC series, enabling logic-based automation responses to protection events — such as automatic load shedding or bus transfer switching — without requiring manual operator intervention. In distributed control architectures, the module also communicates with ABB Ability™ Edge Gateways, pushing fault data and energy metrics to cloud-based analytics platforms for predictive maintenance and asset health monitoring.

Drive systems such as the ABB ACS880 Variable Speed Drive can also be integrated into the protection network via the 1MRK000173-CCR00, ensuring that motor protection events are captured and correlated with upstream feeder protection data. This cross-device data correlation is essential for root cause analysis in industrial facilities where motor faults can trigger cascading protection operations across multiple feeders.

Power quality sensors and merging units — including ABB’s SAM600 Process Bus Merging Unit — feed sampled measured values (SMV) directly into the protection module, enabling high-speed differential protection and distance protection functions that respond to fault conditions in under 20 milliseconds. This level of communication speed is only achievable through the IEC 61850 process bus architecture that the 1MRK000173-CCR00 is specifically designed to support.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy protection relays may communicate via MODBUS RTU or DNP3, while newer IEC 61850-compliant devices operate on Ethernet-based networks. The ABB 1MRK000173-CCR00 EFORE addresses this protocol heterogeneity by supporting multi-protocol communication, acting as a gateway that bridges legacy serial communication with modern IEC 61850 Ethernet networks.

Data silos — where protection data, energy metering data, and control system data exist in separate, non-communicating systems — are eliminated through the module’s ability to aggregate and normalize data from multiple sources into a unified IEC 61850 data model. This unified data stream is then made available to SCADA systems, historian databases, and HMI platforms simultaneously, enabling true production line transparency and real-time operational visibility.

Remote monitoring and diagnostics are significantly enhanced by the 1MRK000173-CCR00’s support for remote engineering access via IEC 61850 MMS. Maintenance engineers can remotely retrieve fault records, disturbance recordings, and event logs without dispatching field personnel, reducing maintenance costs and minimizing system downtime. For facilities operating across multiple geographic locations, this remote diagnostic capability is essential for maintaining consistent protection system performance.

System scalability is another key advantage. As industrial facilities expand their electrical infrastructure — adding new feeders, transformers, or distributed generation assets — the 1MRK000173-CCR00 can be integrated into the existing IEC 61850 network without requiring changes to the SCADA communication architecture. New protection devices are simply added to the IEC 61850 logical node structure, and their data automatically becomes available to all connected systems.

All units are fully tested prior to shipment, with comprehensive factory acceptance testing (FAT) documentation available upon request. Stock is maintained for shipment arranged after confirmation, and each unit is covered by a warranty terms confirmed during quotation from the date of delivery, ensuring operational confidence for critical infrastructure deployments.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 1MRK000173-CCR00 support?
The 1MRK000173-CCR00 EFORE primarily supports IEC 61850 (GOOSE and MMS), with additional compatibility for MODBUS TCP and DNP3. This multi-protocol support enables integration with both legacy protection systems and modern IEC 61850 substation automation networks, making it suitable for brownfield upgrades and greenfield installations alike.

Q2: How does this module ensure network stability in high-interference industrial environments?
The ABB REL Series protection modules are designed to operate reliably in electrically noisy industrial environments, with EMC compliance to IEC 61000 standards. The IEC 61850 GOOSE messaging protocol includes built-in redundancy mechanisms, and the module supports RSTP (Rapid Spanning Tree Protocol) for network redundancy, ensuring continuous communication even in the event of a single network link failure.

Q3: Can the 1MRK000173-CCR00 be integrated with existing SCADA and HMI systems?
Yes. The module is fully compatible with IEC 61850 Ed.1 and Ed.2 compliant SCADA systems, including ABB MicroSCADA Pro, Siemens SICAM, and GE Grid Solutions platforms. Standard IEC 61850 MMS communication ensures that the module’s data model is accessible to any compliant SCADA or HMI system without requiring custom drivers or middleware.

Q4: What warranty and pre-shipment testing is provided?
Every ABB 1MRK000173-CCR00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment. All units undergo pre-shipment functional testing to verify communication interfaces, protocol operation, and hardware integrity. Test reports and original manufacturer documentation are available upon request to support your incoming inspection and commissioning processes.

—
