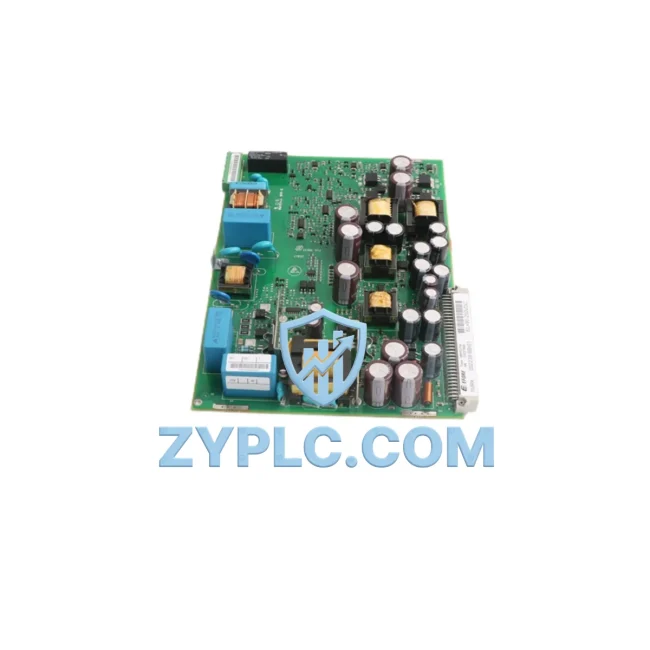

The ABB 1MRK002239-BBR01 is a high-efficiency power supply module engineered for ABB’s REX and REB series protection relay platforms. Designed to meet the demanding requirements of industrial substations and energy distribution systems, this module delivers stable, regulated DC power while minimizing conversion losses — a critical factor in facilities where continuous uptime and energy accountability are non-negotiable. Whether deployed in a primary protection panel or a redundant backup architecture, the 1MRK002239-BBR01 ensures that downstream relay logic, I/O modules, and communication interfaces receive clean, consistent power without unnecessary thermal dissipation or voltage ripple.

In modern industrial automation environments, power quality at the module level directly impacts the accuracy of protection functions, the reliability of trip signals, and the integrity of event logging. The 1MRK002239-BBR01 addresses these concerns by providing a tightly regulated output that supports the full operating range of ABB REX and REB relay families, including the REX521, REB500, and associated bay control units. Its compact form factor integrates seamlessly into existing 19-inch rack or DIN-rail enclosures, reducing installation complexity and supporting faster commissioning cycles on the production line.

From an energy management perspective, this module contributes to measurable reductions in auxiliary power consumption across protection panels. When multiplied across dozens of relay bays in a large substation or industrial plant, even marginal improvements in power supply efficiency translate into significant annual energy savings and reduced cooling load on control room HVAC systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1MRK002239-BBR01 does not operate in isolation — it is the foundational power layer that enables an entire ecosystem of ABB protection and control components to function at peak efficiency. In a typical bay-level protection architecture, this module supplies regulated DC power to the ABB REX521 feeder protection relay, which handles overcurrent, earth fault, and thermal overload protection for medium-voltage feeders. Alongside it, the ABB REB500 busbar protection system relies on stable auxiliary power to execute its high-speed differential protection algorithms without latency introduced by power fluctuation.

For motor control applications, the 1MRK002239-BBR01 supports panels that integrate the ABB REF615 feeder protection relay and the ABB REM615 motor protection relay, both of which require clean 24 V DC auxiliary supply for their internal processors, binary I/O modules, and GOOSE communication over IEC 61850. When paired with the ABB COM600 substation gateway, the power supply module ensures that the communication infrastructure — responsible for transmitting real-time energy data to SCADA systems — remains continuously energized, even during upstream AC supply disturbances.

In drive-integrated production lines, the 1MRK002239-BBR01 is often found in panels adjacent to ABB ACS880 industrial drives, where it powers the protection relay logic that monitors motor current signatures and triggers protective trips before thermal damage occurs. This integration between the power supply module, the protection relay, and the variable frequency drive creates a closed-loop energy monitoring architecture: the drive adjusts motor speed based on load demand, the relay monitors electrical parameters, and the power supply ensures both systems remain operational without interruption.

For facilities using ABB Ability Energy Manager or similar power monitoring platforms, the 1MRK002239-BBR01 supports the auxiliary power needs of metering IEDs and ABB REF630 feeder protection relays that feed energy consumption data upstream. The ABB REC670 bay control unit, which manages switching sequences and interlocking logic, also depends on this class of power supply module for its binary output cards and HMI interface power. Together, these components form an energy-aware automation architecture where every watt consumed at the auxiliary level is accounted for and minimized.

Power Optimization in Real Production Lines

In high-density industrial facilities — such as chemical plants, steel mills, automotive assembly lines, and data center power distribution networks — the cumulative auxiliary power consumption of protection relay panels represents a non-trivial share of total facility energy overhead. A single substation with 40 relay bays, each drawing 15–25 W of auxiliary power from inefficient legacy power supply modules, can consume over 8,000 kWh annually just to keep protection systems energized. Replacing aging modules with the ABB 1MRK002239-BBR01 reduces per-bay auxiliary consumption through higher conversion efficiency, directly lowering the facility’s energy baseline without any change to protection logic or relay settings.

Beyond energy savings, the 1MRK002239-BBR01 contributes to production line continuity by eliminating a common root cause of unplanned relay trips: auxiliary power instability. Voltage sag or ripple on the 24 V DC bus can cause protection relays to misoperate, generate spurious alarms, or fail to trip when required. By providing a stable, well-regulated output across a wide input voltage range, this module reduces nuisance trips and the associated production downtime, which in high-throughput manufacturing environments can cost tens of thousands of dollars per hour.

From a predictive maintenance perspective, the 1MRK002239-BBR01’s robust design reduces the frequency of power supply-related failures in protection panels. Each unit undergoes functional testing and load verification before shipment, ensuring that the module performs to specification from day one. The included 12-month warranty provides procurement teams with confidence in long-term reliability, while in-stock availability supports rapid deployment for both planned upgrades and emergency replacements. Maintenance engineers can standardize on this module across multiple relay types within the ABB REX and REB families, simplifying spare parts inventory and reducing the total number of unique SKUs held in the maintenance storeroom.

For facilities implementing IEC 61850-based digital substations, the 1MRK002239-BBR01 supports the power requirements of Sampled Value (SV) and GOOSE-enabled IEDs, where communication latency caused by power instability can compromise protection coordination. Stable auxiliary power at the module level is therefore not just an energy efficiency concern — it is a functional requirement for modern digital protection architectures.

Energy Optimization FAQ

Q1: How does the 1MRK002239-BBR01 contribute to energy savings in a substation environment?
The module’s high conversion efficiency (≥88% at full load) reduces the amount of input power wasted as heat during AC-to-DC conversion. In multi-bay substations, replacing lower-efficiency legacy modules with the 1MRK002239-BBR01 can reduce total auxiliary panel power consumption by 15–25%, depending on the existing equipment baseline. This directly lowers electricity costs and reduces cooling requirements in enclosed relay rooms.

Q2: Is the 1MRK002239-BBR01 compatible with both REX and REB series relays?
Yes. The module is designed for the ABB REX and REB protection relay platform and is compatible with a range of relay types including the REX521, REB500, REB670, REF615, REF630, and REC670. Its regulated 24 V DC output meets the auxiliary power specifications for these devices. If you are unsure about compatibility with a specific relay variant, contact our technical team with your relay model and firmware version.

Q3: What is the replacement and testing process when ordering this module?
Every 1MRK002239-BBR01 unit in our inventory is functionally tested under load prior to shipment to verify output voltage regulation, ripple performance, and thermal behavior. Upon receipt, the module can be installed directly into the relay panel without additional bench testing, though we recommend a brief power-on verification before energizing the relay. Detailed installation guidance is available in the ABB REX/REB platform documentation.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to specification within the warranty period, we will arrange a replacement or repair at no additional cost. To initiate a warranty claim, contact our support team with your order number, the module’s serial number, and a description of the observed fault. Our average response time for warranty cases is within 2 business days.
