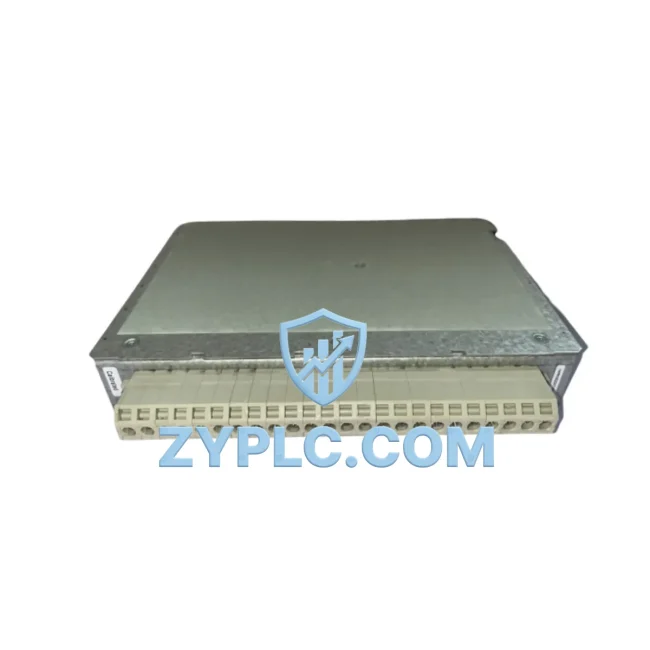

ABB 1MRK002247-ARR01 Protection Relay for RET 500 Automation
The ABB 1MRK002247-ARR01 is a transformer relay module (TRM) designed for the RET 500 series of numerical protection relays. In modern industrial power distribution and energy-intensive manufacturing environments, transformer protection is not merely a safety function — it is a critical lever for energy efficiency, equipment utilization, and production continuity. By ensuring that power transformers operate within precise electrical boundaries, the 1MRK002247-ARR01 directly reduces unplanned downtime caused by fault-induced downtime, unplanned switching events, and thermal overload conditions that degrade transformer efficiency over time.
Product Specification Table
| Parameter |
Specification |
| SKU / Part Number |
1MRK002247-ARR01 |
| Brand / Series |
ABB / RET 500 |
| Module Type |
Transformer Relay Module (TRM) |
| Power Consumption |
Low-burden auxiliary input design, optimized for minimal self-consumption |
| Operating Efficiency |
High-accuracy differential and overcurrent protection; reduces fault clearance time to minimize energy loss events |
| Compatible Systems |
ABB RET 500 series, MicroSCADA Pro, ABB 800xA DCS, IEC 61850 GOOSE networks |
| Application Environment |
Power substations, industrial transformer bays, renewable energy step-up stations, heavy manufacturing |
| Value |
Prevents transformer thermal degradation; reduces reactive power losses; shortens fault-to-clearance cycle |
| Origin |
Sweden (SE) |
| Warranty |
12-Month Warranty — all units pre-shipment tested |
System Compatibility and Application
The 1MRK002247-ARR01 does not operate in isolation. In a well-engineered industrial power architecture, it functions as the protective intelligence layer within a broader industrial control ecosystem. When integrated with the ABB RET 500 main protection unit, the TRM module enables differential protection, restricted earth fault (REF) detection, and overcurrent supervision — all of which are essential for maintaining transformer health and minimizing reactive energy losses in high-load production environments.
On the control side, the relay communicates over IEC 61850 GOOSE messaging, enabling near-instantaneous trip signal coordination with upstream and downstream switchgear, including ABB REF 615 feeder protection relays and ABB REX 521 multi-function protection units. This communication architecture eliminates the latency associated with hardwired intertripping schemes, reducing the energy dissipated during fault clearance windows.
For facilities running ABB MicroSCADA Pro or the ABB 800xA distributed control system, the 1MRK002247-ARR01 feeds real-time transformer status data — including differential current, harmonic restraint values, and thermal model outputs — directly into the supervisory layer. This allows energy managers to monitor transformer loading efficiency, identify periods of reactive power imbalance, and schedule maintenance before efficiency-degrading faults occur.
In drive-intensive production lines where ABB ACS880 variable frequency drives power large induction motors, transformer loading profiles fluctuate significantly with production rhythm. The RET 500 TRM module’s thermal overload model continuously tracks these load cycles, providing early warning when transformer utilization approaches efficiency-degrading thresholds. This predictive capability allows plant operators to adjust drive ramp rates or redistribute loads across transformer banks, maintaining optimal energy throughput without sacrificing production pace.
Power quality monitoring devices such as the ABB M2M power meter series can be integrated alongside the RET 500 system to provide granular kWh, kVAR, and power factor data at the transformer secondary. When this data is correlated with the protection relay’s event logs, maintenance teams gain a complete picture of energy efficiency trends — enabling targeted interventions that reduce both energy costs and unplanned downtime.
For facilities with ABB AC500 PLCs managing production line sequencing, the relay’s binary output contacts and IEC 61850 reporting blocks can be mapped directly to PLC input modules, enabling automated load-shedding routines when transformer loading exceeds predefined efficiency thresholds. This closed-loop maintenance planning approach — from the 1MRK002247-ARR01 TRM through the AC500 PLC to the ACS880 drive — represents a complete, integrated maintenance planning chain.
Maintenance and Replacement Notes
In heavy manufacturing environments — steel rolling mills, cement plants, chemical processing facilities, and large-scale food and beverage operations — power transformers are the backbone of energy distribution. A single unprotected transformer fault can trigger cascading production shutdowns lasting hours, with energy restart costs that dwarf the cost of the protection hardware itself. The ABB 1MRK002247-ARR01 addresses this risk at its root.
By providing high-speed differential protection with second-harmonic restraint (to prevent false trips during transformer energization), the TRM module ensures that legitimate faults are cleared in under 20 milliseconds, while inrush-related nuisance trips — which waste energy through unnecessary restart cycles — are effectively eliminated. In facilities where transformer re-energization requires coordinated motor restart sequences across multiple ABB ACS580 drives and ABB REF 615 feeder relays, avoiding nuisance trips directly translates to measurable operational stability and improved production line OEE (Overall Equipment Effectiveness).
The module’s restricted earth fault (REF) protection function is particularly valuable in facilities with high-resistance grounded systems, where incipient winding faults can persist undetected for extended periods, gradually degrading transformer insulation and increasing core losses. Early detection and clearance of these faults — enabled by the 1MRK002247-ARR01 — prevents the slow energy efficiency decline that accompanies insulation degradation, preserving transformer performance across its full operational lifespan.
From a predictive maintenance perspective, the RET 500 system’s thermal model — fed by the TRM module’s current measurement inputs — provides a continuous estimate of transformer winding temperature. This data, when trended over time via ABB MicroSCADA Pro, allows maintenance planners to schedule transformer inspections and oil sampling during planned production downtime windows, rather than reacting to emergency failures. The result is a measurable reduction in unplanned downtime energy costs and a significant improvement in transformer asset utilization rates.
All units of the 1MRK002247-ARR01 supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing, and covered by a 12-month warranty. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and urgent replacement requirements.
Product Sourcing FAQ
Q1: How does the 1MRK002247-ARR01 contribute to operational stability in a transformer protection application?
The TRM module enables precise differential and earth fault protection that minimizes fault clearance time, preventing prolonged energy dissipation during fault conditions. Its thermal model also helps operators avoid efficiency-degrading overload conditions, preserving transformer performance and reducing reactive power losses over the long term.
Q2: Is the 1MRK002247-ARR01 compatible with IEC 61850-based substation automation systems?
Yes. The ABB RET 500 series, including the 1MRK002247-ARR01 TRM module, supports IEC 61850 GOOSE messaging and reporting, making it fully compatible with modern digital substation architectures, including those built around ABB MicroSCADA Pro and ABB 800xA. It can also interface with third-party IEC 61850 clients and gateways.
Q3: Can this module replace an existing TRM unit in a legacy RET 500 installation?
The 1MRK002247-ARR01 is designed as a direct replacement module for compatible RET 500 configurations. Before installation, it is recommended to verify the existing RET 500 firmware version and hardware revision to confirm compatibility. ZYPLC’s technical team can assist with compatibility verification prior to purchase.
Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All 1MRK002247-ARR01 units supplied by ZYPLC undergo pre-shipment functional testing covering module initialization, communication interface verification, and input/output channel checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported directly through ZYPLC’s after-sales team.
