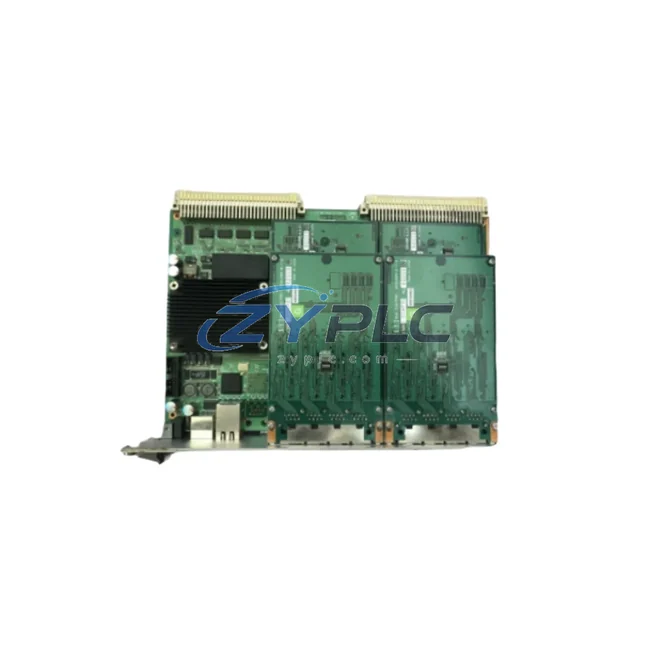

ABB 1MRK002247-CG Transformer Input Module RET 670

ABB 1MRK002247-CG: Industrial Data Link for RET 670 Protection Systems

The ABB 1MRK002247-CG is a precision-engineered Transformer Input Module designed for seamless integration within the RET 670 protection relay platform — one of ABB’s most advanced solutions for transformer differential protection and bay-level automation. In modern smart factory and substation environments, where real-time data integrity is non-negotiable, this module serves as a critical node in the industrial data chain, bridging analog transformer signals with digital protection logic and upstream communication networks.

From the moment a transformer event occurs — whether a differential fault, overload condition, or thermal alarm — the 1MRK002247-CG captures the analog input signals and converts them into structured digital data that the RET 670 relay can process, evaluate, and transmit across the substation communication backbone. This signal-to-data conversion is the foundation of every downstream action: SCADA alerts, HMI visualization, remote diagnostics, and automated protection tripping.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated substation or smart factory environment, the ABB 1MRK002247-CG does not operate in isolation — it is one link in a continuous, high-speed industrial data chain. The data flow begins at the transformer terminals, where current and voltage signals are acquired by this input module and fed into the RET 670 relay’s protection logic engine. The relay then evaluates these signals against pre-configured protection thresholds and, when necessary, issues trip commands or generates GOOSE messages across the IEC 61850 Ethernet network.

These GOOSE messages are received by peer devices on the same substation LAN — including the ABB REF 630 feeder protection relay and the ABB REC 670 bay control unit — enabling coordinated, millisecond-level protection responses without relying on hardwired intertripping. Simultaneously, the MMS (Manufacturing Message Specification) layer of IEC 61850 carries structured event and measurement data to the ABB COM600 substation gateway, which aggregates data from multiple IEDs and forwards it to the plant-level SCADA system via DNP3 or IEC 60870-5-104.

At the SCADA and HMI layer — typically running on platforms such as ABB Ability System 800xA or third-party SCADA software — operators receive live transformer status, differential current measurements, alarm events, and protection operation logs. The RTU560 remote terminal unit can further extend this data reach to control centers over WAN links, enabling remote diagnostics and asset health monitoring without on-site intervention.

For installations requiring time synchronization across the protection network, the RET 670 platform supports IEEE 1588 PTP (Precision Time Protocol), ensuring that event timestamps from the 1MRK002247-CG input module and all connected IEDs are aligned to microsecond accuracy — a critical requirement for post-fault analysis and sequence-of-events recording. Industrial Ethernet switches such as the ABB AF100 series or third-party IEC 61850-compliant managed switches provide the network infrastructure that carries all this data with deterministic latency and redundancy via RSTP or PRP/HSR ring topologies.

In drive and motor protection applications within the same facility, the ABB ACS880 variable frequency drive may share the same IEC 61850 network segment, reporting drive status and energy consumption data to the same SCADA platform — demonstrating how the 1MRK002247-CG fits into a broader, unified industrial connectivity architecture that spans protection relays, drives, sensors, and control systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial and substation environments is data isolation — the condition where critical equipment operates on incompatible protocols, proprietary communication standards, or legacy hardwired architectures that prevent real-time data sharing across the plant. The ABB 1MRK002247-CG, as part of the RET 670 IEC 61850 ecosystem, directly addresses this challenge.

By standardizing on IEC 61850 — the global standard for substation communication — the RET 670 platform with the 1MRK002247-CG module eliminates the need for protocol-specific gateways between protection devices. GOOSE messaging replaces hardwired binary signals, reducing wiring complexity and enabling faster, software-configurable interlocking logic. This means that when a transformer differential fault is detected, the protection response is communicated digitally across the network in under 4 milliseconds — far faster than conventional relay-to-relay wiring schemes.

For facilities transitioning from legacy SCADA architectures to modern IEC 61850-based substation automation, the COM600 gateway provides backward compatibility with older DNP3 and Modbus-based master stations, ensuring that the 1MRK002247-CG and RET 670 can be integrated into existing control center infrastructure without a full system replacement. This phased integration approach reduces capital expenditure while progressively improving data transparency across the production line.

Remote monitoring and diagnostics are further enhanced through the RET 670’s built-in web server and IEC 61850 reporting services, which allow maintenance engineers to access relay status, disturbance records, and protection settings from any networked workstation — eliminating the need for on-site visits for routine diagnostics. Combined with the warranty terms confirmed during quotation and pre-shipment functional testing included with every 1MRK002247-CG unit, this module delivers both operational reliability and long-term support assurance for critical infrastructure projects.

Industrial Connectivity FAQ

Q1: Does the ABB 1MRK002247-CG support IEC 61850 GOOSE messaging for protection interlocking?
Yes. The 1MRK002247-CG is a core input module of the RET 670 platform, which fully supports IEC 61850 including GOOSE (Generic Object Oriented Substation Event) messaging. GOOSE enables high-speed, peer-to-peer communication between protection IEDs on the same Ethernet LAN, replacing traditional hardwired binary signals for interlocking and protection coordination with sub-4ms latency.

Q2: Is the 1MRK002247-CG compatible with third-party SCADA systems and HMI platforms?
Yes. The RET 670 communicates via standard IEC 61850 MMS and GOOSE protocols, which are supported by all major SCADA platforms. For legacy systems using DNP3, IEC 60870-5-104, or Modbus, the ABB COM600 or RTU560 gateway can be used to bridge protocols, ensuring full compatibility with existing control center infrastructure.

Q3: What is the network latency and communication stability of the RET 670 with the 1MRK002247-CG module?
The RET 670 platform is designed for deterministic, high-reliability substation communication. GOOSE message transmission latency is typically under 4ms on a properly configured IEC 61850 LAN. Network redundancy is supported via RSTP, PRP (Parallel Redundancy Protocol), and HSR (High-availability Seamless Redundancy), ensuring zero-packet-loss failover in ring topologies.

Q4: Does every 1MRK002247-CG unit come with a warranty and pre-shipment testing?
Yes. Every ABB 1MRK002247-CG unit supplied by ZYPLC includes a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify communication integrity, input signal accuracy, and module compatibility with the RET 670 platform. Availability is confirmed via RFQ for shipment arranged after confirmation with global shipping support.
