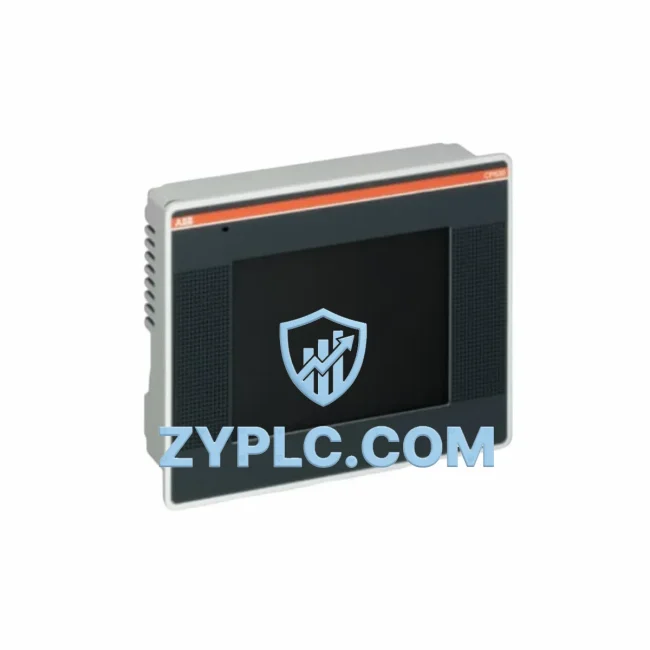

The ABB CP630-WEB 1SAP530200R0001 is a high-performance Web-based HMI control panel engineered for the ABB AC500 PLC platform. Designed to serve as the central visualization and control interface in energy-conscious industrial environments, this panel enables operators to monitor real-time power consumption, track drive efficiency, and respond to process deviations before they escalate into costly downtime. With a 5.7-inch TFT display, integrated Ethernet connectivity, and full compatibility with the AC500 automation ecosystem, the CP630-WEB transforms raw process data into actionable energy intelligence — directly on the production floor.

In modern manufacturing, energy waste rarely announces itself. It accumulates silently through inefficient motor ramp-up cycles, undetected idle states, and poorly timed production sequences. The CP630-WEB addresses this by providing operators with a live window into the automation layer — displaying drive status, I/O feedback, alarm states, and energy trend data in a format that supports fast, informed decisions. When paired with ABB’s AC500 PM573 or PM583 CPU modules, the panel becomes a real-time energy dashboard capable of surfacing inefficiencies that traditional SCADA systems miss at the field level.

Sourced directly from verified supply channels, each CP630-WEB 1SAP530200R0001 unit shipped by ZYPLC undergoes pre-shipment functional testing to confirm display integrity, communication port operation, and firmware stability. All units are covered by a 12-month warranty and are available for immediate dispatch from in-stock inventory.

Efficiency Performance Table

Energy-Aware Automation Architecture

The CP630-WEB 1SAP530200R0001 is most effective when deployed as part of a tightly integrated automation architecture. In a typical energy-optimized production cell, the panel connects directly to an ABB AC500 PM573-ETH CPU, which coordinates logic execution across distributed I/O modules such as the DC532 digital I/O module and the AX522 analog I/O module. These modules feed real-time field signals — motor current draw, valve positions, conveyor load — back to the CP630-WEB for operator visualization.

On the drive side, the CP630-WEB works in conjunction with ABB ACS580 variable speed drives and ACS355 compact drives to display active frequency setpoints, output current, and energy consumption per production cycle. When a drive enters an inefficient operating band — for example, running at full speed during a low-demand phase — the HMI panel surfaces this condition immediately, allowing operators to intervene or trigger an automated setpoint adjustment via the AC500 PLC logic.

For servo-driven axes, the panel integrates with ABB MicroFlex e150 servo drives through the AC500 motion control layer, enabling visualization of torque utilization and cycle time per axis. This is particularly valuable in packaging and assembly lines where servo efficiency directly impacts throughput energy ratios. The CP630-WEB also supports communication with ABB B23 DIN-rail energy meters via Modbus RTU, allowing energy consumption data from individual machine zones to be displayed alongside process variables on the same HMI screen.

At the network level, the panel’s Ethernet port supports integration with ABB Ability™ Energy Manager and third-party SCADA platforms via OPC-UA or Modbus TCP, enabling plant-wide energy data aggregation. The SD card slot on the CP630-WEB supports local data logging of energy and process variables, providing a local backup for compliance reporting and trend analysis even when network connectivity is interrupted.

Power Optimization in Real Production Lines

In food and beverage processing plants, the CP630-WEB 1SAP530200R0001 has been deployed to monitor and control conveyor motor drives across multi-zone production lines. By displaying real-time motor load percentages and enabling operators to adjust conveyor speed setpoints directly from the HMI, facilities have reduced conveyor motor energy consumption during low-throughput periods by eliminating the default practice of running all zones at maximum speed regardless of product flow.

In injection molding applications, the panel connects to the AC500 PLC controlling hydraulic pump drives. The HMI visualizes pump pressure demand cycles and highlights periods where the pump operates at full pressure during mold-open phases — a common source of unnecessary energy draw. Operators use the CP630-WEB interface to fine-tune pressure ramp profiles in the AC500 program, reducing peak power demand without affecting cycle time.

In HVAC and building automation contexts, the CP630-WEB serves as the local operator interface for air handling unit control systems built on the AC500 platform. It displays fan drive frequency, damper positions, and zone temperature setpoints, enabling maintenance teams to identify drives running above their optimal efficiency point and schedule corrective action before energy waste compounds. The panel’s alarm management system ensures that energy-related faults — such as a drive operating outside its rated efficiency band — are flagged immediately rather than discovered during monthly energy audits.

Across all these applications, the CP630-WEB contributes to predictive maintenance strategies by logging drive fault histories and process anomalies locally. Maintenance teams can review this data to identify patterns — such as a motor drawing progressively higher current over several weeks — and schedule intervention before failure occurs, avoiding both unplanned downtime and the energy penalty of running degraded equipment.

Energy Optimization FAQ

Q1: How does the CP630-WEB 1SAP530200R0001 contribute to measurable energy savings on the production line?
The CP630-WEB provides operators with real-time visibility into drive states, motor load, and process variables that directly influence energy consumption. By surfacing inefficient operating conditions — such as drives running at full speed during low-demand phases or motors idling under load — the panel enables timely setpoint corrections that reduce unnecessary energy draw. When integrated with ABB ACS580 drives and AC500 energy monitoring logic, the system supports data-driven adjustments that compound into significant efficiency gains over time.

Q2: Is the CP630-WEB 1SAP530200R0001 compatible with existing AC500 PLC installations?
Yes. The CP630-WEB is designed as a native HMI component for the ABB AC500 platform and communicates directly with AC500 CPU modules including the PM573-ETH and PM583-ETH via Ethernet. It is also compatible with third-party controllers and SCADA systems through Modbus TCP and RS-232 interfaces, making it suitable for retrofit installations where the existing control infrastructure is not exclusively ABB.

Q3: Can the CP630-WEB replace an older ABB CP600 series panel without hardware modifications?
In most cases, yes. The CP630-WEB shares the same mounting cutout dimensions as other CP600 series panels, simplifying panel replacement in existing enclosures. Project files created in ABB’s Panel Builder 600 software are transferable, reducing engineering time for retrofit projects. ZYPLC recommends verifying firmware compatibility with the connected AC500 CPU version before deployment.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every CP630-WEB 1SAP530200R0001 unit supplied by ZYPLC is tested prior to shipment to verify display function, communication port operation, and power supply integrity. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units that develop faults within the warranty period are replaced or repaired at no additional cost. ZYPLC maintains in-stock inventory of the CP630-WEB to support rapid replacement dispatch when warranty claims require immediate production continuity.
