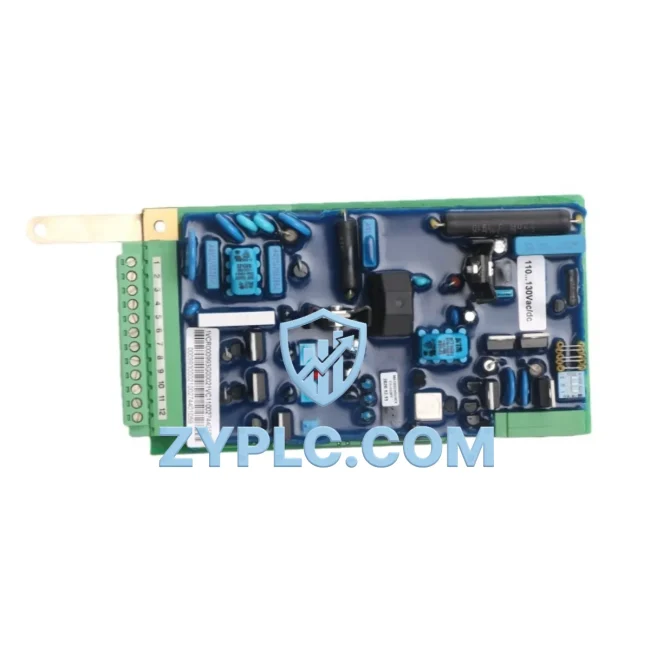

ABB 1VCR000993G00051 System-Ready Power Supply for Unitrol 1000 Architecture

ABB 1VCR000993G00051 System-Ready Power Supply for Unitrol 1000 Architecture

The ABB 1VCR000993G00051 is a dedicated power supply board engineered for deployment within the ABB Unitrol 1000 automatic voltage regulator (AVR) and excitation control platform. In modern industrial automation and power generation environments, the integrity of the control architecture depends not only on the intelligence of the CPU or the responsiveness of the I/O layer, but equally on the stability and precision of the power supply infrastructure. This board occupies a foundational role in the Unitrol 1000 system hierarchy, delivering regulated, conditioned power to the control electronics that govern generator excitation, voltage stability, and reactive power management.

When integrated into a complete Unitrol 1000 excitation system, the 1VCR000993G00051 works in close coordination with the main control board, the firing pulse unit, the measurement and protection modules, and the field current regulator. Its role is not passive — it actively conditions incoming auxiliary supply voltage and distributes stable DC rails to the logic and signal processing layers, ensuring that upstream disturbances in the plant auxiliary bus do not propagate into the sensitive control circuitry. This is particularly critical in power stations, substations, and industrial drive applications where grid transients are common and control continuity is non-negotiable.

From a system architecture perspective, the 1VCR000993G00051 sits at the intersection of the power layer and the control layer. It receives input from the station auxiliary supply and provides the regulated outputs required by the Unitrol 1000’s internal modules. This contextual integration capability means that the board is not a standalone component — it is a system enabler, and its correct specification and installation directly affect the performance of every module above it in the control hierarchy.

Architecture Specification Table

Coordinated Control System Design

The 1VCR000993G00051 does not operate in isolation. Its value is realized only when it is correctly positioned within a fully coordinated Unitrol 1000 excitation system. A typical deployment involves the following coordinated components:

At the control layer, the Unitrol 1000 main control board (such as the ABB 1VCR000993G00041 or equivalent CPU module) receives voltage and reactive power setpoints from the plant DCS or SCADA system. The 1VCR000993G00051 power supply board ensures that this control board receives clean, stable DC power regardless of auxiliary bus fluctuations, preventing spurious resets or measurement drift that could compromise AVR loop stability.

At the measurement and protection layer, the Unitrol 1000 integrates voltage transformer (VT) and current transformer (CT) input modules — such as the ABB 1VCR000993G00021 measurement board — which feed real-time generator terminal voltage and stator current data into the AVR algorithm. The power supply board supports the analog front-end circuitry of these measurement modules, where supply noise directly translates into measurement error.

At the firing and power electronics layer, the thyristor firing pulse unit (FPU) — typically the ABB 1VCR000993G00031 or a compatible firing board — generates the gate pulses that control the excitation thyristor bridge. The timing precision of these pulses depends on a stable clock and logic supply, both of which are sourced from the 1VCR000993G00051.

At the communication and network layer, the Unitrol 1000 may interface with plant-level systems via a PROFIBUS DP gateway module or Modbus RTU communication card, enabling remote setpoint adjustment, fault logging, and status monitoring. These communication modules draw their operating power from the internal supply rails maintained by the 1VCR000993G00051.

At the human-machine interface layer, a local ABB CP600 HMI panel or equivalent operator terminal may be connected to the Unitrol 1000 for local parameter setting, trend visualization, and alarm acknowledgment. Stable power to the control board ensures that HMI communication remains uninterrupted during load transients.

At the redundancy and backup layer, installations requiring high availability may deploy a dual-channel Unitrol 1000 configuration with automatic channel switchover. In such architectures, each channel maintains its own 1VCR000993G00051 power supply board, ensuring that a failure in one channel’s power supply does not affect the standby channel’s readiness.

Additional components commonly deployed alongside the 1VCR000993G00051 include ABB excitation transformer modules, field suppression resistor assemblies, and terminal block interface boards that bridge the Unitrol 1000 backplane to field wiring. Together, these components form a complete, validated excitation control architecture suitable for synchronous generators from 1 MVA to several hundred MVA.

Application in Layered Automation Systems

The ABB 1VCR000993G00051 finds application across a wide range of industries where synchronous generator excitation control is critical to operational continuity and power quality.

In thermal and hydroelectric power generation, the Unitrol 1000 system — anchored by the 1VCR000993G00051 power supply board — governs terminal voltage regulation, power factor correction, and reactive power sharing between parallel generators. Stable excitation is essential for grid synchronization and for meeting utility interconnection requirements.

In oil and gas and petrochemical facilities, captive power plants and gas turbine generators rely on the Unitrol 1000 for island-mode operation and load-following capability. The power supply board’s ability to maintain regulated outputs under wide auxiliary voltage variation is particularly valued in these environments, where generator loading can change rapidly.

In mining and metals processing, large synchronous motors used for compressors, mills, and hoists are often controlled via static excitation systems architecturally similar to the Unitrol 1000. The 1VCR000993G00051 supports the power conditioning requirements of these high-demand applications.

In water and wastewater treatment, pump station generators and standby power systems benefit from the Unitrol 1000’s precise voltage regulation, with the 1VCR000993G00051 ensuring that control electronics remain operational during utility outages and generator start sequences.

In marine and offshore applications, where space is constrained and environmental conditions are demanding, the compact form factor and robust design of the Unitrol 1000 platform — supported by the 1VCR000993G00051 — make it a preferred choice for shipboard generator excitation control.

Architecture Engineering FAQ

Q1: Is the 1VCR000993G00051 compatible with all Unitrol 1000 variants, and can it be retrofitted into an existing installation?
The 1VCR000993G00051 is designed specifically for the ABB Unitrol 1000 platform. Compatibility depends on the specific hardware revision and firmware version of the installed Unitrol 1000 system. Before retrofitting, engineers should verify the board revision against the Unitrol 1000 hardware compatibility matrix available in the ABB technical documentation. In most cases, direct replacement is straightforward, but it is recommended to perform a functional test of the power supply rails after installation and before returning the excitation system to service. Our technical team can assist with compatibility verification prior to order.

Q2: What installation and commissioning steps are required when replacing the 1VCR000993G00051 in a live excitation system?
Replacement of the power supply board should be performed with the excitation system de-energized and the generator offline. The procedure involves isolating the auxiliary supply to the Unitrol 1000 cubicle, removing the faulty board, installing the replacement 1VCR000993G00051, and verifying output rail voltages with a calibrated multimeter before re-energizing the control electronics. Following power-up, the Unitrol 1000 self-diagnostic routine should be executed to confirm that all modules are receiving correct supply voltages. Commissioning records should be updated to reflect the board replacement, including the date, part number, and post-installation test results. Our 12-Month Warranty covers the replacement board from the date of dispatch.

Q3: How does the 12-Month Warranty apply, and what support is available for long-term maintenance planning?
All 1VCR000993G00051 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. In the event of a warranty claim, customers should contact our technical support team with the order reference, installation date, and a description of the observed fault. For long-term maintenance planning, we recommend holding at least one spare 1VCR000993G00051 on-site for critical excitation systems, given the lead times associated with OEM procurement. ZYPLC maintains stock of this and related Unitrol 1000 components to support rapid dispatch for both planned maintenance and emergency replacement scenarios.
