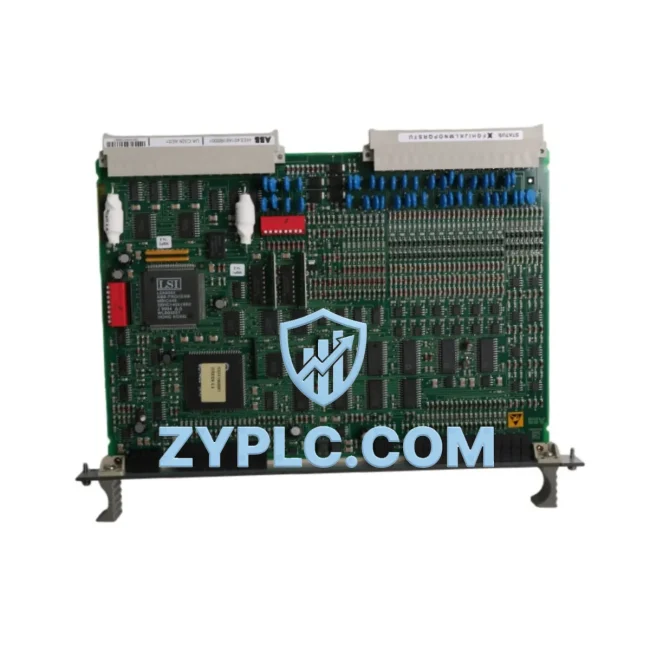

ABB HIEE401481R0001 UAC326AE01 Energy-Saving Analog I/O Card

ABB HIEE401481R0001 UAC326AE01 Energy-Saving Analog I/O Card: Precision Efficiency Control for Optimized HIEE Series Automation

The ABB HIEE401481R0001 UAC326AE01 is a high-performance analog input/output card engineered for demanding industrial automation environments where energy efficiency, signal accuracy, and system reliability are non-negotiable. As a core component of ABB’s HIEE series control architecture, this analog I/O card plays a pivotal role in bridging field-level process signals with the plant’s central control logic — enabling real-time energy monitoring, precise actuator control, and data-driven production optimization across continuous and discrete manufacturing lines.

In modern industrial facilities, uncontrolled energy consumption is often rooted in poor signal resolution, delayed feedback loops, and mismatched control responses. The HIEE401481R0001 UAC326AE01 addresses these inefficiencies at the hardware level by delivering high-resolution analog signal processing that allows controllers to respond faster, more accurately, and with less wasted energy per control cycle. Whether managing variable-speed drives, modulating control valves, or feeding real-time process data into energy management systems, this card ensures that every milliamp and millivolt of signal translates into actionable, efficiency-oriented control output.

Efficiency Performance Table

Energy-Aware Automation Architecture

The HIEE401481R0001 UAC326AE01 does not operate in isolation — it functions as a precision signal interface within a broader energy-aware automation architecture. In a typical ABB HIEE-based control system, this analog I/O card works in concert with the ABB AC500 PLC CPU modules to execute closed-loop control strategies that directly impact energy consumption at the field device level. The CPU processes the analog feedback signals delivered by this card and issues corrective output commands within milliseconds, eliminating the energy waste caused by over-actuation or delayed response.

On the drive side, the HIEE401481R0001 UAC326AE01 analog output channels are commonly wired to ABB ACS880 or ACS580 variable frequency drives (VFDs), where the 4–20 mA or 0–10 V signal precisely governs motor speed. This direct analog reference eliminates the need for intermediate signal converters and reduces latency in speed correction — a critical factor in applications such as pump pressure control, fan airflow regulation, and compressor load management, where even a 5% speed reduction can yield up to 15% energy savings due to the affinity laws governing centrifugal loads.

For energy monitoring and power quality analysis, the analog input channels of this card are frequently connected to ABB EQ meters or third-party power transducers that output standardized 4–20 mA current signals proportional to active power, reactive power, or power factor. This integration allows the ABB Freelance DCS or Symphony Plus distributed control system to log real-time energy consumption data at the process unit level — enabling energy KPI dashboards, shift-based consumption reports, and automated demand response actions without requiring a separate energy management gateway.

In servo-driven production lines, the HIEE401481R0001 UAC326AE01 complements ABB MicroFlex or MotiFlex servo drives by providing analog position or torque reference signals that synchronize multi-axis motion profiles. This tight analog coupling reduces inter-axis timing errors, shortens cycle times, and prevents the energy spikes associated with abrupt acceleration and deceleration in poorly coordinated servo systems. When paired with ABB CP600 HMI panels, operators gain real-time visibility into analog signal trends, allowing them to identify process drift before it escalates into energy-wasting instability or unplanned downtime.

The card’s compatibility with ABB S800 I/O and CI840 PROFIBUS communication interfaces further extends its role in distributed energy management architectures, where field-level analog data must be aggregated across multiple control nodes and transmitted to plant-level SCADA or MES systems for enterprise energy reporting and ISO 50001 compliance tracking.

Power Optimization in Real Production Lines

In real-world production environments, the HIEE401481R0001 UAC326AE01 delivers measurable energy and operational benefits across multiple dimensions of plant performance.

Reduced Motor Energy Waste: By providing a clean, high-resolution analog reference signal to variable frequency drives, this card eliminates the signal noise and quantization errors that cause VFDs to hunt — repeatedly overshooting and undershooting the target speed setpoint. Motor hunting is a significant but often overlooked source of energy waste in pump and fan applications. With the HIEE401481R0001 UAC326AE01 delivering a stable 4–20 mA reference, drives maintain steady-state operation at the optimal speed point, reducing unnecessary energy consumption and mechanical wear simultaneously.

Faster Closed-Loop Response: In temperature control, pressure regulation, and flow management applications, the speed of the analog feedback loop directly determines how efficiently energy is used. A slow or noisy analog signal forces the PID controller to use wider control bands and higher integral gains, resulting in larger corrective actions and more energy consumed per unit of process output. The high-resolution ADC of the HIEE401481R0001 UAC326AE01 tightens the feedback loop, allowing narrower PID bands, smaller corrective actions, and lower average energy consumption per production cycle.

Predictive Maintenance Enablement: The analog input channels of this card can be configured to monitor vibration transducer outputs, bearing temperature sensors, or motor current transformers — providing the raw data needed for condition-based maintenance strategies. By detecting gradual signal drift that indicates bearing wear, insulation degradation, or pump cavitation, maintenance teams can schedule interventions before failures occur, avoiding the energy spikes and production losses associated with emergency shutdowns and unplanned restarts.

Production Line Takt Optimization: In discrete manufacturing, the analog output channels of the HIEE401481R0001 UAC326AE01 can be used to modulate conveyor speeds, robotic arm torque limits, and press force profiles in real time based on upstream process conditions. This dynamic adjustment capability allows production lines to operate at the minimum energy level required to meet takt time targets — rather than running at fixed maximum capacity regardless of actual demand, which is the default behavior of systems without analog trim control.

Inventory Availability and Outgoing Test: Every HIEE401481R0001 UAC326AE01 unit shipped by ZYPLC undergoes a full functional outgoing test prior to dispatch, verifying analog channel accuracy, signal linearity, and backplane communication integrity. Units are held in climate-controlled storage and are available for immediate shipment, backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Energy Optimization FAQ

Q1: How does the HIEE401481R0001 UAC326AE01 contribute to measurable energy savings in a plant environment?
The card enables high-resolution closed-loop control by delivering accurate analog feedback signals to the PLC and precise reference signals to field actuators such as VFDs and control valves. This precision reduces control system hunting, tightens PID response bands, and allows drives to operate at optimal speed points — collectively reducing motor energy consumption by 5–20% in typical pump, fan, and compressor applications compared to systems using lower-resolution or noisy analog interfaces.

Q2: Is the HIEE401481R0001 UAC326AE01 compatible with ABB AC500 and Freelance DCS systems?
Yes. The HIEE401481R0001 UAC326AE01 is designed for ABB’s HIEE series control rack architecture, which is used across ABB AC500 PLC platforms, Freelance DCS, and Symphony Plus systems. It communicates via the HIEE internal backplane bus and can be integrated with PROFIBUS and MODBUS networks through appropriate communication interface modules such as the CI840 or CI854.

Q3: Can this card replace other ABB analog I/O modules, and what should I verify before substitution?
The HIEE401481R0001 UAC326AE01 (UAC326AE01 variant) should be verified against the original rack slot configuration, backplane bus version, and firmware compatibility of the host controller before substitution. ZYPLC’s technical team can assist with cross-reference verification. In many cases, this card is a direct replacement for earlier UAC326 variants, but channel count, signal range configuration, and rack addressing must be confirmed against the existing system documentation.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Prior to dispatch, each unit undergoes a full outgoing functional test that verifies analog input accuracy across the full signal range, analog output linearity, backplane communication integrity, and power supply regulation. Test records are available upon request. Units that do not pass the outgoing test are quarantined and not shipped.
