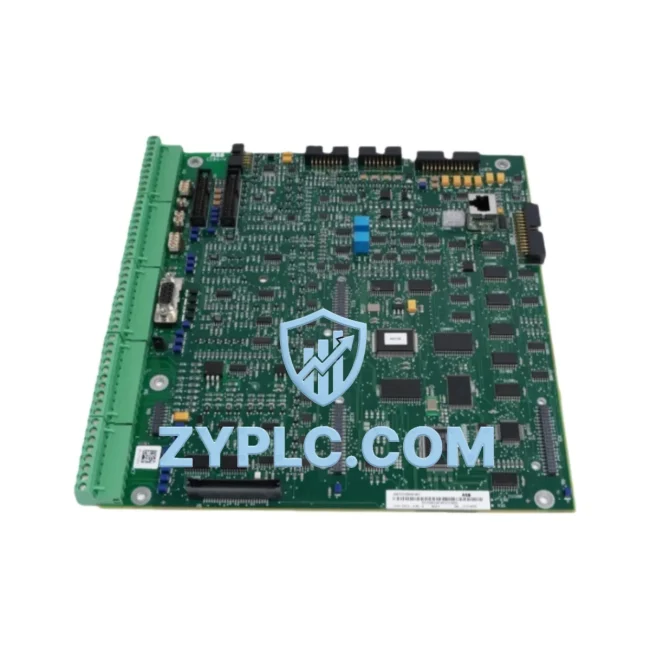

ABB 3ADT313900R1001 SDCS-CON-4 System-Ready Control Board for DCS800 Architecture

ABB 3ADT313900R1001 SDCS-CON-4 System-Ready Control Board for DCS800 Drive Architecture

The ABB SDCS-CON-4 (part number 3ADT313900R1001) is a high-performance control board module engineered specifically for the ABB DCS800 series of DC drives. Within a layered industrial automation architecture, this board occupies a critical position at the drive control layer — serving as the intelligence core that governs armature current regulation, field excitation control, speed feedback processing, and real-time communication with upstream controllers. Rather than functioning as a standalone component, the SDCS-CON-4 is designed to operate as an integrated node within a broader control system that spans from field-level sensors and actuators through to supervisory SCADA platforms and enterprise MES systems.

In modern industrial facilities — whether in steel rolling mills, paper production lines, mining hoists, marine propulsion systems, or large-scale water treatment plants — the DCS800 drive platform is frequently deployed in multi-drive configurations where system consistency, coordinated response, and long-term maintainability are paramount. The SDCS-CON-4 board enables this by providing a stable, field-proven control foundation that supports both standalone operation and tightly coupled multi-axis architectures. Its design reflects ABB’s commitment to modular, scalable drive engineering that reduces commissioning time and simplifies lifecycle management across large installations.

Architecture Specification Table

Coordinated Control System Design

The SDCS-CON-4 does not operate in isolation — its value is fully realized when integrated within a complete ABB DCS800 drive system and connected to the broader plant automation architecture. At the power conversion layer, the board interfaces directly with the SDCS-POW-4 power supply board, which provides the regulated internal voltages required for stable board operation. The SDCS-POW-4 and SDCS-CON-4 together form the core electronics assembly of the DCS800 drive, and their coordinated operation ensures that armature current control loops remain stable even under rapid load transients.

At the I/O layer, the SDCS-CON-4 connects to the SDCS-IOB-3 I/O extension board, which expands the available analog and digital I/O capacity for applications requiring multiple speed references, external fault inputs, or auxiliary relay outputs. This is particularly important in multi-motor drive systems where each DCS800 unit must respond to both local process signals and coordinated commands from a master controller.

For network communication, the SDCS-CON-4 supports connection to SDCS-COM-8 (PROFIBUS-DP) or SDCS-COM-9 (Modbus RTU) fieldbus adapter boards, enabling seamless integration with ABB AC500 PLCs, Siemens S7-300/S7-400 controllers, or Rockwell ControlLogix systems acting as network masters. This fieldbus connectivity allows the DCS800 drive to participate in coordinated multi-drive sequences, receive real-time speed and torque setpoints, and report diagnostic data back to the supervisory control layer without requiring dedicated hardwired signal cables for every parameter.

At the human-machine interface layer, the SDCS-CON-4 supports connection to the ABB CDP312R control panel, which provides local parameter access, fault history display, and manual speed reference adjustment. In larger installations, the CDP312R is often supplemented by an ABB CP600 HMI panel or a third-party SCADA terminal connected via OPC-UA or Modbus TCP, giving operators a unified view of all drive parameters across the production line.

For applications requiring high availability, the DCS800 platform supports redundant field excitation control through the SDCS-FEX-2 field excitation board, which works in conjunction with the SDCS-CON-4 to maintain precise field current regulation even during armature current transients. In steel mill and mining hoist applications where motor field weakening is used to extend the speed range, the coordination between the SDCS-CON-4 and SDCS-FEX-2 is essential for maintaining stable torque control across the full operating envelope.

Terminal connectivity within the drive cabinet is typically managed through Phoenix Contact or Weidmüller DIN-rail terminal blocks, which provide reliable signal distribution between the SDCS-CON-4 board connectors and field wiring. Proper terminal block selection and labeling is a key factor in reducing commissioning time and simplifying future maintenance interventions.

Application in Layered Automation Systems

Steel and Metal Processing: In rolling mill and wire drawing applications, the SDCS-CON-4 enables precise tension control between multiple DCS800 drives operating in a master-follower torque sharing configuration. The board’s fast current control loop response — typically less than 5 ms — ensures that inter-stand tension variations are corrected before they propagate to adjacent drive sections, maintaining product dimensional consistency and reducing scrap rates.

Mining and Hoisting: Mine hoist applications demand the highest levels of drive reliability and safety. The SDCS-CON-4 supports safe torque off (STO) functionality and integrates with external safety relay modules to implement hoist-specific safety functions including overspeed detection, slack rope monitoring, and emergency braking sequences. The board’s DDCS fiber optic communication port allows it to connect to ABB’s Master Follower system for synchronized multi-motor hoist drives.

Paper and Pulp Production: In paper machine drive sections, the SDCS-CON-4 participates in draw control systems where each drive section must maintain a precise speed ratio relative to adjacent sections. The board’s high-resolution encoder feedback processing — supporting up to 4096 pulses per revolution — provides the speed measurement accuracy required for tight draw control in tissue and fine paper applications.

Water and Wastewater Treatment: Pump and blower drive applications in water treatment plants benefit from the SDCS-CON-4’s support for process PID control, which allows the drive to regulate flow or pressure directly without requiring a separate process controller. Integration with plant SCADA systems via PROFIBUS-DP or Modbus RTU enables remote monitoring of drive status, energy consumption, and predictive maintenance indicators.

Chemical and Petrochemical: In hazardous area installations, the DCS800 drive with SDCS-CON-4 control board is often installed in pressurized or purged enclosures to meet ATEX or IECEx requirements. The board’s robust design and wide operating temperature range make it suitable for the demanding thermal environments found in refinery and chemical plant motor control centers.

Architecture Engineering FAQ

Q1: Is the SDCS-CON-4 (3ADT313900R1001) compatible with all DCS800 drive frame sizes, and can it be retrofitted into older DCS500 installations?
The SDCS-CON-4 is designed specifically for the ABB DCS800 series and is compatible with all DCS800 frame sizes from D1 through D8. It is not directly interchangeable with the earlier DCS500 series control boards (such as the SDCS-CON-2 or SDCS-CON-3), as the DCS800 uses a different backplane connector layout and firmware architecture. However, ABB offers a documented migration path from DCS500 to DCS800 that includes mechanical adapter kits and parameter conversion tools, allowing existing motor and transformer infrastructure to be retained while upgrading the drive electronics to the current generation platform.

Q2: What fieldbus options are available for integrating the SDCS-CON-4 into a PLC or DCS network, and how is the communication adapter installed?
The SDCS-CON-4 supports fieldbus communication through optional SDCS-COM-x adapter boards that plug into a dedicated slot on the control board. Available adapters include SDCS-COM-8 for PROFIBUS-DP, SDCS-COM-9 for Modbus RTU, and SDCS-COM-81 for DeviceNet. The adapter installation requires no special tools — the board is inserted into the COM slot and secured with two screws, after which the fieldbus node address and communication parameters are configured through the CDP312R panel or via the DriveWindow PC tool. Once configured, the drive appears as a standard fieldbus slave device to the PLC master, supporting both cyclic process data exchange and acyclic parameter read/write access.

Q3: What does the 12-Month Warranty cover, and what support is available for commissioning and long-term maintenance of the SDCS-CON-4?
The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. It includes board replacement or repair at no additional cost, along with technical support for fault diagnosis. For commissioning support, our engineering team provides pre-delivery parameter configuration assistance, wiring diagram review, and remote startup guidance via video call. For long-term maintenance, we recommend maintaining a spare SDCS-CON-4 board on-site for critical drive applications, as board-level replacement is the fastest path to restoring drive operation following a control electronics failure. Our team can also assist with firmware version verification and parameter backup procedures to ensure that a replacement board can be brought into service with minimal downtime.
