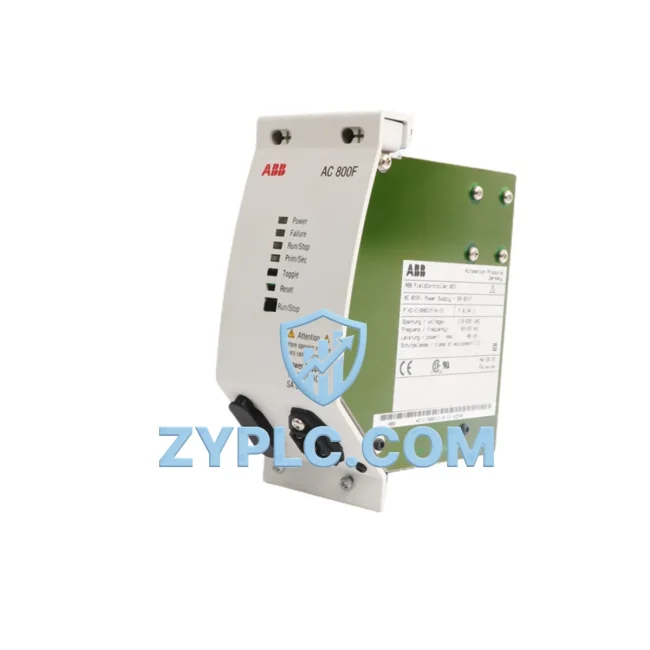

ABB 3BDH000011R1 SA801F Energy-Saving Power Supply AC800F

ABB 3BDH000011R1 SA801F Energy-Saving Power Supply AC800F: Efficiency Control and Production Line Optimization

The ABB 3BDH000011R1 (SA801F) is a high-efficiency power supply module engineered for the AC800F Freelance Distributed Control System (DCS). In energy-intensive industrial environments — from chemical processing and oil & gas to pulp and paper and power generation — unregulated or inefficient power delivery at the controller level is one of the most overlooked sources of energy waste. The 3BDH000011R1 addresses this directly by providing stable, regulated DC power to the AC800F controller rack, ensuring that every downstream module — from I/O units to communication interfaces — operates within its optimal power envelope, eliminating the thermal losses and voltage fluctuation penalties that degrade system efficiency over time.

When integrated into a well-designed automation architecture, the SA801F does not simply supply power — it anchors the energy baseline of the entire control node. Paired with the AC800F CPU modules such as the PM803F or PM865F, the 3BDH000011R1 ensures that processor cycles are not wasted compensating for power instability, which translates directly into more deterministic scan times, tighter PID loop execution, and more accurate motor control commands issued to downstream variable frequency drives (VFDs). In production lines where motor loads are dynamically adjusted via drives such as the ABB ACS880 or ACS580 series, the quality of the control signal originating from a stable DCS power node has a measurable impact on drive efficiency and motor energy consumption.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 3BDH000011R1 is most effective when deployed as part of a coherent, energy-aware automation architecture. In a typical AC800F-based DCS installation, the SA801F power supply feeds the controller backplane, which hosts the PM803F or PM865F processor modules alongside communication interface modules such as the CI854A (PROFIBUS DP) or CI857K01 (PROFINET). These communication modules relay real-time setpoints and feedback signals to field devices — including positioners, transmitters, and motor starters — forming the closed-loop control backbone that determines how efficiently energy is consumed at the process level.

On the drive side, the AC800F DCS issues speed and torque references to ABB ACS880 industrial drives or ACS580 general-purpose drives via PROFIBUS or PROFINET. The energy efficiency of these drives — which can recover braking energy and apply direct torque control (DTC) to minimize motor losses — is directly dependent on the quality and timing of the control signals they receive. A power supply module that introduces noise or voltage sag into the controller rack degrades signal integrity, which in turn causes drives to operate sub-optimally. The SA801F eliminates this risk.

For energy monitoring, the AC800F platform integrates with ABB’s System 800xA energy management layer, where power meters and energy analyzers — such as the ABB M2M energy meter series or third-party Modbus-connected power analyzers — feed consumption data back to the DCS historian. The 3BDH000011R1 supports this architecture by maintaining the controller’s uptime and data acquisition continuity, ensuring that energy KPIs are logged without gaps. On the I/O side, AI810 and AO810V2 analog I/O modules connected to the AC800F backplane handle 4–20 mA signals from flow transmitters, pressure sensors, and temperature elements — all of which feed the energy optimization algorithms running in the PM processor. Digital I/O modules such as the DI810 and DO810 manage motor starter commands and valve actuator signals, completing the energy control loop from measurement to actuation.

For facilities running redundant control architectures, the SA801F supports hot-swap replacement without shutting down the controller, which is critical for maintaining continuous energy monitoring and avoiding the energy spikes associated with unplanned process restarts.

Power Optimization in Real Production Lines

In real production environments, the value of a stable, high-efficiency DCS power supply like the 3BDH000011R1 is measured in reduced downtime, lower energy waste, and improved production throughput. Consider a continuous process plant — a paper mill or a chemical reactor — where the AC800F DCS manages dozens of motor-driven pumps and fans. Each of these motors is controlled via a VFD that receives its speed reference from the DCS. If the power supply module introduces even intermittent instability into the controller rack, the result is erratic control outputs, which cause drives to hunt — oscillating around the setpoint rather than holding it steady. Motor hunting wastes energy, accelerates mechanical wear, and shortens bearing life, increasing maintenance costs and unplanned downtime.

By contrast, a properly functioning SA801F maintains the AC800F controller at full operational stability, enabling smooth, continuous PID control of all motor loads. This allows the plant to implement energy-saving strategies such as pump affinity law optimization (reducing pump speed by 20% cuts energy consumption by nearly 50%), fan pressure setpoint reset based on demand, and compressor load scheduling based on real-time production pace. These strategies, executed reliably by a stable DCS, can reduce a facility’s motor energy consumption by 15–30% compared to fixed-speed or poorly controlled variable-speed operation.

From a maintenance perspective, the 3BDH000011R1’s hot-swap capability means that power supply replacement — a routine maintenance task in any DCS installation — can be performed during production without a process shutdown. This eliminates the energy cost of restart transients (the high inrush currents drawn by motors and drives during cold starts) and preserves production line rhythm. Predictive maintenance integration is also supported: by monitoring the AC800F system’s internal diagnostics via the CI854A PROFIBUS interface or the Ethernet-based CI873K01 module, maintenance teams can track power supply health indicators and schedule replacements before failures occur, avoiding the energy and productivity losses of unplanned outages.

Every unit of 3BDH000011R1 supplied by ZYPLC is sourced from verified inventory channels, subjected to functional power-on testing, and shipped with a 12-month warranty. Stock availability is maintained to support both planned maintenance replacements and emergency procurement needs, with global shipping capability to minimize lead times for critical plant operations.

Energy Optimization FAQ

Q1: How does the 3BDH000011R1 contribute to energy savings in an AC800F DCS installation?
The SA801F provides stable, regulated 24 VDC power to the AC800F controller rack, ensuring that all connected processor and I/O modules operate within their specified power envelope. This eliminates control signal degradation caused by power instability, enabling more precise motor speed and torque control via downstream VFDs — which is the primary lever for energy reduction in motor-driven processes. Stable control also reduces process variability, which means less energy wasted on overcorrection and rework.

Q2: Is the 3BDH000011R1 compatible with redundant AC800F configurations?
Yes. The SA801F is designed for use in redundant power supply configurations within the AC800F rack. It supports hot-swap replacement, meaning a failed or degraded unit can be replaced without powering down the controller or interrupting the process. This is essential for high-availability installations where unplanned shutdowns carry significant energy and production cost penalties.

Q3: What is the recommended replacement or upgrade path for aging AC800F power supplies?
For sites running older SA801 or early-revision SA801F units, the 3BDH000011R1 is the current compatible replacement. Before replacement, verify the rack configuration and redundancy mode via the AC800F engineering tool (Freelance Engineering). ZYPLC recommends replacing power supply modules proactively at the first sign of output voltage drift or increased ripple, as detected by the system’s internal diagnostics, rather than waiting for a hard failure.

Q4: What testing and warranty coverage is provided with ZYPLC-supplied 3BDH000011R1 units?
All 3BDH000011R1 modules supplied by ZYPLC undergo functional power-on testing prior to shipment, verifying output voltage regulation, ripple performance, and communication with the AC800F backplane. Each unit is covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize plant downtime.
