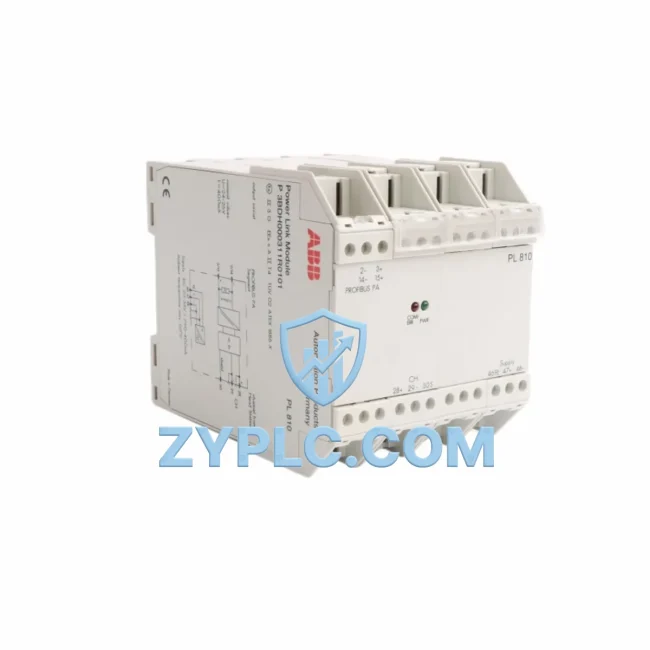

ABB 3BDH000311R0101 PL810 System-Ready Power Link for AC800M Architecture

ABB 3BDH000311R0101 PL810 System-Ready Power Link Module for AC800M Architecture

The ABB 3BDH000311R0101 PL810 Power Link Module is a critical infrastructure component within the ABB AC800M distributed control system architecture. Designed to bridge the power distribution layer with the S800 I/O subsystem, the PL810 ensures stable, conditioned power delivery across multi-rack field I/O configurations. In large-scale automation environments — including power generation, petrochemical processing, water treatment, and advanced manufacturing — the integrity of the power link layer directly determines the reliability of the entire control hierarchy. The 3BDH000311R0101 PL810 addresses this requirement with precision-engineered power conditioning, fault isolation, and seamless integration into the AC800M control platform.

Within a fully deployed AC800M system, the PL810 operates at the intersection of the power layer and the I/O communication layer. It receives conditioned DC supply from upstream power supply units such as the SD821 or SD822 power modules and distributes regulated voltage to downstream S800 I/O modules mounted on TB820 or TB840 ModuleBus communication units. This architecture ensures that each I/O cluster — whether handling analog signals from field transmitters, digital inputs from limit switches, or output commands to actuators — receives stable, noise-free power independent of load fluctuations elsewhere in the cabinet.

The PL810’s role in system architecture extends beyond simple power distribution. By isolating the I/O power domain from the CPU and communication backbone, it prevents ground loops and transient interference from propagating into the PM861, PM864, or PM866 processor modules. This isolation is particularly valuable in environments with high electromagnetic interference, such as variable frequency drive (VFD) panels, transformer substations, or heavy motor control centers. Engineers deploying the AC800M in such environments rely on the PL810 to maintain signal integrity across the CI854 PROFIBUS DP communication interface and CI840 PROFINET I/O modules, ensuring deterministic data exchange between field devices and the control layer.

From a redundancy design perspective, the 3BDH000311R0101 PL810 supports hot-standby power architectures when paired with redundant power supply configurations. In critical process applications — such as offshore platform control, nuclear auxiliary systems, or continuous chemical reactors — dual power feeds are routed through independent PL810 modules to eliminate single points of failure at the power link level. This design philosophy aligns with the broader AC800M redundancy framework, which also encompasses CPU redundancy via paired PM866 processors and communication redundancy through dual CI854 PROFIBUS interfaces.

System engineers appreciate the PL810’s compact DIN-rail form factor, which simplifies cabinet layout planning and allows dense I/O configurations without sacrificing serviceability. The module’s plug-and-play compatibility with the S800 I/O family — including AI810, AO810, DI810, DI811, DO810, and DO814 I/O modules — eliminates the need for custom wiring adapters or firmware configuration. Replacement during scheduled maintenance windows is straightforward, reducing mean time to repair (MTTR) and supporting the long-term operational continuity that process industries demand.

ZYPLC maintains verified stock of the ABB 3BDH000311R0101 PL810, sourced through authorized supply channels and subject to incoming inspection before dispatch. Every unit is covered by a 12-Month Warranty, providing assurance of functional integrity from the date of delivery. For system integrators managing multi-site AC800M deployments, ZYPLC’s inventory depth and rapid fulfillment capability support both planned expansion projects and emergency replacement scenarios.

Architecture Specification Table

Coordinated Control System Design

The ABB 3BDH000311R0101 PL810 does not operate in isolation — its value is realized within a coordinated, multi-layer control architecture. A typical AC800M deployment integrating the PL810 includes the following components working in concert:

At the control layer, PM864 or PM866 processor modules execute the application logic, managing scan cycles, alarm handling, and inter-controller communication. These CPUs communicate with field I/O through the ModuleBus, which the PL810 supports by ensuring stable power delivery to the bus infrastructure. The CI854 PROFIBUS DP communication interface extends the control reach to remote I/O stations and third-party field devices, while the CI840 PROFINET I/O module enables Ethernet-based I/O integration for modern plant networks.

At the I/O layer, AI810 analog input modules collect 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors. AO810 analog output modules drive control valves and positioners. DI810 and DI811 digital input modules monitor discrete field signals, while DO810 and DO814 digital output modules command solenoid valves, motor starters, and indicator lamps. All of these modules depend on the PL810 for their operating power, making the power link module a foundational element of I/O system reliability.

At the power layer, SD821 and SD822 power supply modules provide the upstream 24 VDC feed. In redundant configurations, two independent power supplies feed separate PL810 modules, with automatic switchover ensuring uninterrupted I/O operation during a power supply fault. TB820 and TB840 ModuleBus communication units serve as the physical backbone connecting I/O modules to the control network, with the PL810 integrated into this assembly to provide localized power management.

Application in Layered Automation Systems

The ABB 3BDH000311R0101 PL810 finds application across a broad spectrum of industrial sectors where the AC800M platform is deployed as the primary control infrastructure.

In power generation and substation automation, the PL810 supports AC800M systems managing turbine control, excitation systems, and protection relay coordination. The module’s electrical isolation characteristics are essential in high-voltage environments where ground potential differences between control cabinets can introduce damaging transients into I/O wiring.

In petrochemical and refinery process control, continuous process plants rely on the AC800M for regulatory control of distillation columns, heat exchangers, and reactor systems. The PL810 ensures that the dense I/O configurations typical of these applications — often exceeding hundreds of analog loops per controller — receive stable power without cross-interference between signal groups.

In water and wastewater treatment, municipal utilities deploy AC800M systems for SCADA-integrated control of pumping stations, filtration systems, and chemical dosing. The PL810’s compact form factor and DIN-rail mounting simplify installation in space-constrained field control panels distributed across large treatment facilities.

In mining and minerals processing, the AC800M controls conveyor systems, crushers, flotation cells, and thickeners. The PL810’s robust operating temperature range and vibration tolerance support reliable operation in the harsh environmental conditions typical of mine site control rooms and field enclosures.

In packaging and discrete manufacturing, the AC800M integrates with high-speed production lines where the PL810 supports rapid I/O scanning and deterministic power delivery to digital I/O modules controlling servo drives, vision systems, and pneumatic actuators.

Architecture Engineering FAQ

Q1: Is the ABB 3BDH000311R0101 PL810 compatible with both TB820 and TB840 ModuleBus units?
Yes. The PL810 is designed for use within the S800 I/O system and is compatible with both TB820 (standard ModuleBus) and TB840 (redundant ModuleBus) communication units. When used with TB840 in a redundant I/O configuration, the PL810 supports dual-path power and communication architectures, ensuring continued I/O operation during a single-point failure in either the power or communication path.

Q2: Can the PL810 be replaced online without shutting down the AC800M controller?
The PL810 supports hot-swap replacement in systems designed with redundant power feed configurations. In non-redundant installations, replacement requires a planned maintenance window during which the affected I/O cluster is taken offline. ZYPLC recommends maintaining a spare PL810 on-site for critical applications to minimize unplanned downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty and are dispatched with full functional verification documentation.

Q3: What is the recommended commissioning procedure for the PL810 in a new AC800M system build?
During system commissioning, the PL810 should be installed and powered before connecting S800 I/O modules to the ModuleBus. Verify input voltage from the SD821 or SD822 power supply is within the 24 VDC ±10% tolerance before energizing the I/O rail. Use ABB’s Control Builder M engineering tool to verify I/O module recognition and communication status via the CI854 or CI840 interface. Contextual Integration features within Control Builder M allow automatic hardware configuration import, reducing manual parameterization effort and commissioning time.
