ABB 3BHE004059R0001 Energy-Saving DC Drive for DCS600: Precision Motor Control for Industrial Efficiency

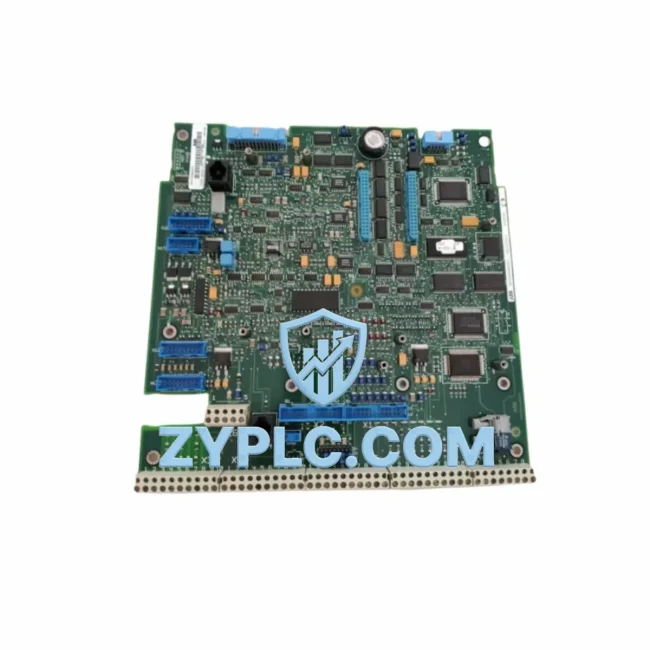

The ABB 3BHE004059R0001 (SDCS-CON-2) is a high-performance DC drive control board engineered for demanding industrial automation environments. Designed to operate within ABB’s DCS400, DCS500, and DCS600 drive series, this control board serves as the intelligence layer between your process control system and the DC motor drive stage — directly influencing energy consumption, motor response accuracy, and overall production line throughput.

In modern manufacturing facilities where energy costs represent a significant share of operational expenditure, the SDCS-CON-2 delivers measurable improvements in drive efficiency by enabling precise closed-loop speed and torque regulation. Rather than allowing motors to run at fixed or unregulated speeds, this board enables dynamic adjustment of drive output in real time, reducing unnecessary power draw during partial-load cycles and idle transitions.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SDCS-CON-2 does not operate in isolation — it functions as the control nucleus within a broader energy-aware drive architecture. In a typical DCS600 installation, the board interfaces directly with the ABB SDCS-POW-4 power board, which manages the thyristor firing sequence for the DC bus. Together, these two boards form the core of a regenerative DC drive capable of returning braking energy to the supply network, a critical feature in high-inertia applications such as rolling mills and large winders.

For field bus integration, the SDCS-CON-2 supports optional communication adapter modules such as the ABB RDCO-02 (DDCS fiber optic link) and RPBA-01 (PROFIBUS adapter), enabling seamless integration with Siemens S7-300/S7-400 PLCs or ABB AC500 controllers over standardized industrial networks. This connectivity allows energy management systems to read real-time drive parameters — including motor current, speed feedback, and power factor — directly into SCADA or MES platforms for energy accounting and optimization.

On the feedback side, the board accepts encoder signals from incremental encoders (typically 1024 PPR) mounted on the motor shaft, enabling high-resolution speed feedback that eliminates speed droop under varying load conditions. This precision is especially valuable in paper machine drives and extruder lines where consistent line speed directly impacts product quality and reduces material waste — an indirect but significant form of energy and cost optimization.

In multi-drive configurations, the SDCS-CON-2 can be coordinated with ABB ACS800 or ACS880 AC drives via a shared control platform, allowing mixed AC/DC drive lines to be managed from a single ABB Panel Builder 800 HMI or a CP600 operator panel. This unified architecture reduces the engineering overhead of energy monitoring and simplifies fault diagnosis across the production line.

For power quality monitoring, pairing the DCS600 system with an ABB M2M Power Meter or a B23 energy meter at the MCC panel level provides granular kWh data per drive zone, enabling facility engineers to identify energy hotspots and schedule preventive maintenance before efficiency degradation becomes a cost issue.

Power Optimization in Real Production Lines

In a steel wire drawing line, for example, the SDCS-CON-2 governs the speed ramp profiles of multiple DC capstan motors in sequence. By precisely controlling acceleration and deceleration curves, the board prevents current spikes that would otherwise cause transformer loading peaks and increase demand charges on the utility bill. Facilities that have upgraded from older analog thyristor controllers to SDCS-CON-2-based DCS600 drives have reported reductions in peak demand of 8–15%, depending on the load profile and number of drive axes involved.

In crane and hoist applications, the regenerative capability of the DCS600 — enabled by the SDCS-CON-2’s four-quadrant control logic — allows kinetic energy from lowering loads to be fed back into the DC bus and returned to the AC supply. This regenerative braking eliminates the need for braking resistors, reduces heat generation in the drive cabinet, and lowers cooling energy requirements — a compounding efficiency benefit that is often overlooked in total cost of ownership calculations.

For paper machine drives, where consistent tension control across multiple drive sections is critical, the SDCS-CON-2’s torque control mode ensures that draw ratios between sections remain stable even as paper grade and moisture content change. This stability reduces web breaks, minimizes waste, and keeps the machine running at optimal speed — directly improving OEE (Overall Equipment Effectiveness) and reducing the energy cost per ton of paper produced.

Every unit of the ABB 3BHE004059R0001 SDCS-CON-2 supplied by ZYPLC undergoes a full functional test prior to shipment, including power-on verification, communication port testing, and parameter memory check. Stock is maintained in our warehouse to support urgent replacement requirements, with same-day dispatch available for in-stock items. All units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does the SDCS-CON-2 contribute to energy savings compared to a standard fixed-speed DC drive?
The SDCS-CON-2 enables closed-loop speed and torque regulation, which means the drive output is continuously adjusted to match the actual load demand. Unlike fixed-speed or open-loop drives that run at full power regardless of load, the SDCS-CON-2 reduces motor current during partial-load conditions, directly lowering kWh consumption. In applications with variable load cycles — such as conveyors, winders, and extruders — this adaptive control can reduce energy consumption by 10–25% compared to unregulated drive configurations.

Q2: Is the 3BHE004059R0001 compatible with both DCS500 and DCS600 drive cabinets?
The SDCS-CON-2 (3BHE004059R0001) is primarily designed for the ABB DCS600 series. While it shares architectural similarities with earlier DCS500 control boards, direct interchangeability depends on the specific drive revision and firmware version. We recommend verifying the drive cabinet’s hardware revision before ordering. Our technical team can assist with compatibility confirmation based on your drive’s nameplate data and existing board part number.

Q3: What is the recommended replacement procedure, and how long does it take?
Replacing the SDCS-CON-2 typically requires saving the existing drive parameters via the ABB DriveWindow software or the CDP312R control panel before removal. After installing the new board, parameters are restored and the drive is recommissioned with a no-load test followed by a loaded run. The full procedure typically takes 2–4 hours for an experienced drive technician. ZYPLC can provide parameter backup support and technical guidance as part of the after-sales service.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All SDCS-CON-2 units supplied by ZYPLC are tested prior to shipment for power-on functionality, communication interface integrity, and parameter memory retention. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the board’s rated IP class. Warranty claims are processed with a replacement-first policy to minimize your downtime.
