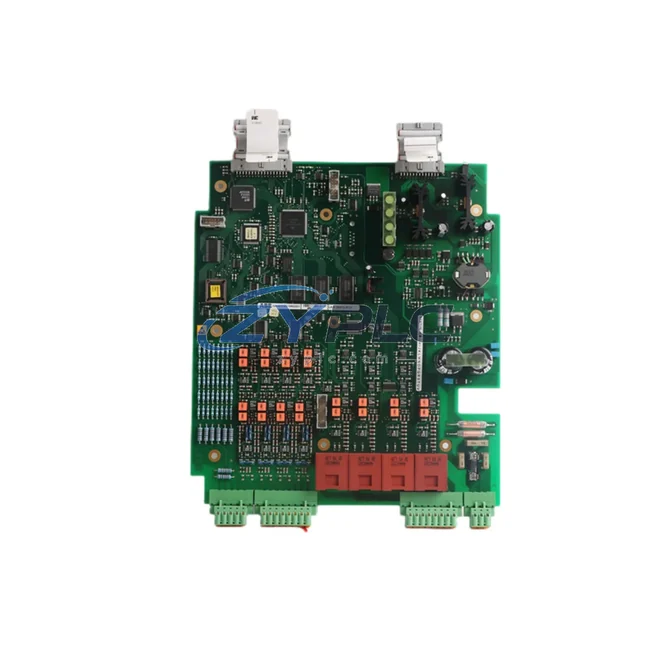

ABB 3BHE009319R0001 PC Board for UNS2881B

ABB 3BHE009319R0001 PC Board for UNS2881B Automation

The ABB 3BHE009319R0001 is a high-performance PC Board Module designed for the UNS2881B series of industrial drive and excitation control systems. As factories face mounting pressure to reduce energy consumption and improve equipment utilization, this board plays a critical role in the closed-loop control architecture that governs motor excitation, power regulation, and real-time feedback processing. By maintaining precise control over excitation current and voltage output, the 3BHE009319R0001 directly contributes to reducing reactive power losses, stabilizing generator output, and minimizing thermal stress on connected drive components.

In modern industrial maintenance planning strategies, the control board is not merely a signal processor — it is the intelligence layer that determines how efficiently a drive system responds to load changes. The ABB 3BHE009319R0001 interfaces seamlessly with the broader UNITROL 5000 and UNITROL 6000 excitation control platforms, enabling real-time adjustment of field current to match actual load demand. This dynamic response capability is essential for reducing no-load losses during low-production periods and for preventing unplanned downtime caused by over-excitation in partial-load scenarios.

Product Specification Table

System Compatibility and Application

The 3BHE009319R0001 does not operate in isolation. Its true value emerges when integrated into a well-designed industrial automation system. In a typical heavy-industry installation, this board works in coordination with the ABB ACS880 industrial drive series, which handles variable-speed motor control and regenerative braking energy recovery. The ACS880’s ability to feed braking energy back into the supply network is only as effective as the excitation control accuracy provided by boards like the 3BHE009319R0001.

On the power monitoring side, the board interfaces with ABB M2M power measurement modules and CM-series current monitoring relays, which provide real-time data on active and reactive power consumption. This data feeds into the ABB Ability™ Energy Manager platform, enabling plant operators to identify inefficiencies at the drive level and make informed decisions about load scheduling and equipment cycling.

For I/O integration, the 3BHE009319R0001 connects to ABB AC500 PLC I/O modules, which aggregate field signals from temperature sensors, current transformers, and speed encoders. The AC500 PLC’s high-speed processing ensures that excitation adjustments are made within milliseconds of detecting a load deviation, preventing the energy spikes that occur when drives overcompensate for sudden load changes.

Communication between the excitation control system and the plant SCADA layer is handled via PROFIBUS DP or Modbus RTU protocols, both of which are natively supported by the UNS2881B platform. This connectivity allows the ABB CP600 HMI panels to display live excitation parameters, power factor readings, and alarm states, giving operators full visibility into drive energy performance without requiring manual inspection of field equipment.

In multi-drive installations, the 3BHE009319R0001 also supports coordination with ABB SDCS-CON DC drive control boards, enabling unified maintenance planning across both AC and DC motor systems on the same production line. This cross-platform compatibility is particularly valuable in steel mills, paper plants, and chemical processing facilities where mixed drive architectures are common.

Maintenance and Replacement Notes

Consider a cement plant running multiple large synchronous motors for kiln rotation and raw mill grinding. Without precise excitation control, these motors tend to operate at suboptimal power factors, drawing excess reactive current from the grid and increasing utility demand charges. By deploying the ABB 3BHE009319R0001 within the excitation control cabinet, plant engineers can maintain power factor values consistently above 0.95, reducing reactive power penalties and lowering overall energy costs by an estimated 8–15% depending on load profile.

In a paper manufacturing environment, production line rhythm (takt time) is directly tied to motor speed stability. Fluctuations in excitation current cause speed variations that disrupt web tension, leading to paper breaks and unplanned downtime. The 3BHE009319R0001’s high-resolution feedback processing ensures that excitation corrections are applied before speed deviations become visible at the process level, maintaining consistent line speed and reducing waste from off-spec product.

Predictive maintenance is another area where this board delivers measurable value. By monitoring the thermal signature of the excitation system through integrated diagnostics, maintenance teams can detect early signs of insulation degradation, bearing wear in the exciter, or cooling system inefficiency — all before they result in unplanned shutdowns. This shift from reactive to predictive maintenance reduces mean time between failures (MTBF) and extends the operational life of connected drive equipment.

Every unit of the ABB 3BHE009319R0001 supplied by ZYPLC undergoes full functional testing prior to shipment, including excitation response verification, signal integrity checks, and thermal cycling tests. Stock is maintained in our warehouse to support rapid deployment, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How does the ABB 3BHE009319R0001 contribute to operational stability in motor-driven systems?
The board regulates excitation current with high precision, keeping the power factor of synchronous motors close to unity. This reduces reactive power draw, lowers I²R losses in supply cables, and decreases demand charges from the utility — resulting in measurable energy cost reductions across the production facility.

Q2: Is the 3BHE009319R0001 compatible with both UNITROL 5000 and UNITROL 6000 excitation systems?
Yes. The UNS2881B series board is designed for use within ABB’s UNITROL excitation control platforms. It is compatible with UNITROL 5000 and UNITROL 6000 configurations. For specific firmware version compatibility, we recommend verifying the system software revision before installation.

Q3: What is the recommended replacement procedure, and can it be performed without a full system shutdown?
Board replacement should follow ABB’s standard hot-standby switchover procedure where redundant excitation systems are installed. In single-channel configurations, a brief controlled shutdown is required. ZYPLC provides technical documentation and pre-shipment testing reports to support smooth replacement with minimal production interruption.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All ABB 3BHE009319R0001 units supplied by ZYPLC are tested for full functional performance, including signal output verification, communication interface checks, and thermal stress testing. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround support.
