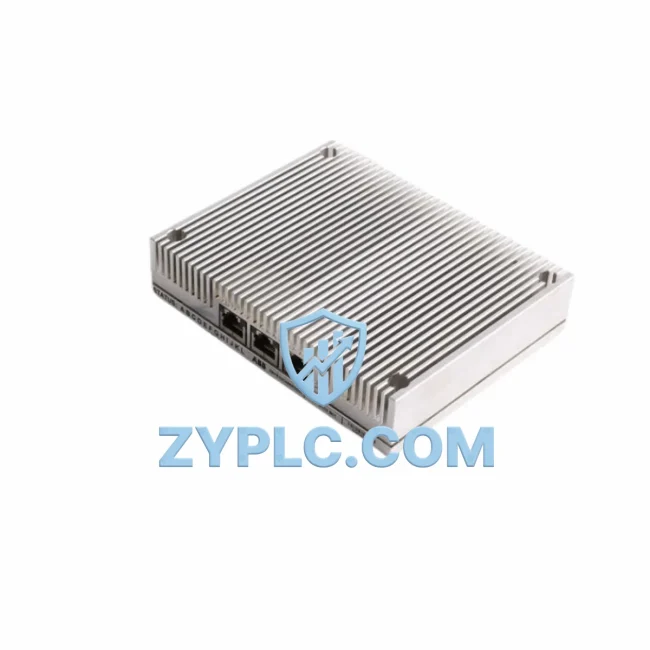

ABB 3BHE020455R0001 PPD103 B01 System-Ready DCS Controller for AC800PEC Architecture

ABB 3BHE020455R0001 PPD103 B01 System-Ready DCS Controller for AC800PEC Architecture

The ABB 3BHE020455R0001 PPD103 B01 is a high-performance DCS controller board engineered for seamless integration within the ABB AC800PEC control platform. Designed to operate at the core of distributed control architectures, this module serves as the central processing unit responsible for coordinating signal acquisition, logic execution, and real-time communication across all layers of an industrial automation system. Whether deployed in power generation, petrochemical processing, water treatment, metallurgical operations, or advanced manufacturing lines, the PPD103 B01 delivers the computational reliability and architectural consistency that modern process control demands.

In a fully layered automation system, the 3BHE020455R0001 occupies the control layer — the critical tier that bridges field-level I/O with supervisory SCADA and HMI interfaces. Its role is not simply to execute logic in isolation, but to maintain synchronised communication with upstream and downstream components, ensuring that every signal from the field is processed, validated, and acted upon within deterministic cycle times. This contextual integration capability makes the PPD103 B01 a cornerstone module for engineers designing systems where uptime, data integrity, and cross-layer coordination are non-negotiable.

From a system architecture perspective, the PPD103 B01 is designed to work in concert with the broader AC800PEC ecosystem. The controller interfaces directly with ABB RPBA-01 PROFIBUS Adapter modules and CI858 DNALink communication interfaces, enabling high-speed fieldbus connectivity across distributed I/O nodes. Power supply redundancy is supported through coordination with the ABB SD831 and SD832 power supply units, which provide stable 24 VDC rail voltage to the controller backplane. The DSQC679 operator panel and PP865 Operator Panel serve as the HMI layer, providing real-time visualisation of process variables managed by the PPD103 B01. On the I/O side, the controller communicates with AI810 analogue input modules, DI810 digital input modules, and AO810 analogue output modules, forming a complete signal chain from sensor to actuator. For redundant communication backbone design, the controller integrates with the SC520 communication controller to maintain network resilience across dual-ring Ethernet topologies.

The architecture supported by the 3BHE020455R0001 is inherently modular and scalable. Engineers can expand I/O capacity by adding additional S800 I/O modules to the existing backplane without interrupting live process control — a critical advantage in continuous process industries where planned shutdowns carry significant operational cost. The controller’s support for hot-standby redundancy configurations, when paired with a secondary PPD103 B01 unit and appropriate switchover logic, ensures that a single point of failure at the controller level does not propagate into process disruption. This redundancy architecture is particularly valued in power plant distributed control systems, offshore platform automation, and chemical reactor management applications where safety integrity levels demand fault-tolerant design.

Signal flow within a system built around the PPD103 B01 follows a structured path: field instruments transmit analogue or digital signals to the I/O layer, where they are conditioned and digitised before being passed to the controller over the internal backplane bus. The PPD103 B01 processes these inputs against the resident control programme, generates output commands, and transmits them back to the I/O layer for actuation. Simultaneously, process data is forwarded upstream to the SCADA layer via the communication interfaces, enabling operators to monitor and adjust setpoints in real time. This bidirectional, multi-layer signal architecture is what defines the PPD103 B01 as a system-ready component rather than a standalone device.

For maintenance engineers, the 3BHE020455R0001 offers significant advantages in long-term serviceability. Its standardised form factor and connector pinout are consistent across the AC800PEC platform generation, meaning that replacement procedures can be executed without specialised tooling or extended reconfiguration. Diagnostic LEDs on the module face provide immediate visual indication of communication status, power rail health, and programme execution state, reducing mean time to repair in fault scenarios. Spare parts availability is supported through ZYPLC’s inventory management programme, ensuring that critical replacement units are accessible with short lead times to minimise unplanned downtime.

All units supplied by ZYPLC undergo functional verification testing prior to dispatch, covering power-on self-test, communication interface validation, and I/O channel integrity checks. Each 3BHE020455R0001 PPD103 B01 is covered by a 12-Month Warranty, providing assurance of module performance under normal operating conditions. This warranty applies to both new and refurbished stock, with clear documentation of test results provided upon request for quality assurance and audit purposes.

Architecture Specification Table

Coordinated Control System Design

The PPD103 B01 achieves its full architectural value when deployed as part of a coordinated control system rather than as an isolated replacement component. In a typical AC800PEC installation, the controller backplane hosts the 3BHE020455R0001 alongside the ABB SD831 power supply module, which provides the regulated 24 VDC required for stable controller operation. Communication to field devices is managed through the ABB CI858 DNALink Interface, which connects the controller to remote I/O clusters distributed across the plant floor. Analogue process signals — temperature, pressure, flow, and level — are acquired through ABB AI810 Analogue Input Modules, while discrete control outputs are routed through ABB DO810 Digital Output Modules to drive solenoids, motor starters, and valve actuators.

For PROFIBUS-based field device networks, the ABB RPBA-01 PROFIBUS Adapter extends the controller’s communication reach to variable frequency drives, intelligent transmitters, and remote terminal units. Network redundancy at the communication layer is achieved through the ABB SC520 Communication Controller, which manages dual-ring Ethernet topology and ensures that a single cable or switch failure does not interrupt process data flow. Operator interaction with the system is facilitated through the ABB PP865 Operator Panel, which presents real-time process graphics and alarm management interfaces driven by data from the PPD103 B01. For applications requiring expanded I/O capacity beyond the local backplane, the ABB TB820 ModuleBus Optical Port provides fibre-optic extension of the S800 I/O bus, enabling remote I/O stations to be located up to 100 metres from the controller cabinet without signal degradation.

Application in Layered Automation Systems

The 3BHE020455R0001 PPD103 B01 is deployed across a wide range of industrial sectors where distributed control architecture is the standard design approach. In thermal and hydroelectric power generation, the controller manages turbine governor logic, excitation control sequencing, and auxiliary system interlocks, operating continuously under the demanding cycle requirements of grid-connected generation assets. In petrochemical and refinery applications, the PPD103 B01 coordinates reactor temperature control loops, distillation column pressure management, and emergency shutdown system integration, where the controller’s deterministic scan time and redundancy capability are essential to process safety.

In water and wastewater treatment facilities, the controller manages pump sequencing, chemical dosing control, and filtration process automation across geographically distributed pump stations connected via PROFIBUS or DNALink networks. Mining and mineral processing operations utilise the PPD103 B01 for conveyor system control, crusher sequencing, and flotation cell management, where the harsh electrical environment demands robust controller hardware with proven EMC performance. In metallurgical and steel mill applications, the controller supports rolling mill drive coordination, furnace temperature profiling, and cooling system management, integrating with variable speed drives and high-current actuators through the S800 I/O layer. Packaging and discrete manufacturing lines benefit from the controller’s fast I/O scan rates and modular expansion capability, enabling flexible production line reconfiguration without controller replacement.

Architecture Engineering FAQ

Q1: Is the ABB 3BHE020455R0001 PPD103 B01 compatible with existing AC800PEC backplane configurations, and can it replace an older PPD103 revision without system reconfiguration?
The PPD103 B01 maintains form-factor and connector compatibility with the AC800PEC backplane series. In most installations, a direct board swap is possible without modifying the backplane wiring or communication configuration. However, engineers should verify the firmware revision loaded on the replacement module against the project’s control application version to ensure compatibility. ZYPLC recommends a controlled commissioning test in a non-production environment prior to live system deployment, and our technical team can provide revision compatibility guidance upon request.

Q2: Can the PPD103 B01 be configured for hot-standby redundancy, and what additional components are required to implement a redundant controller architecture?
Yes, the AC800PEC platform supports hot-standby controller redundancy using a paired set of PPD103 B01 modules installed in a redundant backplane configuration. The redundancy switchover is managed at the platform level and requires the appropriate redundancy licence and communication synchronisation cabling between the primary and standby controllers. The SD831 or SD832 power supply modules should also be deployed in a redundant pair to eliminate power rail as a single point of failure. ZYPLC can supply matched pairs of 3BHE020455R0001 units with consistent firmware revisions to simplify redundant system commissioning.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 3BHE020455R0001 PPD103 B01?
The 12-Month Warranty provided by ZYPLC covers functional failure of the module under normal operating conditions, including communication interface faults, processor failure, and power regulation defects. Physical damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module’s rated operating range is excluded. To initiate a warranty claim, customers should contact ZYPLC with the original purchase documentation and a description of the observed fault. ZYPLC will arrange return logistics and provide a replacement or repaired unit within an agreed lead time to minimise system downtime.
