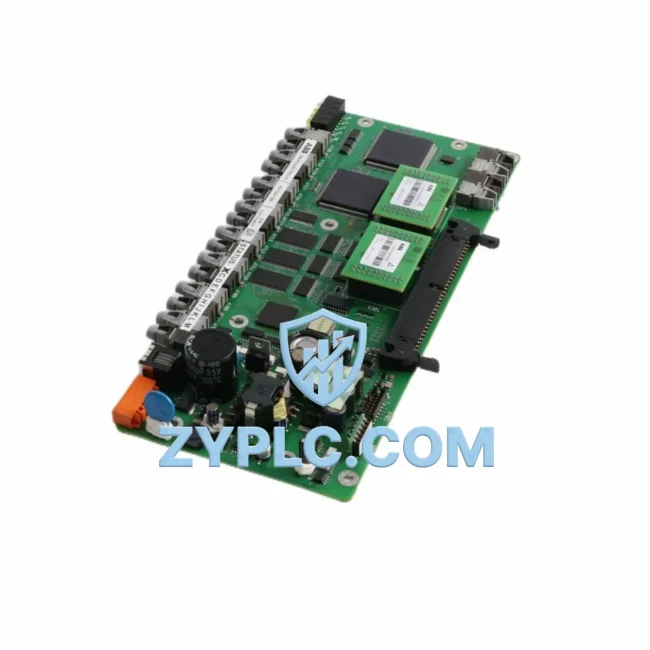

The ABB 3BHE024577R0101 PPC907BE is a high-performance inverter control module engineered specifically for deployment within the AC800PEC power electronics controller platform. Rather than functioning as a standalone component, this module is designed to operate as an integral node within a layered industrial automation architecture — coordinating signal flow, power conversion commands, and real-time feedback across the control, I/O, power, and execution layers of a complete drive system.

In modern industrial automation environments — spanning wind energy, marine propulsion, traction drives, and heavy process industries — the reliability of the inverter control layer is foundational to system-wide performance. The 3BHE024577R0101 PPC907BE fulfills this role by providing deterministic pulse pattern control, gate firing synchronization, and closed-loop current regulation that directly governs the behavior of downstream power semiconductors and converter bridges.

Its contextual integration capability means that this module does not require isolated commissioning. Instead, it is designed to be recognized and configured within the broader AC800PEC system environment, reducing engineering overhead and enabling faster deployment across multi-drive or multi-converter installations.

Architecture Specification Table

Coordinated Control System Design

The 3BHE024577R0101 PPC907BE achieves its full operational value when integrated within a complete AC800PEC-based control architecture. At the controller level, the ABB AC800PEC CPU module (such as the PPD113 or PPD512 series) serves as the master processing unit, issuing high-level torque and speed references that are translated into precise switching commands by the PPC907BE. This tight coupling between the CPU and the inverter control module ensures sub-millisecond response times critical for high-dynamic drive applications.

On the I/O layer, ABB SDCS-IOB analog and digital I/O boards or RDIO-01 remote I/O modules feed real-time process signals — including current feedback, encoder position, and thermal status — into the control loop managed by the PPC907BE. Accurate signal acquisition at this layer directly determines the quality of the closed-loop regulation performed by the inverter control module.

The power layer is served by ABB ACS800 or ACS880 series inverter power units, whose IGBT gate drivers receive firing pulses directly from the PPC907BE. The integrity of this interface — including fiber optic isolation and precise timing — is what separates a stable, low-harmonic drive system from one prone to nuisance trips and semiconductor stress.

For network connectivity and supervisory integration, ABB RPBA-01 PROFIBUS adapter modules or RETA-01 Ethernet adapter boards bridge the AC800PEC platform to plant-level SCADA or DCS systems, enabling the inverter control layer to receive setpoints and report diagnostics in real time. The PPC907BE’s role in this chain is to ensure that network-commanded changes in operating mode are executed with the precision and speed that the power conversion process demands.

Redundancy architectures in critical applications often pair the PPC907BE with a hot-standby AC800PEC controller and ABB RPCP-01 redundancy modules, ensuring that a single board failure does not interrupt production. The modular design of the AC800PEC rack — accommodating NTAC-02 pulse encoder interface modules and NAMC-11 motor control application modules alongside the PPC907BE — allows engineers to build scalable, maintainable control cabinets that can be expanded or reconfigured without replacing the entire drive system.

Application in Layered Automation Systems

The 3BHE024577R0101 PPC907BE finds application across a broad spectrum of industrial sectors where precise, high-power motor control is non-negotiable.

In wind energy generation, this module governs the inverter stage of full-power converter systems, managing the conversion of variable-frequency generator output into grid-synchronized AC power. The ability to maintain stable gate firing under rapidly changing wind conditions — while communicating fault states upstream to the turbine controller — makes the PPC907BE a critical reliability component in MW-class turbine installations.

In marine and offshore propulsion, AC800PEC-based drive systems equipped with the PPC907BE control the variable-speed thrusters and main propulsion motors of vessels where dynamic positioning accuracy and power efficiency are paramount. The module’s deterministic control behavior supports the low-speed, high-torque operating profiles required in harbor maneuvering and station-keeping applications.

In metals and mining — including rolling mills, hoists, and conveyor drives — the PPC907BE supports the high-cycle, high-inertia load profiles that characterize these environments. Its integration within a redundant AC800PEC architecture ensures that a single component failure does not halt production lines where downtime costs are measured in thousands of dollars per minute.

In oil, gas, and petrochemical process plants, the module supports variable-speed pump and compressor drives where precise flow control directly impacts process yield and energy consumption. The ability to integrate with PROFIBUS or Ethernet-based DCS systems allows the inverter control layer to participate in plant-wide energy management strategies.

Architecture Engineering FAQ

Q1: Is the 3BHE024577R0101 PPC907BE compatible with all AC800PEC rack configurations?
The PPC907BE is designed for use within the ABB AC800PEC platform and is compatible with standard AC800PEC controller racks that support the PPC9xx module series. Compatibility with specific rack revisions and firmware versions should be verified against the AC800PEC hardware configuration guide. Our technical team can assist with cross-referencing your existing system BOM prior to ordering.

Q2: How does this module support long-term maintenance and spare parts strategy?
The 3BHE024577R0101 PPC907BE is a field-replaceable unit within the AC800PEC architecture. Its modular design means that replacement does not require retuning the entire drive system — only the inverter control layer is affected. We maintain stock of tested, verified units to support planned maintenance cycles and emergency replacements, backed by a 12-Month Warranty covering functional performance under normal operating conditions.

Q3: What does the 12-Month Warranty cover, and what is the commissioning support process?
Our 12-Month Warranty covers the full functional performance of the 3BHE024577R0101 PPC907BE as an inverter control module within a compatible AC800PEC system. Each unit is tested prior to dispatch to verify gate drive output integrity, communication interface function, and power supply compatibility. For commissioning support, our engineering team can provide parameter configuration guidance and system integration advice to ensure the module is correctly initialized within your existing control architecture.
