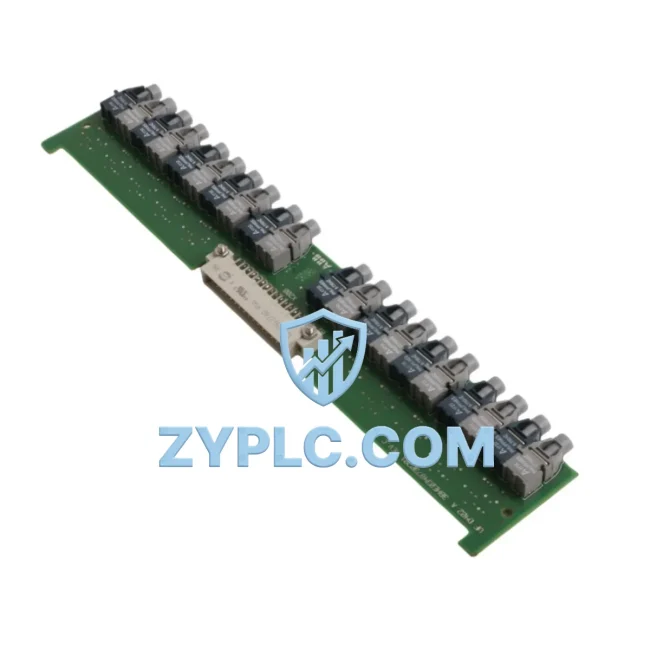

ABB 3BHE034872R0101 UFD402A101 System-Ready Pulse Distribution for ACS/DCS800 Architecture

ABB 3BHE034872R0101 UFD402A101 System-Ready Pulse Distribution for ACS800/DCS800 Control Architecture

The ABB 3BHE034872R0101 UFD402A101 is a dedicated pulse distribution board engineered for seamless integration within ABB’s ACS800 and DCS800 drive control architectures. Rather than functioning as a standalone component, this module occupies a critical position in the signal chain between the drive control unit and the gate unit layer, ensuring precise, synchronized firing pulse delivery across multi-drive and multi-axis systems. In large-scale industrial automation environments — where drive redundancy, signal integrity, and system-wide synchronization are non-negotiable — the UFD402A101 serves as the backbone of reliable power conversion control.

Understanding this module’s role requires viewing it within the full control system hierarchy. At the control layer, the main CPU board — such as the RDCU-02C or RMIO-11C — generates the modulation commands and timing references. These signals pass through the pulse distribution layer, where the 3BHE034872R0101 UFD402A101 receives, conditions, and distributes firing pulses to the IGBT gate driver boards (e.g., AGDR-81C or AGDR-71C) at the power layer. This architecture ensures that all switching events across parallel or series-connected power modules remain phase-coherent, minimizing harmonic distortion and preventing destructive shoot-through conditions.

At the I/O and feedback layer, the UFD402A101 interfaces with encoder feedback modules and current measurement boards, enabling closed-loop torque and speed control with millisecond-level response. The module’s signal routing is designed to maintain electrical isolation between the control domain and the high-voltage power domain, a requirement in both ACS800 multi-drive cabinets and DCS800 DC drive systems used in heavy industrial applications such as rolling mills, hoists, and paper machine drives.

From a network and communication perspective, the UFD402A101 operates in conjunction with the RDCO-02C or RDCO-03C communication option boards, which handle DDCS fiber-optic communication between the master drive and follower drives. This fiber-optic ring topology, native to ABB’s ACS800 and DCS800 platforms, allows the pulse distribution board to remain synchronized with the system master clock, ensuring deterministic control across all drive nodes in a multi-drive installation.

At the power supply layer, the UFD402A101 is powered through the drive’s internal APOW-01C or equivalent auxiliary power supply board, which provides regulated low-voltage DC rails to the control electronics. Proper power sequencing and supply stability are prerequisites for the pulse distribution board to initialize correctly and maintain gate signal integrity during transient load conditions.

For system engineers and maintenance teams, the UFD402A101 offers significant advantages in long-term serviceability. Its modular form factor allows replacement within the drive cabinet without disturbing adjacent power modules, reducing mean time to repair in critical production environments. Compatibility with ABB’s DriveWindow and DriveMonitor diagnostic tools enables real-time monitoring of gate signal status, fault history, and module health — supporting predictive maintenance strategies that minimize unplanned downtime.

Architecture Specification Table

Coordinated Control System Design

The 3BHE034872R0101 UFD402A101 achieves its full value only when considered as part of a coordinated drive system architecture. In a typical ACS800 multi-drive installation, the system integrates the following components in a layered control hierarchy:

The RDCU-02C drive control unit serves as the primary CPU, executing the DTC (Direct Torque Control) algorithm and generating the modulation reference for the pulse distribution board. The RMIO-11C motor control and I/O board handles analog and digital I/O interfacing, feeding process signals back to the control layer. The AGDR-81C gate driver board receives the conditioned firing pulses from the UFD402A101 and directly drives the IGBT modules in the power stack.

At the communication layer, the RDCO-02C DDCS communication board establishes the fiber-optic ring that synchronizes the master drive with all follower drives, ensuring that the pulse distribution timing remains consistent across the entire multi-drive system. The APOW-01C auxiliary power supply board provides the stable DC rails required by the UFD402A101 and other control electronics within the cabinet.

For DC drive applications on the DCS800 platform, the UFD402A101 works alongside the SDCS-CON-4 control board and SDCS-POW-4 power supply board, maintaining the same signal distribution architecture adapted for thyristor-based DC drive topologies. In redundant drive configurations, a secondary UFD402A101 can be installed in a hot-standby arrangement, with automatic switchover managed by the system fault detection logic.

Terminal modules such as the NTAC-02 pulse encoder interface and NAIO-03 analog I/O extension boards complete the I/O layer, providing the feedback signals that the control CPU uses to close the speed and torque loops. Together, these components form a tightly integrated control architecture where the UFD402A101 acts as the critical signal distribution node.

Application in Layered Automation Systems

Steel and Metals Processing: In rolling mill drives and coiler/uncoiler systems, the UFD402A101 ensures synchronized torque control across multiple drive axes, maintaining strip tension during high-speed rolling operations. The module’s signal integrity under high EMI conditions makes it a preferred choice for ACS800 multi-drive cabinets in steel plant environments.

Oil, Gas, and Petrochemical: Compressor and pump drive systems in refineries rely on the UFD402A101 for reliable gate signal distribution in variable-speed drive installations. Compatibility with redundant drive architectures supports the high-availability requirements of continuous process operations.

Mining and Mineral Processing: Conveyor drives, hoist systems, and grinding mill drives benefit from the UFD402A101’s ability to maintain consistent firing pulse distribution under heavy load cycling. DCS800-based DC drive systems for winder and hoist applications are a particularly common deployment environment.

Water and Wastewater Treatment: Large pump station drives and aeration blower systems use ACS800 multi-drive configurations where the UFD402A101 provides the pulse distribution backbone for energy-efficient variable-speed operation across multiple parallel pump drives.

Pulp and Paper: Paper machine section drives, where precise speed synchronization between multiple drive sections is critical to paper quality, rely on the DDCS fiber-optic architecture and UFD402A101 pulse distribution to maintain section-to-section speed ratios within tight tolerances.

Architecture Engineering FAQ

Q1: Is the ABB 3BHE034872R0101 UFD402A101 compatible with both ACS800 and DCS800 drive platforms?
A: Yes. The UFD402A101 is designed for use within ABB’s ACS800 multi-drive and DCS800 DC drive cabinet architectures. While the specific installation position and interfacing boards differ between AC and DC drive platforms, the module’s core function — distributing firing pulses from the control unit to the gate driver layer — is consistent across both platforms. Always verify the exact drive type, cabinet configuration, and firmware version with ABB documentation before installation.

Q2: Can the UFD402A101 be replaced without powering down the entire drive system?
A: In most ACS800 multi-drive cabinet configurations, the UFD402A101 is accessible within the control cubicle and can be replaced with minimal disturbance to adjacent modules. However, safe replacement requires isolating the affected drive section and following ABB’s lockout/tagout procedures. Full system shutdown is recommended for first-time replacements. Consult the ACS800 Hardware Manual and relevant safety standards before proceeding.

Q3: What warranty and supply assurance does ZYPLC provide for the 3BHE034872R0101 UFD402A101?
A: ZYPLC provides a 12-Month Warranty on the ABB 3BHE034872R0101 UFD402A101, covering manufacturing defects and functional failures under normal operating conditions. Our inventory is maintained to support rapid dispatch for urgent maintenance and project requirements. For volume orders and long-term supply agreements, contact our technical sales team to discuss availability and lead times.
