ABB 3BHE041294R010 System-Ready Gate Driver for ACS Architecture

ABB 3BHE041294R010 System-Ready Gate Driver for ACS Architecture: Control System Architecture and Upstream-Downstream Coordination

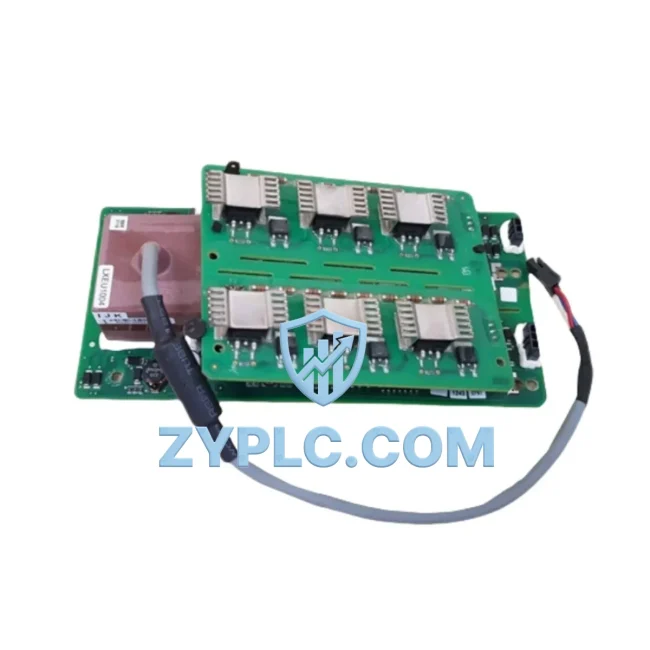

The ABB 3BHE041294R010 GDC806 C103 Gate Driver Control Board is a precision-engineered power electronics interface module designed to operate at the core of ABB’s ACS series medium-voltage and high-power drive architectures. Rather than functioning as a standalone component, this gate driver is conceived as a system-level element — one that bridges the control layer and the power conversion layer, ensuring that IGBT switching commands are translated with microsecond-level accuracy into reliable, thermally stable gate pulses. In modern industrial automation environments, where uptime, signal fidelity, and modular scalability define operational excellence, the 3BHE041294R010 plays a foundational role in maintaining drive system integrity across the full control hierarchy.

Understanding this module requires viewing it within the broader context of a layered automation system. At the control layer, a CPU module such as the ABB RDCU-02C or APBU-44C drive control unit generates PWM switching commands based on real-time feedback from current and voltage sensors. These commands are transmitted through fiber-optic links to the gate driver board, where the 3BHE041294R010 receives, conditions, and amplifies the signals to the voltage and current levels required to drive IGBT gate terminals. The isolation provided by the fiber-optic interface is critical in high-voltage environments, protecting the control electronics from the transient voltages inherent in power conversion stages. This architecture ensures that the control layer remains electrically isolated from the power layer, a fundamental requirement in ACS800, ACS880, and ACS6000 drive platforms.

At the I/O and feedback layer, the gate driver works in close coordination with the AINT-02C or AINP-01C interface boards, which aggregate analog and digital feedback signals from the power stage — including DC bus voltage measurements, IGBT junction temperature readings, and overcurrent fault signals. These feedback paths allow the drive control system to implement real-time protection algorithms, adjusting gate timing or initiating controlled shutdowns when fault conditions are detected. The 3BHE041294R010 is designed to respond to these protection commands within nanoseconds, ensuring that IGBT devices are never exposed to destructive operating conditions. This tight integration between the gate driver and the I/O feedback layer is what enables ABB ACS drives to achieve the high reliability demanded in continuous-process industries.

From a network and communication perspective, the gate driver board operates within a drive system that is typically supervised by a higher-level automation controller — such as an ABB AC500 PLC or a third-party DCS — communicating via PROFIBUS-DP, PROFINET, Modbus TCP, or EtherNet/IP through fieldbus adapter modules like the FPBA-01 or FENA-21. While the 3BHE041294R010 itself does not directly participate in fieldbus communication, its correct operation is essential for the drive to respond accurately to speed and torque references issued by the automation controller. Any degradation in gate driver performance — whether due to aging, thermal stress, or component failure — will manifest as drive instability, which in turn disrupts the entire process control loop.

At the power supply layer, the gate driver board receives its operating power from the drive’s internal auxiliary power supply, typically derived from the APOW-01 or equivalent power supply module within the drive cabinet. Stable auxiliary power is a prerequisite for consistent gate driver operation; voltage ripple or transient interruptions at the auxiliary supply level can cause spurious gate pulses or missed switching events, leading to drive faults. Engineers commissioning ACS series drives should verify auxiliary supply quality as part of the gate driver installation and verification procedure, particularly in installations where the drive cabinet shares a power distribution panel with other high-load equipment.

For human-machine interface and diagnostics, the drive system incorporating the 3BHE041294R010 is typically monitored through an ABB ACS-AP-I or ACS-AP-W control panel, or through the DriveStudio PC tool connected via the RUSB-02 USB adapter. These interfaces allow maintenance engineers to read gate driver fault codes, monitor IGBT temperature trends, and verify switching frequency parameters without interrupting production. In larger installations, the drive’s diagnostic data is integrated into a SCADA or DCS historian, providing long-term trend analysis that supports predictive maintenance strategies.

Architecture Specification Table

Coordinated Control System Design

The 3BHE041294R010 GDC806 C103 achieves its full performance potential only when integrated within a correctly specified ACS drive system architecture. At the control layer, the RDCU-02C drive control unit or the APBU-44C parallel inverter control board generates the PWM reference signals that the gate driver translates into IGBT switching events. The AINT-02C interface board provides the analog measurement inputs — DC bus voltage, phase currents, and temperature — that the control unit uses to implement vector control algorithms and protection logic. Together, these modules form the closed-loop control core of the drive.

At the power stage, the gate driver board interfaces directly with the IGBT power module stack within the ACS drive cabinet. In multi-drive or common DC bus configurations, multiple gate driver boards may operate in parallel, each assigned to a specific IGBT phase leg, with synchronization managed by the APBU-44C parallel control board. This architecture supports the high-current output capability required in applications such as large synchronous motor drives in steel rolling mills or mine hoist systems.

The drive system’s fieldbus connectivity is provided by adapter modules such as the FPBA-01 PROFIBUS adapter or the FENA-21 EtherNet/IP adapter, which plug into the drive control unit’s option slot and enable seamless integration with plant-level DCS or SCADA systems. At the cabinet level, the APOW-01 auxiliary power supply module provides the regulated DC voltages required by the gate driver and other drive electronics. Terminal modules and I/O extension boards within the control cabinet complete the signal routing between the drive and field devices such as encoders, thermistors, and safety relays.

For installations requiring high availability, the ACS drive architecture supports redundant control configurations where a standby control unit can assume control in the event of a primary unit failure. In such architectures, the gate driver board must be verified for compatibility with the redundancy switchover logic implemented in the APBU or RDCU control firmware. ZYPLC recommends maintaining a spare 3BHE041294R010 unit on-site for critical drive applications, supported by our 12-Month Warranty and global parts availability commitment.

Application in Layered Automation Systems

In electric power generation and transmission facilities, the ABB 3BHE041294R010 gate driver is deployed in variable-speed drives controlling boiler feed pumps, induced draft fans, and cooling water pumps. These applications demand continuous operation at varying load points, with the drive system responding to process control commands from the plant DCS within milliseconds. The gate driver’s precise switching control minimizes harmonic distortion injected into the plant power system, supporting compliance with IEEE 519 harmonic limits.

In petrochemical and refinery applications, ACS series drives equipped with the 3BHE041294R010 control compressors, extruders, and large centrifugal pumps in hazardous area installations. The drive system’s ability to implement soft-start and controlled acceleration profiles reduces mechanical stress on process equipment, extending the service life of rotating machinery and reducing unplanned maintenance events. The gate driver’s integrated protection functions — including desaturation detection and short-circuit protection — provide an additional layer of safety in environments where drive faults could trigger process upsets with significant safety and environmental consequences.

In mining and mineral processing, the gate driver supports ACS6000 medium-voltage drives used in grinding mill, conveyor, and hoist applications. These drives operate in harsh environments characterized by high ambient temperatures, dust, and vibration, placing demanding requirements on the reliability of all drive components including the gate driver board. The 3BHE041294R010’s robust design and ABB’s proven ACS platform architecture make it a preferred choice for mine operators seeking to minimize drive-related downtime in high-value production processes.

In water and wastewater treatment, municipal utilities deploy ACS drives with the 3BHE041294R010 to control high-capacity pumping stations and aeration blowers. Energy efficiency is a primary driver in these applications, with the drive system’s variable-speed capability delivering significant reductions in electricity consumption compared to fixed-speed motor operation. The gate driver’s contribution to precise speed regulation ensures that pump and blower output tracks process demand accurately, supporting both energy savings and process quality objectives.

Architecture Engineering FAQ

Q1: Is the ABB 3BHE041294R010 GDC806 C103 compatible with both ACS800 and ACS880 drive platforms, and what should engineers verify before installation?
The 3BHE041294R010 GDC806 C103 is designed for use within specific ABB ACS series drive power modules. Before installation, engineers should verify the exact drive type, power rating, and firmware version against ABB’s hardware compatibility documentation for the target drive cabinet. The gate driver board must be matched to the correct IGBT power module type and the corresponding drive control unit firmware. ZYPLC’s technical team can assist with compatibility verification based on the drive nameplate data and existing hardware configuration.

Q2: What commissioning steps are required when replacing the 3BHE041294R010 gate driver board in an operational ACS drive system?
Replacement of the gate driver board should be performed with the drive fully de-energized and the DC bus discharged to safe voltage levels, following ABB’s lockout/tagout procedures. After physical installation, the drive control unit should be powered up and a gate driver self-test initiated through the drive’s diagnostic menu or DriveStudio tool. Engineers should verify that all IGBT phase legs report correct gate driver status before enabling the drive for motor operation. A no-load test run at reduced speed is recommended to confirm correct switching behavior before returning the drive to full production load.

Q3: What does the 12-Month Warranty from ZYPLC cover for the ABB 3BHE041294R010, and how does it support long-term maintenance planning?
ZYPLC’s 12-Month Warranty covers the ABB 3BHE041294R010 GDC806 C103 against manufacturing defects and premature component failure under normal operating conditions as specified in ABB’s technical documentation. In the event of a warranty claim, ZYPLC provides replacement unit dispatch to minimize drive downtime. For long-term maintenance planning, ZYPLC recommends establishing a spare parts inventory that includes at least one 3BHE041294R010 unit per critical drive installation, supported by our global stock availability and expedited shipping capability. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for warranty registration and spare parts planning support.
