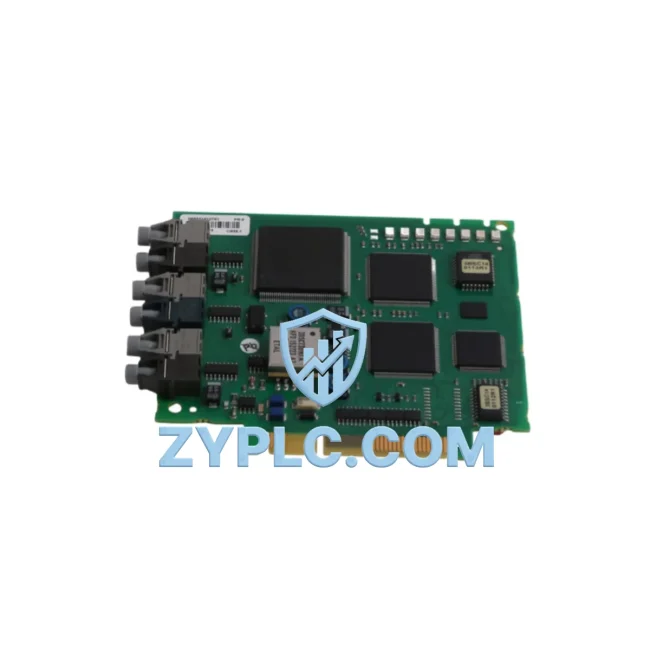

ABB 3BSE018137R1 CI858-1 System-Ready DriveBus Interface for AC800M Architecture

ABB 3BSE018137R1 CI858-1 System-Ready DriveBus Interface for AC800M Architecture

The ABB 3BSE018137R1 CI858-1 DriveBus Interface Module is a purpose-engineered communication component designed for seamless integration within the ABB AC800M Distributed Control System (DCS) architecture. In modern industrial automation environments — spanning power generation, petrochemical processing, water treatment, metallurgy, and advanced manufacturing — the integrity of the communication layer between the controller and drive systems is fundamental to operational continuity. The CI858-1 fulfills this role by providing a dedicated DriveBus communication channel that connects the AC800M controller platform directly to ABB drive systems, enabling synchronized, real-time command and feedback exchange across the full control hierarchy.

Unlike generic fieldbus adapters, the CI858-1 is engineered specifically for the AC800M backplane ecosystem, ensuring deterministic signal timing, low-latency command propagation, and full compatibility with the ABB System 800xA engineering environment. This contextual integration capability allows control engineers to configure, monitor, and diagnose drive communication parameters directly from the DCS engineering station — eliminating the need for standalone drive commissioning tools and reducing overall system complexity. With a 12-Month Warranty covering all supplied units, procurement teams and maintenance engineers can plan long-term spares strategies with confidence.

Architecture Specification Table

Coordinated Control System Design

The CI858-1 does not operate in isolation — its value is realized through its position within a coordinated, multi-layer control architecture. At the controller layer, the AC800M CPU modules such as the PM864A or PM866K01 serve as the central processing units that execute control logic and issue drive commands via the DriveBus channel managed by the CI858-1. These CPU modules reside on the same S800 backplane, communicating with the CI858-1 through the internal backplane bus at deterministic cycle times.

At the I/O layer, modules such as the AI810 analog input module and DI810 digital input module feed process signals — motor current feedback, speed references, fault status — into the AC800M controller, where they are correlated with drive status data received through the CI858-1. This closed-loop signal architecture ensures that the controller always has a complete picture of both process conditions and drive operational state.

For network and supervisory integration, the CI854A PROFIBUS DP communication interface or the CI873 PROFINET interface module can be installed alongside the CI858-1 on the same controller rack, enabling the AC800M to simultaneously manage DriveBus-connected drives and communicate upstream with SCADA systems or MES platforms via standard industrial Ethernet or fieldbus protocols. This multi-protocol coexistence is a hallmark of the AC800M architecture’s flexibility.

Power integrity is maintained through the SD821 or SD822 power supply modules, which provide stable 24 VDC to the backplane and all installed modules including the CI858-1. In redundant power configurations, dual power supply modules ensure that a single power supply failure does not interrupt drive communication — a critical requirement in continuous process industries such as petrochemical refining or pulp and paper production.

At the human-machine interface layer, ABB PP865 or PP886 operator panels connected to the System 800xA environment provide real-time visualization of drive parameters, speed setpoints, torque feedback, and fault diagnostics — all sourced through the CI858-1 communication path. Maintenance engineers can acknowledge drive faults, adjust speed references, and monitor energy consumption directly from the HMI without accessing individual drive control panels.

For terminal and wiring infrastructure, TB820V2 ModuleBus modem modules and TK851V010 cable assemblies complete the physical layer of the DriveBus network, ensuring reliable fiber optic signal transmission between the CI858-1 and remote drive cabinets across distances typical in large industrial facilities.

Application in Layered Automation Systems

Manufacturing & Packaging Lines: In high-speed packaging and assembly lines, the CI858-1 enables the AC800M controller to coordinate multiple variable-speed drives controlling conveyor belts, filling stations, and labeling units. The DriveBus communication ensures that speed synchronization commands are delivered with sub-millisecond consistency, preventing product jams and maintaining line throughput targets.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, the CI858-1 interfaces the AC800M with large ACS800 drives controlling boiler feed pumps, cooling water pumps, and turbine auxiliary systems. The deterministic DriveBus communication ensures that load-following commands from the plant DCS are executed precisely, supporting grid frequency regulation requirements.

Petrochemical & Refinery Applications: Refinery process units rely on precise flow control through variable-speed pump and compressor drives. The CI858-1 provides the communication backbone that allows the AC800M to implement advanced process control (APC) strategies — adjusting drive speeds in response to real-time flow, pressure, and temperature measurements — without the latency penalties associated with conventional analog speed references.

Water & Wastewater Treatment: Municipal water treatment facilities use the CI858-1 to integrate AC800M controllers with drives on aeration blowers, sludge pumps, and filtration systems. The module’s ability to report drive energy consumption data back to the DCS supports energy optimization programs and regulatory reporting requirements.

Mining & Metallurgy: In ore processing and smelting operations, the CI858-1 connects the AC800M to high-power drives on crushers, mills, and conveyor systems. The robust DDCS fiber optic communication is immune to the severe electromagnetic interference present in these environments, ensuring reliable control even in the most electrically noisy industrial settings.

Architecture Engineering FAQ

Q1: How many drives can the CI858-1 control simultaneously, and what is the maximum cable distance?
The CI858-1 supports up to 12 drives per module connected via DDCS fiber optic links. The maximum fiber optic cable distance between the CI858-1 and each connected drive is typically up to 50 meters using standard plastic optical fiber (POF), or significantly longer with glass optical fiber (GOF) — making it suitable for both compact control rooms and distributed drive cabinet installations across large plant floors.

Q2: Is the CI858-1 compatible with both redundant and non-redundant AC800M controller configurations?
Yes. The CI858-1 can be installed in both standard (non-redundant) and redundant AC800M controller configurations. In redundant setups, the active controller manages DriveBus communication through the CI858-1, while the standby controller maintains a synchronized state. Upon controller failover, DriveBus communication is re-established by the standby controller within the system’s configured switchover time, minimizing process disruption. All units supplied are covered by a 12-Month Warranty and are tested for compatibility with redundant architectures prior to shipment.

Q3: What engineering tools are required to configure and commission the CI858-1 within an AC800M system?
The CI858-1 is configured using ABB Control Builder M (CBM) software, which is the standard engineering tool for the AC800M platform. Within CBM, the CI858-1 appears as a hardware object in the controller configuration tree, and individual drive nodes are added as sub-objects with their respective DriveBus node addresses. No separate drive-specific configuration tool is required for basic speed and torque reference configuration — the full Contextual Integration capability of the System 800xA environment allows drive parameters to be managed from the central engineering station, significantly reducing commissioning time and long-term maintenance overhead.
