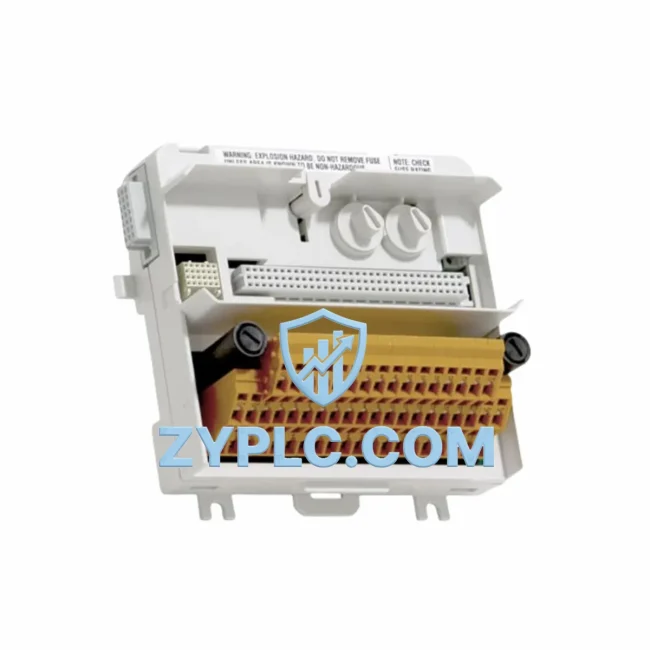

ABB 3BSE038726R1 Energy-Saving Terminal Unit for Optimized S800 Automation
The ABB 3BSE038726R1 (TU810V1) is a high-precision terminal unit engineered for the ABB S800 I/O system, a cornerstone of the AC 800M distributed control platform. In modern industrial facilities where energy accountability is no longer optional, this terminal unit plays a critical role in structuring a lean, responsive, and measurable I/O architecture. By providing a reliable, low-resistance connection point between field wiring and I/O modules, the 3BSE038726R1 eliminates signal degradation that can cause false readings, unnecessary actuator cycling, and wasted drive energy across the production line.
When integrated into a well-designed control cabinet alongside the ABB PM891 processor module, the TU810V1 ensures that every I/O signal — whether from a temperature transmitter, flow sensor, or motor feedback loop — is captured with minimal latency and maximum fidelity. This directly supports the energy monitoring layer of the plant, where accurate data is the foundation of every optimization decision. Inaccurate field signals lead to overcorrection by drives and actuators, which translates directly into excess energy consumption and accelerated mechanical wear.
Efficiency Performance Table
| Parameter |
Specification / Value |
| SKU / Part Number |
3BSE038726R1 (TU810V1) |
| Brand |
ABB |
| Series |
S800 I/O / AC 800M |
| Product Category |
Terminal Unit |
| Origin |
Germany (DE) |
| Compatible Systems |
AC 800M, S800 I/O Modules (AI810, AO810V2, DI810, DO810) |
| Application Environment |
DCS, Process Automation, Energy Management Systems |
| Signal Integrity |
Low-resistance field termination, minimizes signal loss |
| Energy Optimization Value |
Reduces actuator overcorrection, supports accurate drive feedback |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Tested Before Shipment |
Energy-Aware Automation Architecture
The 3BSE038726R1 terminal unit is designed to mount I/O modules such as the ABB AI810 analog input module and the AO810V2 analog output module directly onto the DIN rail, creating a compact and thermally efficient I/O cluster. In energy-intensive processes — such as compressor control, pump management, or HVAC regulation — the AI810 collects real-time process variables (pressure, temperature, flow) and feeds them through the TU810V1 into the AC 800M controller. The controller then issues corrective signals via the AO810V2 to variable frequency drives, trimming motor speed to match actual process demand rather than running at fixed setpoints.
For discrete control loops, the ABB DI810 digital input module and DO810 digital output module pair with the TU810V1 to manage on/off actuators, solenoid valves, and motor contactors. Precise digital switching — enabled by the clean termination that the 3BSE038726R1 provides — prevents contact bounce and false triggering, both of which can cause unnecessary motor starts and associated inrush current spikes that inflate energy bills and stress electrical infrastructure.
Communication between the I/O cluster and the plant-wide SCADA or energy management system is handled through the ABB CI854AK01 PROFIBUS DP interface module, which also mounts on a compatible terminal unit base. This fieldbus connectivity allows the AC 800M to report real-time energy consumption data — aggregated from motor drives, heating elements, and compressed air systems — to the supervisory layer, enabling operators to identify inefficiency hotspots without manual inspection. The ABB TP830 cluster modem further extends communication reach in distributed plant layouts, ensuring that remote I/O stations contribute to the central energy dashboard without signal degradation over distance.
Power distribution within the S800 I/O rack is managed by the ABB SS832 power voting unit, which provides redundant 24 VDC supply to the I/O modules. Redundant power architecture eliminates unplanned shutdowns caused by power supply failures — a common source of production interruptions that force emergency restarts, wasting both energy and production time. The TU830V1 terminal unit, a companion base in the S800 family, can be deployed in adjacent slots to expand the I/O cluster without requiring additional cabinet space or rewiring.
Power Optimization in Real Production Lines
In a typical continuous process plant — such as a chemical dosing system or a water treatment facility — the ABB 3BSE038726R1 sits at the intersection of field instrumentation and control logic. Flow transmitters wired to the AI810 via the TU810V1 provide the AC 800M PM891 processor with accurate volumetric data every scan cycle. The controller compares this against setpoint and issues a 4–20 mA correction signal through the AO810V2 to the variable frequency drive controlling the feed pump. Because the terminal unit maintains clean, low-impedance connections, the analog signal chain is free of noise-induced drift — meaning the drive receives accurate commands and does not hunt between speed setpoints, a behavior that wastes energy and causes premature bearing wear.
Predictive maintenance is another dimension where the 3BSE038726R1 contributes to energy savings. By ensuring reliable signal transmission from vibration sensors and motor temperature probes connected through the DI810, the AC 800M can detect early signs of bearing degradation or winding overheating. Maintenance teams receive alerts before failure occurs, allowing scheduled intervention rather than emergency replacement. Unplanned downtime is one of the largest hidden energy costs in manufacturing — restarting cold processes, purging lines, and re-establishing thermal equilibrium all consume disproportionate energy compared to steady-state operation.
Every unit of ABB 3BSE038726R1 supplied by ZYPLC is sourced from verified channels, inspected upon receipt, and functionally tested before shipment. This ensures that the terminal unit performs to ABB factory specifications from day one of installation, with no latent defects that could introduce signal errors into the energy monitoring chain. A 12-month warranty covers all units, providing procurement teams with the confidence to plan long-term maintenance budgets without contingency for early component failure.
Energy Optimization FAQ
Q1: How does the ABB 3BSE038726R1 contribute to energy savings in a DCS environment?
The TU810V1 terminal unit ensures low-resistance, noise-free field termination for S800 I/O modules. Accurate signal transmission prevents control overcorrection by drives and actuators, directly reducing unnecessary energy consumption in motor-driven processes.
Q2: Is the 3BSE038726R1 compatible with all S800 I/O modules?
Yes. The TU810V1 is designed as the standard terminal base for the ABB S800 I/O family, including the AI810, AO810V2, DI810, and DO810 modules. It is fully compatible with the AC 800M control platform and supports PROFIBUS DP communication via the CI854AK01 interface module.
Q3: Can the 3BSE038726R1 replace an existing terminal unit without rewiring?
In most cases, yes. The TU810V1 uses a standard DIN rail mounting and field wiring connector format consistent with the S800 I/O system. Replacement requires no changes to field wiring, making it a low-disruption swap that minimizes production downtime during maintenance windows.
Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All ABB 3BSE038726R1 units supplied by ZYPLC are functionally tested to verify signal path integrity and mechanical connector condition before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with direct support available through our technical team.
