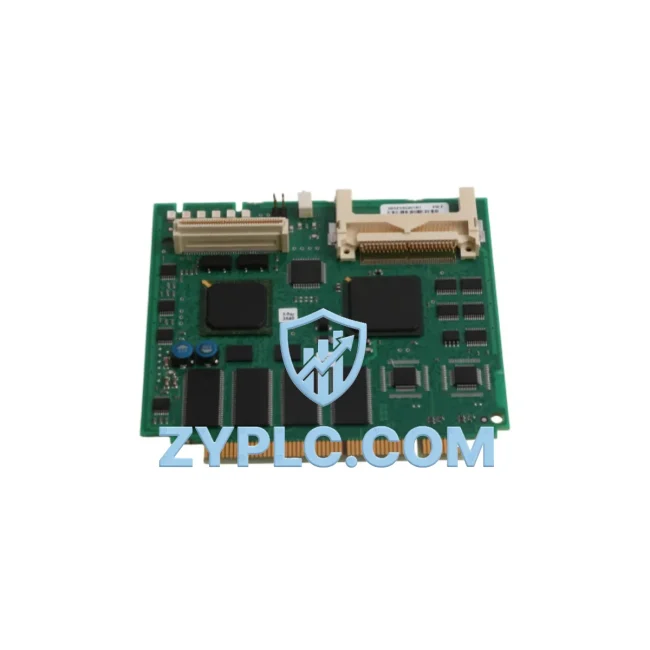

ABB 3BSE050201R1 PM866-2 System-Ready Redundant Processor for AC800M Architecture

ABB 3BSE050201R1 PM866-2 System-Ready Redundant Processor for AC800M Architecture

The ABB 3BSE050201R1 PM866-2 is a high-performance redundant processor module engineered specifically for the AC800M Distributed Control System platform. Within a layered automation architecture, this module occupies the critical control layer, serving as the computational core that coordinates signal acquisition from the I/O layer, executes control logic, manages communication across the network layer, and delivers real-time command outputs to the execution layer. Its redundant design ensures that no single point of failure can interrupt process continuity, making it an essential component in high-availability control system designs across demanding industrial environments.

Designed for Contextual Integration, the PM866-2 operates seamlessly within the broader AC800M ecosystem, enabling engineers to build scalable, maintainable, and fault-tolerant control architectures without compromising system coherence. Whether deployed in a greenfield installation or integrated into an existing control cabinet alongside legacy modules, this processor maintains full compatibility with the AC800M backplane and communication infrastructure, reducing engineering overhead and commissioning time.

Architecture Specification Table

Coordinated Control System Design

The PM866-2 does not function in isolation — its value is fully realized when integrated within a complete AC800M control system architecture. At the power layer, the TP830 Power Supply and TB820V2 Power Distribution Unit provide stable, conditioned power to the processor backplane, ensuring that voltage fluctuations at the cabinet level do not propagate into the control logic. The PM866-2 communicates with remote I/O stations via the CI854 PROFIBUS DP Communication Interface, enabling deterministic data exchange with field devices across distances typical of large process plants.

On the I/O layer, modules such as the AI810 Analog Input Module and DO810 Digital Output Module feed real-time process values into the PM866-2’s execution environment, where control algorithms process signals and generate output commands within defined scan cycles. For applications requiring intrinsically safe field connections, the SD821 Signal Distributor and associated barrier modules extend the system’s reach into hazardous areas without compromising the integrity of the control layer.

Network-layer connectivity is managed through the CI873 IEC 61850 Communication Interface for substation automation applications, or through standard Ethernet ports for integration with SCADA systems and historian servers via OPC-DA or OPC-UA protocols. The SC510 Supervisory Computer Interface further bridges the gap between the AC800M control layer and plant-level MES or ERP systems, enabling Contextual Integration across the full automation hierarchy.

For human-machine interface requirements, the PM866-2 pairs naturally with ABB Panel 800 HMI terminals, which connect via Ethernet and provide operators with real-time visualization of process states, alarm management, and trend data. In redundant configurations, a second PM866-2 module operates in hot-standby mode, with bumpless switchover occurring in milliseconds upon detection of a primary processor fault — a capability critical in continuous process industries where even brief interruptions carry significant operational and safety consequences.

Application in Layered Automation Systems

The ABB 3BSE050201R1 PM866-2 is deployed across a wide range of industrial sectors where system reliability, scalability, and long-term maintainability are non-negotiable requirements.

In power generation and electrical substation environments, the PM866-2 manages turbine control sequences, excitation system interlocks, and protection relay coordination, operating in redundant pairs to meet the availability targets mandated by grid operators. Its IEC 61850 communication capability allows direct integration with digital protection relays and bay control units without the need for protocol converters.

In oil, gas, and petrochemical facilities, the module serves as the primary controller for distillation column regulation, compressor surge control, and pipeline pressure management. Its ability to execute complex PID and advanced process control strategies within a single redundant platform reduces the number of controllers required per unit, simplifying cabinet layouts and reducing lifecycle maintenance costs.

For water and wastewater treatment plants, the PM866-2 coordinates pump sequencing, chemical dosing, and filtration cycle management across geographically distributed stations, communicating with remote I/O nodes via PROFIBUS DP or Modbus TCP over fiber-optic infrastructure. The module’s wide operating temperature range and robust EMC performance make it suitable for installation in outdoor or semi-outdoor control enclosures.

In mining, metallurgy, and mineral processing applications, the PM866-2 controls conveyor systems, crusher sequencing, flotation cell management, and smelter process regulation. Its redundant architecture ensures that ore processing lines remain operational even during planned maintenance windows, with the standby processor assuming control transparently while the primary unit is serviced.

Across packaging, food and beverage, and discrete manufacturing production lines, the module integrates with servo drives, vision systems, and robotic cells via high-speed Ethernet, enabling coordinated motion and process control within a unified AC800M architecture. Engineers benefit from a single programming environment, consistent diagnostic tools, and a unified spare parts strategy — all of which reduce total cost of ownership over the system’s operational life.

Architecture Engineering FAQ

Q1: Is the PM866-2 (3BSE050201R1) compatible with existing AC800M controller cabinets and backplanes?
Yes. The PM866-2 is designed for direct installation into the AC800M controller backplane and is compatible with the full range of AC800M I/O modules, communication interfaces, and power supply units. It supports the standard AC800M CEX-Bus architecture, allowing engineers to expand I/O capacity by adding remote I/O stations without modifying the existing cabinet layout. Firmware compatibility should be verified against the installed Control Builder M version prior to commissioning.

Q2: How does the redundant processor architecture work, and what is the switchover behavior during a fault?
In a redundant PM866-2 configuration, two processor modules operate simultaneously — one as the active primary and one as the hot-standby secondary. Both processors execute the same control program and maintain synchronized memory states via the redundancy link. Upon detection of a primary processor fault, the standby module assumes control within milliseconds in a bumpless transfer, with no interruption to I/O scanning or communication cycles. This architecture meets the availability requirements of SIL-rated and high-uptime process applications.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
Every ABB 3BSE050201R1 PM866-2 supplied by ZYPLC is covered by a 12-Month Warranty from the date of dispatch, covering manufacturing defects and functional failures under normal operating conditions. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sales troubleshooting assistance. For long-term maintenance planning, we maintain stock of compatible AC800M modules to support rapid replacement requirements, minimizing unplanned downtime exposure for your control system.
