ABB 3HAC021127-001 RV Gear Module: Precision Drivetrain for IRB6600 Industrial Robot Systems

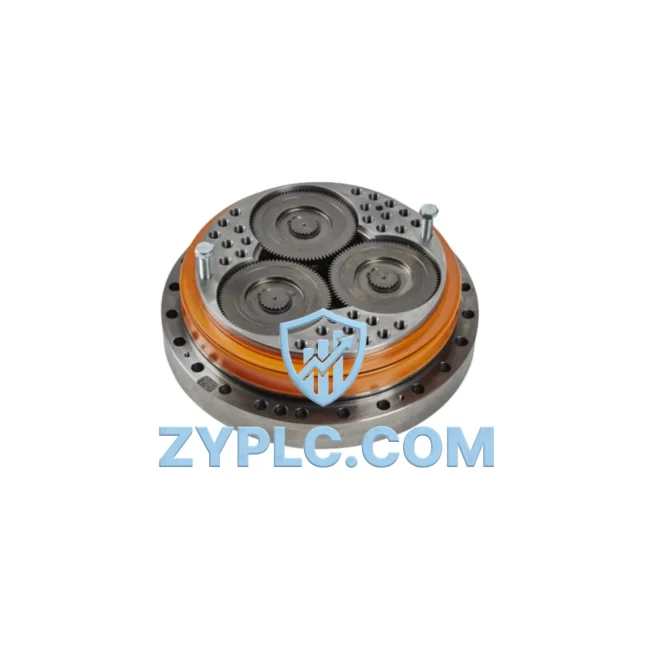

The ABB 3HAC021127-001 is a high-efficiency RV (Rotate Vector) Gear Module engineered specifically for the ABB IRB6600 series of heavy-duty industrial robots. As a core mechanical transmission component, this gear unit sits at the heart of the robot’s joint axis drivetrain, converting servo motor torque into precise, high-reduction rotational output that governs the robot’s positional accuracy, repeatability, and load-bearing performance across demanding manufacturing environments.

In modern smart factory deployments, the mechanical integrity of the robot drivetrain is inseparable from the performance of the surrounding automation data network. The IRB6600 robot — equipped with this RV gear module — operates under continuous command from the ABB IRC5 Robot Controller, which processes real-time motion instructions delivered via EtherNet/IP and PROFINET industrial communication protocols. Any degradation in gear performance is immediately reflected in servo feedback loops monitored by the IRC5’s integrated motion control board, triggering alarm signals that propagate through the plant’s SCADA and DCS layers for remote diagnostics and predictive maintenance scheduling.

The 3HAC021127-001 supports axis joints where high torque density and zero-backlash transmission are non-negotiable — typical in automotive body welding lines, heavy payload palletizing cells, and large-part assembly stations where the IRB6600’s 150–200 kg payload capacity is fully utilized. Replacement or upgrade of this gear unit restores the robot’s rated repeatability of ±0.05 mm, ensuring that downstream quality inspection systems — including vision sensors and laser measurement modules integrated via ABB Ability™ Connected Services — receive geometrically accurate part positioning data.

Network Communication & System Integration Table

Connected Automation Data Flow

Understanding the 3HAC021127-001’s role requires mapping the full automation data chain in which the IRB6600 operates. At the field level, servo drives — typically ABB DSQC 601 or DSQC 663 drive units — receive velocity and torque commands from the IRC5 motion controller and transmit them to the axis motors. The RV gear module then mechanically amplifies and redirects this torque to the robot joint with high reduction ratios, enabling smooth, load-stable movement even at maximum payload.

Encoder feedback from the joint motor passes back through the ABB SMB (Serial Measurement Board) — typically the 3HAC14550-2 — which serializes resolver data and returns it to the IRC5 for closed-loop position correction. This feedback loop runs at millisecond cycle times, and any mechanical wear in the gear unit introduces micro-vibrations that the SMB detects as position jitter, flagging a maintenance event in the robot’s event log.

At the cell controller level, the IRC5 communicates with a PLC — commonly a Siemens S7-1500 or Allen-Bradley ControlLogix — via PROFINET or EtherNet/IP, coordinating robot motion with conveyor drives, fixture clamps, and weld controllers. The PLC aggregates cell-level I/O status and forwards production data upward to the plant’s MES (Manufacturing Execution System) and SCADA layer, where operators monitor cycle times, fault codes, and OEE metrics on HMI panels such as the ABB CP600 or Siemens TP1200 Comfort.

Remote diagnostics are enabled through ABB Ability™ Connected Services, which uses OPC-UA over industrial Ethernet to stream robot health data — including joint torque trends, temperature readings, and gear wear indicators — to cloud-based analytics dashboards. This allows maintenance engineers to schedule gear module replacement proactively, minimizing unplanned downtime in high-throughput production lines. Edge gateways such as the ABB Edge Connect or third-party Moxa MGate protocol converters bridge legacy fieldbus segments to the Ethernet backbone, ensuring that even older plant infrastructure can participate in the connected diagnostics ecosystem.

Solving Data Isolation and Mechanical Downtime in Industrial Sites

One of the most persistent challenges in large-scale robot deployments is the disconnect between mechanical component health and the plant’s digital monitoring infrastructure. When an RV gear unit degrades silently — without triggering a hard fault — production quality drifts before operators identify the root cause. The 3HAC021127-001, when maintained to OEM specification and replaced with a genuine ABB part, eliminates this ambiguity: the IRC5’s torque monitoring algorithms can establish accurate baseline signatures for a healthy gear unit, enabling deviation-based predictive alerts rather than reactive breakdown responses.

For plants running mixed robot fleets — combining IRB6600 units with smaller models such as the ABB IRB4600 or IRB6700 — standardizing on genuine ABB drivetrain components ensures that the IRC5 fleet management software maintains consistent diagnostic models across all axes. This uniformity is critical when SCADA systems aggregate fault data from dozens of robots simultaneously: inconsistent component specifications introduce noise into the predictive maintenance dataset, reducing the accuracy of AI-driven maintenance scheduling tools.

Protocol fragmentation is another common barrier. Plants where robot controllers communicate via DeviceNet while the MES layer expects Modbus TCP data require gateway devices to translate between protocols in real time. Ensuring the robot’s mechanical components — including the RV gear module — perform within specification reduces the frequency of emergency stops that cascade into protocol timeout errors at the gateway layer, preserving network stability across the entire automation pyramid.

Industrial Connectivity FAQ

Q1: Is the ABB 3HAC021127-001 compatible with all IRC5 controller variants?
Yes. The 3HAC021127-001 RV Gear Module is designed for the IRB6600 robot family and is mechanically compatible with all IRC5 single-cabinet and dual-cabinet controller configurations. The IRC5’s motion control software automatically adapts servo parameters to the gear ratio of this module upon axis calibration.

Q2: How does gear unit replacement affect SCADA and remote monitoring continuity?
Replacing the gear module requires an axis calibration procedure using the IRC5 FlexPendant and the robot’s calibration pendulum. Once calibration is complete, the updated joint parameters are automatically reflected in ABB Ability™ Connected Services and any OPC-UA data streams feeding the plant SCADA, ensuring monitoring continuity without manual reconfiguration of the network layer.

Q3: What is the warranty and testing standard for this unit?
Every 3HAC021127-001 supplied by ZYPLC carries a 12-month warranty and undergoes pre-shipment functional testing to verify torque transmission integrity, backlash within OEM tolerance, and seal condition. Test records are available upon request for quality audit purposes.

Q4: Can this gear module be integrated into a predictive maintenance program?
Yes. When installed in an IRB6600 connected to ABB Ability™ or a third-party SCADA platform via OPC-UA, the IRC5 controller continuously logs joint torque, speed deviation, and temperature data. These parameters serve as the primary health indicators for the RV gear unit, enabling data-driven replacement scheduling that aligns with planned maintenance windows rather than unplanned production stops.
