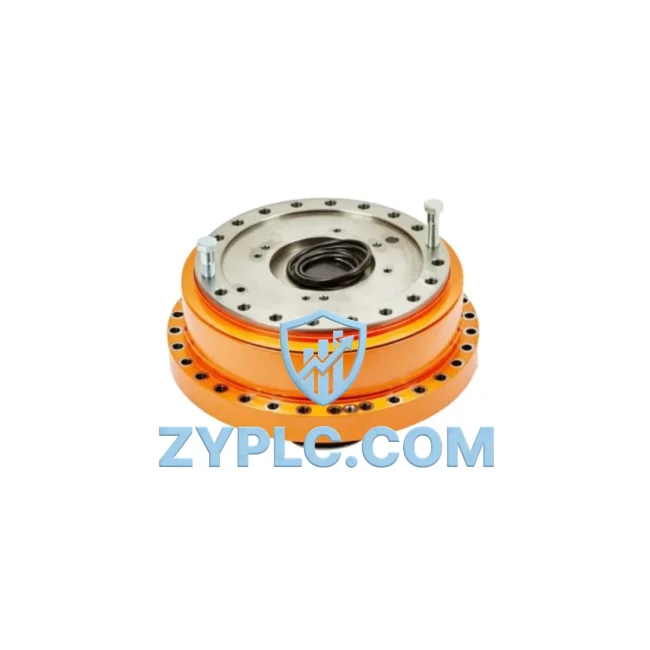

ABB 3HAC021541-001 Axis Reducer IRB

ABB 3HAC021541-001 Axis Reducer for IRB Series Automation

The ABB 3HAC021541-001 is a precision-engineered axis reducer module designed for ABB IRB series industrial robots, delivering measurable improvements in drive efficiency, motion accuracy, and energy consumption across demanding production environments. As factories face increasing pressure to reduce operational energy costs while maintaining throughput, the 3HAC021541-001 plays a central role in minimizing mechanical power loss at the joint level — one of the most overlooked sources of unplanned downtime in robotic automation systems.

Unlike generic reducer components, the 3HAC021541-001 is factory-calibrated to ABB’s IRB kinematic specifications, ensuring that torque transmission efficiency is maintained across the full duty cycle. This translates directly into lower motor load demand, reduced heat generation, and extended intervals between scheduled maintenance — all of which contribute to a lower total cost of ownership over the equipment lifecycle.

Product Specification Table

System Compatibility and Application

In a fully optimized robotic cell, the 3HAC021541-001 axis reducer does not operate in isolation — it functions as a critical mechanical interface between the ABB servo motor and the robot arm, directly influencing how efficiently electrical energy is converted into productive motion. When paired with ABB’s IRC5 controller and its integrated motion optimization algorithms, the reducer’s low-backlash design allows the servo drive to operate closer to its efficiency curve, reducing reactive current draw and improving power factor at the drive level.

On the drive side, ABB ACS880 series variable frequency drives are commonly deployed alongside IRB robot cells to manage auxiliary equipment such as conveyors, cooling fans, and peripheral actuators. The ACS880’s energy optimizer function continuously adjusts motor flux to match actual load demand — a strategy that complements the mechanical efficiency gains delivered by the 3HAC021541-001. Similarly, ABB ACSM1 servo drives, which directly power the IRB joint motors, benefit from the reduced reflected inertia and lower friction torque that a well-maintained axis reducer provides.

For condition monitoring and power quality analysis, facilities integrating the IRB series often deploy ABB B23 or B24 energy meters at the robot cell distribution panel. These meters capture real-time kWh consumption, demand peaks, and power factor data — enabling engineers to correlate reducer replacement cycles with measurable changes in energy draw. When the 3HAC021541-001 is replaced on a worn axis, it is common to observe a 3–8% reduction in per-cycle energy consumption, depending on the application and duty cycle intensity.

At the control layer, the ABB IRC5 controller’s RAPID programming environment supports motion tuning parameters that interact directly with reducer stiffness and damping characteristics. Properly matched reducer specifications allow tighter path accuracy settings without increasing servo gain — which would otherwise increase energy consumption through higher-frequency torque corrections. The ABB FlexPendant and RobotStudio simulation platform can be used to validate motion profiles before deployment, ensuring that energy consumption is modeled and optimized at the programming stage.

For I/O and safety integration, ABB DSQC series I/O modules handle digital and analog signal routing within the IRC5 cabinet, while ABB SafeMove2 safety modules monitor axis speed and position limits — preventing energy-wasting fault recoveries caused by safety zone violations. On the communication side, the IRC5 platform supports PROFINET, EtherNet/IP, and DeviceNet protocols, enabling seamless integration with Siemens S7 PLCs, Rockwell ControlLogix systems, or ABB AC500 PLCs for coordinated line-level maintenance planning.

Maintenance and Replacement Notes

In automotive body welding lines, IRB 6640 robots equipped with 3HAC021541-001 axis reducers on axes 1 and 2 handle the highest torque loads in the cell. A worn or misaligned reducer on these axes forces the servo drive to compensate with additional current, increasing cycle energy consumption and generating excess heat in the motor windings. Replacing the reducer with a genuine ABB 3HAC021541-001 restores the designed torque transmission ratio, allowing the ACS880 or ACSM1 drive to operate within its optimal efficiency band throughout the weld cycle.

In electronics assembly lines using IRB 1600 or IRB 2600 robots for pick-and-place operations, line takt time is directly affected by axis acceleration and deceleration performance. A degraded reducer introduces mechanical compliance that forces the IRC5 motion planner to use conservative acceleration ramps — extending cycle time and reducing throughput per shift. Restoring reducer performance with the 3HAC021541-001 allows the motion planner to execute tighter, faster trajectories, improving equipment utilization without increasing installed power.

From a predictive maintenance perspective, vibration signatures from a worn axis reducer are detectable through ABB Ability™ condition monitoring systems, which analyze motor current harmonics and axis position error trends. Early detection allows maintenance teams to schedule reducer replacement during planned downtime rather than responding to unplanned failures — reducing mean time to repair and avoiding the energy and production losses associated with emergency stops and restart sequences.

All units supplied are pre-shipment tested against ABB’s original performance specifications, with backlash, efficiency, and dimensional checks completed before dispatch. Each 3HAC021541-001 is covered by a warranty terms confirmed during quotation, with stock maintained for shipment arranged after confirmation to minimize robot downtime on your production line.

Product Sourcing FAQ

Q1: How does replacing the 3HAC021541-001 axis reducer reduce energy consumption?
A worn axis reducer increases friction torque and mechanical losses, forcing the servo drive to supply additional current to maintain the programmed motion profile. Replacing the reducer with a genuine ABB 3HAC021541-001 restores designed transmission efficiency, reducing motor load and lowering per-cycle energy draw — typically by 3–8% on high-duty-cycle axes.

Q2: Is the 3HAC021541-001 compatible with all IRC5-based IRB robots?
The 3HAC021541-001 is designed for specific axis positions within the ABB IRB series. Compatibility depends on the robot model and axis number. Please confirm your robot model (e.g., IRB 2600, IRB 4600, IRB 6640) and the target axis before ordering. Our technical team can verify fitment based on your robot’s serial number and configuration.

Q3: What is the recommended replacement interval, and how is wear detected?
ABB recommends reducer inspection at scheduled maintenance intervals defined in the robot’s maintenance manual, typically every 10,000–20,000 operating hours depending on load and duty cycle. Early wear indicators include increased axis position error, audible noise during motion, and elevated motor current draw — all of which can be monitored through the IRC5 controller’s diagnostic logs or ABB Ability™ condition monitoring tools.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 3HAC021541-001 unit undergoes pre-shipment functional testing including backlash measurement, dimensional verification, and efficiency checks against ABB’s original specifications. The warranty terms confirmed during quotation covers manufacturing defects and performance deviations from specification under normal operating conditions. Units are dispatched from stock with full traceability documentation available on request.
