ABB 3HAC021729-001 System-Ready Motor with Pinion for IRB4400 Architecture

ABB 3HAC021729-001 System-Ready Motor with Pinion for IRB4400 Architecture

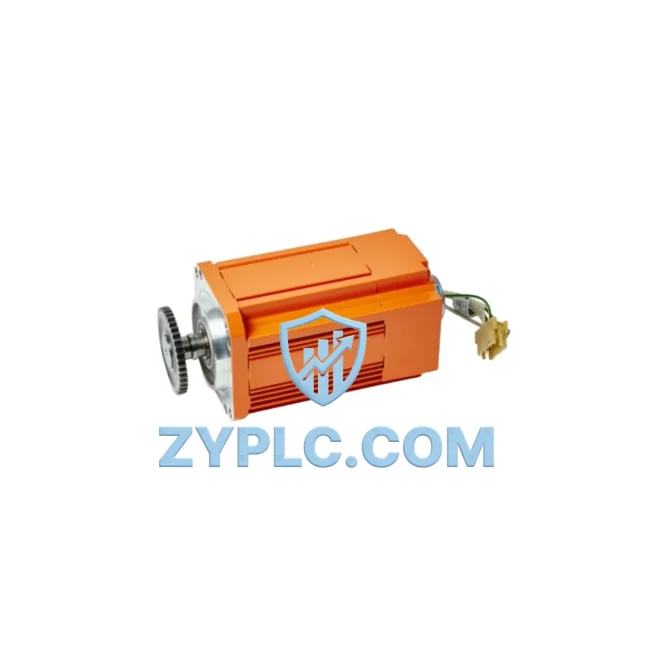

The ABB 3HAC021729-001 Motor with Pinion is a precision-engineered drive component designed for seamless integration within the IRB4400 robotic control architecture. In modern industrial automation, the reliability of a complete robot system depends not only on the controller and software layer, but equally on the mechanical and electromechanical components that translate control signals into physical motion. The 3HAC021729-001 occupies a critical position in this chain — serving as the primary actuator interface between the ABB IRC5 or S4C+ controller platform and the mechanical arm structure of the IRB4400 series.

Designed to operate within ABB’s tightly integrated motion control ecosystem, this motor module ensures that torque delivery, positional feedback, and thermal management remain consistent across the full operational envelope of the robot. Whether deployed in high-cycle automotive welding lines, precision material handling systems, or continuous-process manufacturing environments, the 3HAC021729-001 maintains the signal integrity and mechanical repeatability that ABB’s architecture demands.

Architecture Specification Table

Coordinated Control System Design

The 3HAC021729-001 does not function in isolation — its value is realized only when considered as part of a coordinated control system architecture. In a fully configured IRB4400 installation, this motor module interfaces directly with the ABB IRC5 Controller via the servo drive chain, receiving motion commands processed through the DSQC661 Drive Unit or equivalent axis drive board. The drive unit translates high-level trajectory commands from the ABB RAPID motion program into precise current waveforms delivered to the motor windings.

Upstream of the drive layer, the ABB DSQC1000 Main Computer Unit manages real-time path planning, collision avoidance, and multi-axis synchronization. The 3HAC021729-001 receives its motion profile through this coordinated chain, ensuring that positional accuracy is maintained even during high-speed, multi-axis interpolation. The motor’s integrated pinion meshes directly with the gearbox assembly — a design that eliminates coupling backlash and preserves the sub-millimeter repeatability that IRB4400 systems are specified for.

On the power supply side, the ABB DSQC609 Power Supply Unit provides regulated DC bus voltage to the drive modules, while the 3HAC17336-1 capacitor module buffers transient energy demands during rapid acceleration and deceleration cycles. This energy management architecture protects both the motor and the drive electronics from voltage spikes that could otherwise cause premature component failure.

For system safety and emergency stop compliance, the 3HAC021729-001 operates within the safety architecture governed by the ABB DSQC643 Safety Board, which monitors axis torque limits, speed envelopes, and brake engagement status. The motor’s brake circuit — controlled via the 3HAC17394-1 brake release unit — ensures that all axes are mechanically locked during power-off states, preventing uncontrolled movement during maintenance or emergency conditions.

In multi-robot cell configurations, the IRB4400 system communicates with upstream SCADA or MES platforms via PROFIBUS-DP or DeviceNet fieldbus interfaces, with the ABB DSQC658 Fieldbus Adapter managing protocol translation. The 3HAC021729-001 motor’s performance data — including temperature, load, and cycle count — is accessible through the IRC5 service interface, enabling predictive maintenance scheduling without requiring physical inspection of the motor housing.

The companion motor module 3HAC021728-001 serves adjacent axes within the same IRB4400 arm structure, and both units share identical mounting interfaces and electrical connectors, simplifying spare parts management and reducing the risk of installation errors during field replacement. This design consistency is a hallmark of ABB’s modular robot architecture philosophy.

Application in Layered Automation Systems

The ABB 3HAC021729-001 is deployed across a wide range of industrial sectors where the IRB4400 platform has established a strong operational footprint. In automotive manufacturing, IRB4400 robots equipped with this motor module perform spot welding, sealing, and material transfer tasks on body-in-white production lines, where cycle times are measured in seconds and positional repeatability must be maintained across millions of cycles without recalibration.

In metal fabrication and heavy industry, the IRB4400’s payload capacity — supported by the torque output of the 3HAC021729-001 — enables handling of large structural components, press-tending operations, and machine loading tasks that would be impractical with lighter robot platforms. The motor’s thermal management characteristics allow sustained high-torque operation without derating, which is essential in continuous production environments where robot downtime directly impacts line output.

In electronics and precision assembly applications, the 3HAC021729-001 contributes to the fine motion control required for component placement, dispensing, and inspection tasks. The motor’s low-backlash pinion interface ensures that the robot’s TCP (Tool Center Point) remains within tolerance even during complex multi-axis path execution.

For process industries including chemical, petrochemical, and water treatment facilities, IRB4400 systems with this motor module are deployed in hazardous area handling, valve actuation assistance, and sample transfer applications. The IP54 protection rating of the motor housing provides adequate ingress protection for most process environments, while IP67 variants are available for wash-down zones.

In packaging and palletizing lines, the IRB4400 platform handles high-speed case erecting, product grouping, and layer palletizing tasks. The 3HAC021729-001’s ability to deliver consistent torque at varying speeds makes it well-suited to the variable-load profiles typical of end-of-line packaging systems, where product weights and configurations change frequently between production runs.

Architecture Engineering FAQ

Q1: Is the 3HAC021729-001 compatible with both the IRC5 and S4C+ controller platforms?
Yes. The 3HAC021729-001 is designed for use within the IRB4400 mechanical platform, which was originally paired with the S4C+ controller and subsequently supported under the IRC5 architecture. The motor’s electrical interface and feedback system are compatible with both controller generations, provided the appropriate drive module (DSQC series for IRC5, or the equivalent S4C+ drive board) is installed. When migrating from S4C+ to IRC5, the motor itself does not require replacement — only the controller cabinet and drive modules need to be updated.

Q2: What is the recommended maintenance interval, and how does the 12-Month Warranty apply to field-replaced units?
ABB recommends inspection of motor mounting integrity, connector condition, and brake function at each scheduled robot maintenance interval (typically every 3,500–5,000 operating hours, depending on application duty cycle). The 12-Month Warranty covers the 3HAC021729-001 from the date of dispatch and applies to defects in materials and workmanship under normal operating conditions. Field-replaced units installed by qualified personnel in accordance with ABB’s installation guidelines are covered under the same warranty terms. Units showing evidence of mechanical overload, incorrect installation, or operation outside specified parameters are excluded from warranty coverage.

Q3: Can the 3HAC021729-001 be installed without full robot recalibration?
Motor replacement on the IRB4400 typically requires axis recalibration following installation, as the pinion engagement position affects the zero-point reference of the affected axis. ABB’s calibration procedure using the CalibWare software tool or the IRC5 FlexPendant calibration routine should be followed after installation. In systems where the original calibration data is stored in the IRC5 SMB (Serial Measurement Board), recalibration can be completed efficiently without requiring external measurement equipment, minimizing downtime during the replacement procedure.
