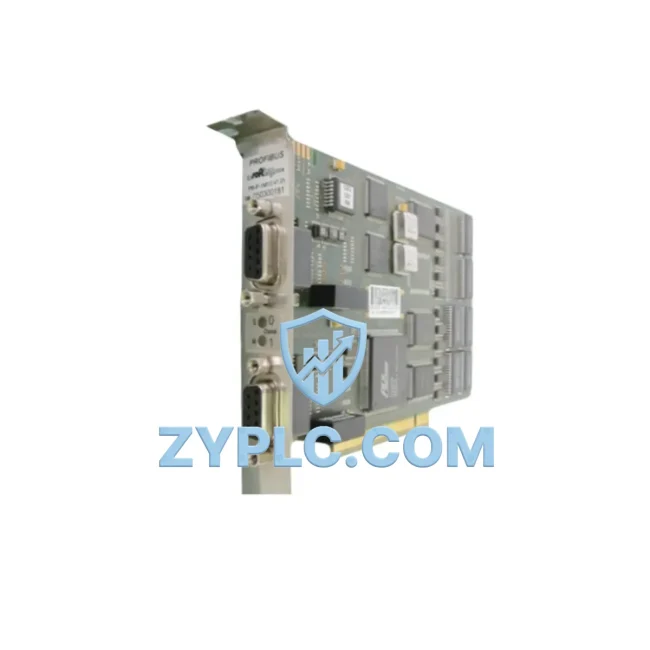

ABB 3HAC023047-001 DSQC637 System-Ready Profibus-DP Adapter for IRC5 Architecture

ABB 3HAC023047-001 DSQC637 System-Ready Profibus-DP Adapter for IRC5 Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB 3HAC023047-001 DSQC637 is a dedicated Profibus-DP communication adapter engineered for seamless integration within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone peripheral, this module occupies a critical position in the network communication layer of a multi-axis robotic control system, enabling deterministic, high-speed data exchange between the IRC5 controller and field-level devices across the Profibus-DP network. Understanding its role requires examining the full system hierarchy — from the control layer down through I/O, network, power, HMI, and execution layers — and how the DSQC637 enhances system consistency, scalability, redundancy, and long-term maintainability.

In a typical IRC5-based robotic cell, the main computer unit — such as the DSQC1000 or DSQC645 — serves as the central processing core, executing RobotWare motion programs and managing real-time axis control. The DSQC637 Profibus-DP adapter plugs directly into the IRC5 controller’s internal backplane, establishing a high-integrity fieldbus link that connects the robot controller to external PLCs, distributed I/O stations, and process instrumentation. This architecture allows the IRC5 to act as either a Profibus-DP master or slave, depending on the system design, making it compatible with Siemens S7-series PLCs, Allen-Bradley ControlLogix systems, and other Profibus-compliant controllers that may govern the broader production line.

At the I/O layer, the DSQC637 works in coordination with ABB’s own distributed I/O modules — including the DSQC652 digital I/O unit and DSQC651 analog I/O unit — which may be mounted on the same IRC5 backplane or distributed across the Profibus network. The adapter ensures that all I/O data is transmitted with the cycle-time consistency required for synchronized multi-robot operations, conveyor tracking, and vision-guided pick-and-place tasks. Signal integrity across the Profibus segment is maintained through the adapter’s built-in termination and diagnostic capabilities, reducing the risk of communication faults that could interrupt production.

From a network architecture perspective, the DSQC637 supports the full Profibus-DP protocol stack, including DP-V0 cyclic data exchange and DP-V1 acyclic parameter access. This dual-mode capability is essential in systems where the IRC5 must not only exchange real-time process data but also receive configuration updates or diagnostic reads from a supervisory SCADA or DCS platform. In layered automation architectures — where a Siemens S7-1500 or similar PLC acts as the Profibus master and the IRC5 operates as a slave — the DSQC637 provides the physical and logical interface that makes this master-slave relationship possible without additional gateway hardware.

Power supply stability is a prerequisite for reliable Profibus communication. The IRC5 controller’s internal power distribution, managed through the DSQC661 power supply unit, ensures that the DSQC637 receives clean, regulated DC power. Any voltage fluctuation or power interruption at the controller level will directly affect the Profibus segment, making the integrity of the power layer inseparable from the communication layer’s performance. In redundant system designs, dual power supply configurations using paired DSQC661 units can be implemented to eliminate single points of failure, and the DSQC637’s communication status is continuously monitored by the IRC5’s system diagnostics, allowing operators to detect and respond to network faults before they escalate.

At the human-machine interface layer, the FlexPendant — ABB’s primary IRC5 teach pendant — provides real-time visibility into the Profibus communication status, including bus cycle time, node connectivity, and error counters. Engineers can use the RobotStudio offline programming environment to configure the DSQC637’s GSD file parameters, define I/O signal mappings, and simulate the Profibus network topology before physical commissioning. This pre-commissioning capability significantly reduces on-site setup time and minimizes the risk of configuration errors in complex multi-robot or multi-PLC environments.

At the execution layer, the DSQC637 enables the IRC5 to receive motion triggers, part-present signals, and process interlocks from upstream conveyor systems, vision cameras, and safety PLCs via the Profibus network. This tight integration between the communication adapter and the execution layer ensures that the robot’s motion sequences are precisely synchronized with the broader production process, whether in automotive body-in-white welding lines, electronics assembly cells, food and beverage packaging systems, or pharmaceutical handling applications.

For long-term maintenance and system lifecycle management, the availability of the 3HAC023047-001 DSQC637 as a stocked, tested spare part is a critical consideration for plant engineers and maintenance teams. Unplanned downtime caused by a failed communication adapter can halt an entire robotic cell, making rapid spare part availability a key factor in overall equipment effectiveness (OEE). ZYPLC maintains verified stock of the DSQC637 with full functional testing prior to shipment, backed by a 12-Month Warranty that covers both hardware integrity and communication performance. This warranty commitment reflects our confidence in the quality of every unit we supply and provides procurement teams with the assurance needed for long-term maintenance planning.

Architecture Specification Table

Coordinated Control System Design

The DSQC637 does not operate in isolation — its value is realized through its coordination with the full suite of IRC5 system components. At the controller core, the DSQC1000 main computer unit executes RobotWare and manages all real-time motion and I/O processing, while the DSQC645 computer unit serves as an alternative main computer in earlier IRC5 configurations. The DSQC661 power supply unit provides the regulated 24 VDC required by all backplane-mounted modules, including the DSQC637 itself.

For I/O expansion, the DSQC652 digital I/O unit and DSQC651 analog I/O unit are commonly deployed alongside the DSQC637, with the Profibus adapter providing the network backbone that connects these local I/O resources to the broader plant control system. In applications requiring safety-rated I/O, the DSQC643 safety I/O module integrates into the same IRC5 architecture, with safety signals routed through dedicated channels that remain independent of the Profibus data path.

The FlexPendant teach pendant provides the operator interface for monitoring Profibus communication status and configuring I/O signal assignments, while RobotStudio software enables offline GSD file configuration and network simulation. In multi-robot systems, the DSQC668 DeviceNet adapter may be deployed in parallel with the DSQC637 to support legacy DeviceNet devices on the same IRC5 platform, demonstrating the modular, multi-protocol communication architecture that ABB IRC5 systems are designed to support.

Application in Layered Automation Systems

The ABB 3HAC023047-001 DSQC637 finds application across a wide range of industrial sectors where Profibus-DP remains the dominant fieldbus standard for robot-to-PLC communication.

In automotive manufacturing, IRC5-controlled welding robots equipped with the DSQC637 communicate directly with Siemens S7-400 or S7-1500 PLCs that manage body-in-white transfer lines. The Profibus link carries weld schedule selection, gun force feedback, and part-present confirmation signals, enabling the robot and the line PLC to operate as a tightly synchronized system rather than independent machines.

In electronics assembly, the DSQC637 enables IRC5 robots to interface with vision system controllers and conveyor PLCs via Profibus, supporting high-speed pick-and-place operations where cycle times are measured in milliseconds and communication latency must be minimized.

In food and beverage packaging, the adapter supports hygienic-area IRC5 installations where the robot controller must receive product flow data from upstream filling machines and send packing confirmation signals to downstream palletizing systems, all via a single Profibus segment managed by a central line PLC.

In process industries such as petrochemical and water treatment plants, the DSQC637 allows IRC5 robots to integrate into DCS-managed environments where Profibus-DP is used as the primary field communication standard, enabling robotic sampling, valve actuation, and inspection tasks to be coordinated directly from the plant’s distributed control system.

Architecture Engineering FAQ

Q1: Is the ABB 3HAC023047-001 DSQC637 compatible with all IRC5 controller variants, and can it coexist with other communication adapters on the same backplane?
The DSQC637 is designed for the ABB IRC5 platform, including the IRC5 Single Cabinet, Dual Cabinet, and IRC5 Compact variants running RobotWare 5.x and 6.x. The IRC5 backplane supports multiple communication adapter slots, allowing the DSQC637 to coexist with other adapters such as the DSQC668 DeviceNet adapter or DSQC688 EtherNet/IP adapter, provided that each adapter occupies a dedicated slot and the RobotWare I/O configuration is updated to reflect the multi-adapter topology. This multi-protocol capability is a key advantage of the IRC5 architecture for plants with mixed fieldbus environments.

Q2: What commissioning steps are required when replacing a failed DSQC637 in a live production system, and how can downtime be minimized?
When replacing a DSQC637, the IRC5 controller must be powered down before removing the failed adapter. The replacement unit should be installed in the same backplane slot, and the Profibus node address — typically set via RobotWare software configuration rather than hardware DIP switches on the DSQC637 — must be verified to match the original configuration. If a RobotStudio backup of the original system configuration is available, the I/O signal mappings and Profibus parameters can be restored in minutes, significantly reducing recommissioning time. ZYPLC recommends maintaining a tested spare DSQC637 on-site for critical production cells to eliminate lead-time delays during unplanned failures.

Q3: What does the 12-Month Warranty cover for the DSQC637, and what support is available for long-term maintenance planning?
ZYPLC’s 12-Month Warranty on the ABB 3HAC023047-001 DSQC637 covers hardware defects and verified communication performance failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to confirm Profibus-DP protocol compliance and backplane interface integrity. For long-term maintenance planning, ZYPLC can advise on recommended spare part quantities based on your installed IRC5 fleet size and production criticality. Our technical team is available to support system architects and maintenance engineers with compatibility verification, configuration guidance, and rapid replacement logistics to minimize the impact of communication adapter failures on overall plant availability.
