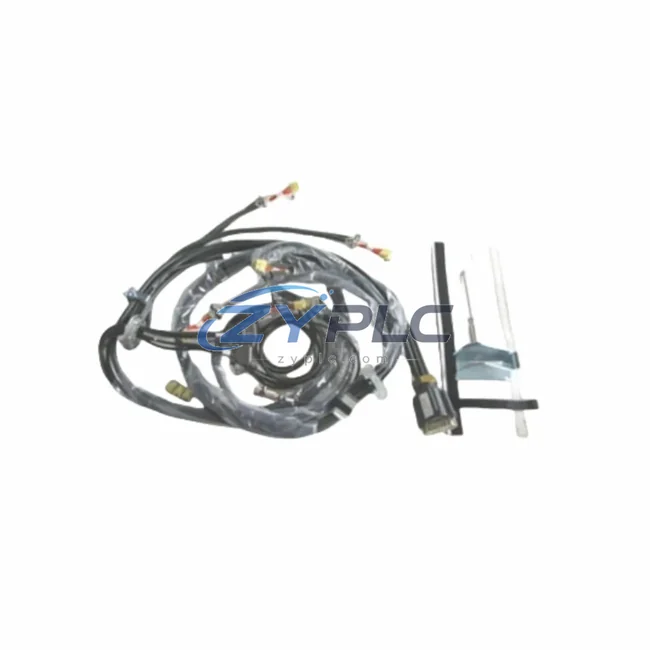

ABB 3HAC0233447-001 Harness for IRB Robot

ABB 3HAC0233447-001 Harness for IRB Robot

The ABB 3HAC0233447-001 is a precision-engineered cable harness assembly designed for Axis 1–6 signal and power routing within ABB IRB series industrial robot systems. In any layered automation architecture, the integrity of inter-axis wiring is foundational — it determines not only the reliability of motion execution but also the long-term maintainability of the entire robotic cell. This harness is not a peripheral accessory; it is a structural element of the robot’s control and actuation chain, connecting the IRC5 controller’s drive outputs to each servo motor axis with shielded, routed precision.

Within a complete IRB robot system, the 3HAC0233447-001 harness interfaces directly with the axis computer boards, servo drive units, and motor feedback encoders. The harness carries both power signals to the axis motors and encoder feedback signals back to the IRC5 controller, enabling closed-loop position control across all six degrees of freedom. Any degradation in this signal path — whether from connector wear, insulation fatigue, or improper routing — directly impacts the robot’s positional accuracy, cycle repeatability, and ultimately the throughput of the production line it serves.

Product Specification Table

System Compatibility Notes

The 3HAC0233447-001 harness operates within a tightly coordinated system architecture. At the controller level, the IRC5 cabinet houses the main computer (DSQC1000 or equivalent), which generates motion trajectories and dispatches axis commands through the drive system. The drive units — typically DSQC663 or DSQC667 axis computer boards — translate these commands into precise current waveforms delivered to each servo motor. The 3HAC0233447-001 harness is the physical medium through which these drive signals travel from the controller to the motor windings of Axis 1 through Axis 6.

On the feedback side, the harness carries resolver or encoder signals from each axis motor back to the axis computer, enabling the IRC5 to perform real-time position correction. This closed-loop architecture depends entirely on the signal fidelity of the harness. Alongside the harness, the system relies on the DSQC604 power supply unit to maintain stable 24VDC logic power, and the SMB (Serial Measurement Board, 3HAC14550-2) to aggregate encoder data from all axes into a single communication channel back to the main computer.

In redundant or high-availability robot cell designs, the harness condition is monitored indirectly through axis error logs and servo fault codes in the IRC5 FlexPendant (3HAC028357-001). Maintenance engineers use the teach pendant to run diagnostic routines that isolate harness-related faults from motor or drive failures. The DSQC1000 main computer logs axis deviation errors that often trace back to harness connector oxidation or insulation breakdown, making periodic harness inspection a standard part of predictive maintenance protocols.

For multi-robot cells coordinated through ABB RobotStudio or a PROFINET/EtherNet/IP network gateway, the harness condition in each robot directly affects the synchronization accuracy of the cell. A degraded harness in one robot can introduce axis lag that disrupts coordinated pick-and-place or welding sequences. Replacing the 3HAC0233447-001 with a genuine ABB harness assembly ensures that the robot re-enters the cell with factory-specified signal integrity, restoring full coordination capability without requiring recalibration of the entire cell network.

Industrial Application Notes

In automotive body-in-white welding lines, ABB IRB 6640 and IRB 6700 robots perform continuous spot welding cycles at high duty rates. The Axis 1–6 harness in these robots is subjected to constant flexion, thermal cycling, and vibration. Harness fatigue in this environment typically manifests as intermittent axis errors or reduced path accuracy before complete failure. Proactive replacement of the 3HAC0233447-001 during scheduled maintenance windows — rather than reactive replacement after a fault — prevents unplanned line stoppages that can cost thousands per hour in lost production.

In electronics assembly and semiconductor handling, IRB 1600 and IRB 2600 robots perform high-speed, high-precision pick-and-place operations. Here, the harness must maintain sub-millimeter positional repeatability across millions of cycles. Any signal noise introduced by a worn harness connector directly degrades placement accuracy, leading to increased defect rates. Replacing the harness with the genuine 3HAC0233447-001 restores the robot’s ±0.05mm repeatability specification and eliminates the root cause of placement drift.

In palletizing and packaging lines, IRB 4600 robots operate in environments with dust, humidity, and temperature variation. The harness routing through the robot arm must maintain its shielding integrity to prevent EMI from variable frequency drives and servo amplifiers from corrupting encoder feedback signals. The 3HAC0233447-001 is designed with the shielding and connector sealing required for these environments, ensuring stable operation alongside other automation components in the production cell.

In power generation and process industries, ABB robots are used for inspection, valve operation, and material handling in environments with strict uptime requirements. Here, the warranty terms confirmed during quotation on the 3HAC0233447-001 provides procurement teams with a documented quality assurance baseline, supporting maintenance planning and spare parts inventory strategies aligned with plant turnaround schedules.

Product Compatibility FAQ

Q1: Which ABB IRB robot models is the 3HAC0233447-001 harness compatible with?
The 3HAC0233447-001 is designed for ABB IRB series robots including the IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700, used in conjunction with the IRC5 controller platform. Compatibility depends on the specific robot variant and revision. We recommend confirming the robot’s serial number and controller version before ordering. Our technical team can assist with cross-referencing the correct harness part number for your specific robot configuration.

Q2: How does harness replacement affect system calibration and IRC5 configuration?
Replacing the 3HAC0233447-001 harness is a mechanical and electrical replacement that does not alter the IRC5 controller’s motion parameters or robot calibration data stored in the DSQC1000 main computer. However, after harness replacement, it is standard practice to perform a fine calibration routine using the IRC5 FlexPendant to verify that all six axes return to their reference positions within specification. The SMB (Serial Measurement Board) retains axis revolution counter data, which must be updated after any harness replacement that involves disconnecting the encoder connectors.

Q3: What warranty and testing standards apply to the 3HAC0233447-001 supplied by ZYPLC?
All 3HAC0233447-001 harness assemblies supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment continuity testing, insulation resistance verification, and connector integrity inspection to confirm it meets ABB’s original electrical specifications. Units are shipped in anti-static, protective packaging to prevent transit damage. For high-volume or project-based procurement, we offer batch testing documentation and traceability records upon request.
