ABB 3HAC028861-001 System-Ready Drive Harness for IRB 6600 Architecture

ABB 3HAC028861-001 System-Ready Drive Harness for IRB 6600 Architecture: Control System Coordination and Upstream-Downstream Synergy

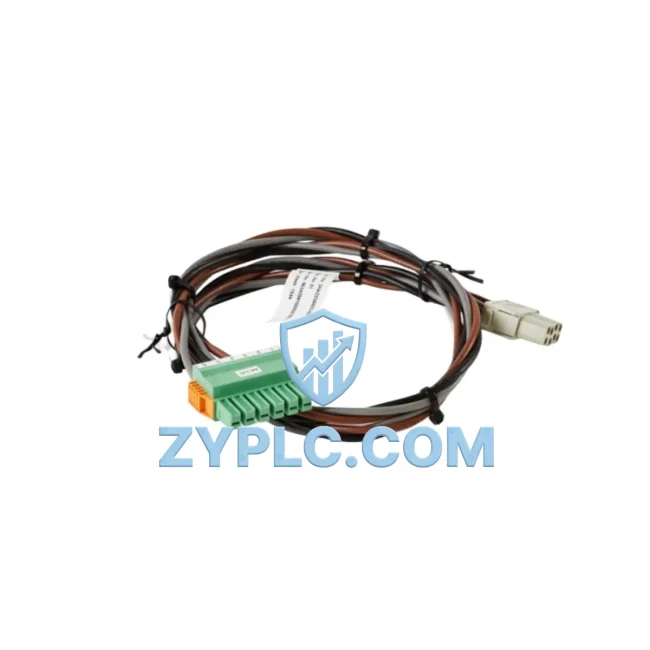

The ABB 3HAC028861-001 Drive Unit Harness Module is a precision-engineered electrical interconnect component designed to serve as the critical signal and power bridge between the drive unit assembly and the servo motor axis group within the IRB 6600 robot architecture. In a fully integrated industrial automation system, this harness does not operate in isolation — it is a structural element of the robot’s internal control topology, linking the drive electronics layer to the mechanical execution layer with deterministic signal integrity and mechanical robustness. Understanding its role requires viewing the IRB 6600 not as a standalone manipulator, but as a node within a broader layered automation system encompassing the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer.

Within the IRB 6600 platform, the drive unit harness connects the axis computer and drive unit — typically the DSQC 661 or DSQC 662 drive module — to the servo motor feedback and power circuits. This connection is essential for maintaining closed-loop torque and position control across all six axes. Any degradation in harness continuity directly impacts the IRC5 controller’s ability to execute motion profiles with the precision required in heavy-payload applications such as spot welding, material handling, press tending, and foundry automation. The 3HAC028861-001 is therefore not merely a cable assembly; it is a functional element of the robot’s real-time control chain.

From a system architecture perspective, the harness interfaces upstream with the IRC5 single-cabinet or dual-cabinet controller, which houses the main computer (DSQC 1000 or DSQC 639), the axis computer board, and the drive system. Downstream, it connects to the motor units on the robot arm, ensuring that encoder feedback signals, resolver data, and motor power are transmitted without noise, attenuation, or phase error. The integrity of this signal path is what allows the IRC5 controller to maintain synchronization across multi-axis coordinated motion, particularly in applications where axes 1 through 6 must operate in concert with external positioners or conveyor tracking systems.

In multi-robot cell architectures, where several IRB 6600 units share a common RobotWare network and are coordinated through a MultiMove configuration, the reliability of each robot’s internal harness becomes a system-level concern. A single harness fault can trigger axis error codes, force a cell-wide safety stop, and interrupt production across all coordinated robots. Proactive harness maintenance and verified spare part availability — including the 3HAC028861-001 — are therefore integral to the cell’s overall OEE (Overall Equipment Effectiveness) strategy.

Architecture Specification Table

Coordinated Control System Design

The 3HAC028861-001 harness operates within a tightly coordinated system architecture that spans multiple hardware layers. At the control layer, the IRC5 controller — equipped with the DSQC 1000 main computer and DSQC 639 I/O board — generates motion commands that are transmitted through the axis computer to the drive units. The drive units, specifically the DSQC 661 and DSQC 662 modules, convert these commands into precise current waveforms delivered to the servo motors via the drive harness. The 3HAC028861-001 is the physical medium through which this conversion is completed at the motor interface.

At the I/O layer, the DSQC 652 digital I/O module and DSQC 378B fieldbus adapter board manage external signals from sensors, safety relays, and end-of-arm tooling. These signals are processed by the IRC5 controller and influence the motion profiles executed through the drive chain — making the harness’s signal fidelity a downstream dependency of I/O layer accuracy. At the network layer, the IRC5 controller communicates with the plant SCADA system, PLC supervisory layer, or MES via PROFINET, DeviceNet, or EtherNet/IP protocols through the DSQC 688 network module, ensuring that robot motion is synchronized with upstream production scheduling.

The FlexPendant (IRC5 HMI terminal) provides the operator interface for jogging, program execution, and fault diagnostics. When a harness-related axis fault is detected — such as an encoder signal loss or motor overcurrent — the FlexPendant displays the corresponding error code, enabling maintenance engineers to isolate the fault to the 3HAC028861-001 or the associated drive module. The SMB (Serial Measurement Board), referenced as 3HAC031670-001 in the IRB 6600 spare parts catalog, works in conjunction with the drive harness to process resolver feedback from each axis motor, and its condition must be verified alongside the harness during any drive system maintenance procedure.

For power layer integrity, the IRB 6600 relies on the IRC5 power supply unit and the drive system’s internal DC bus. The 3HAC028861-001 harness must maintain low-resistance continuity across all motor power conductors to prevent voltage drop, phase imbalance, or thermal stress on the drive modules. In redundant cell designs, where a backup IRC5 controller or hot-standby drive configuration is employed, the harness condition in both primary and redundant paths must be verified to ensure seamless failover without motion interruption.

Application in Layered Automation Systems

The ABB IRB 6600 platform, and by extension the 3HAC028861-001 drive harness, is deployed across a wide range of heavy-industry automation environments. In automotive body-in-white manufacturing, IRB 6600 robots perform spot welding and material handling tasks within synchronized multi-robot cells, where harness reliability directly impacts weld cycle time and cell throughput. In press tending applications at metal stamping facilities, the robot’s ability to maintain precise axis positioning during high-speed blank transfer depends on uninterrupted drive signal continuity through the 3HAC028861-001.

In foundry and die-casting environments, where ambient temperatures, vibration levels, and particulate contamination are significantly elevated, the drive harness is subject to accelerated wear. Scheduled replacement of the 3HAC028861-001 as part of a preventive maintenance program — aligned with ABB’s recommended service intervals — reduces the risk of unplanned downtime in these harsh-environment applications. In steel mill and heavy fabrication facilities, where IRB 6600 robots handle large structural components, the harness must withstand the mechanical stress of high-payload, high-inertia motion profiles across all six axes.

In process industries such as petrochemical plant maintenance, water treatment facility automation, and mining equipment assembly, the IRB 6600 is increasingly deployed for tasks requiring consistent force control and path accuracy. In these applications, the drive harness’s role in maintaining encoder signal integrity is critical to the robot’s ability to execute compliant motion strategies without axis oscillation or position drift. Packaging line integrators deploying IRB 6600 robots for palletizing and case handling also benefit from verified spare part availability, as production line uptime requirements in FMCG environments typically demand same-day or next-day spare part fulfillment.

Architecture Engineering FAQ

Q1: Is the 3HAC028861-001 compatible with all IRB 6600 variants, and does it require any configuration changes when installed in an IRC5 dual-cabinet system?
The 3HAC028861-001 is designed for the IRB 6600 series and is compatible with both the IRB 6600-175/2.55 and IRB 6600-225/2.55 configurations. When installed in an IRC5 dual-cabinet system, no software configuration changes are required for the harness itself, as it is a passive electrical interconnect. However, after replacement, the IRC5 controller should be powered through a full calibration verification cycle using the FlexPendant to confirm that encoder feedback signals from all affected axes are within specification. The SMB board (3HAC031670-001) should also be inspected for connector integrity during the same maintenance window.

Q2: How does harness degradation affect system-level performance in a MultiMove or coordinated multi-robot cell, and what diagnostic steps are recommended?
In a MultiMove configuration, axis signal degradation caused by harness wear can manifest as coordinated motion path deviation, increased position error at TCP, or intermittent axis fault codes (e.g., 50024 or 50025 series in RobotWare). These faults can trigger a safety-rated stop across all coordinated robots in the cell, causing production interruption disproportionate to the fault’s origin. Recommended diagnostics include oscilloscope verification of encoder signal quality at the drive unit connector, resistance measurement across all harness conductors, and visual inspection of the harness routing for chafing, pinch points, or connector fretting. Replacing the 3HAC028861-001 with a verified OEM-equivalent spare and performing a full axis calibration restores system performance to specification.

Q3: What does the 12-Month Warranty cover for the 3HAC028861-001, and how does Contextual Integration support apply to system commissioning?
The 12-Month Warranty covers manufacturing defects, connector failure, conductor open-circuit or short-circuit conditions, and insulation breakdown under normal operating conditions as defined by ABB’s IRB 6600 installation and maintenance guidelines. It does not cover damage resulting from incorrect installation, harness routing outside ABB-specified cable management paths, or exposure to chemicals incompatible with the harness jacket material. Contextual Integration support means that our technical team can assist with verifying the harness’s compatibility within your specific IRC5 cabinet configuration, axis assignment, and cable management layout — ensuring that the replacement part integrates correctly into your existing system architecture without requiring modifications to adjacent components such as the DSQC 661 drive module or the SMB board connector interface.
