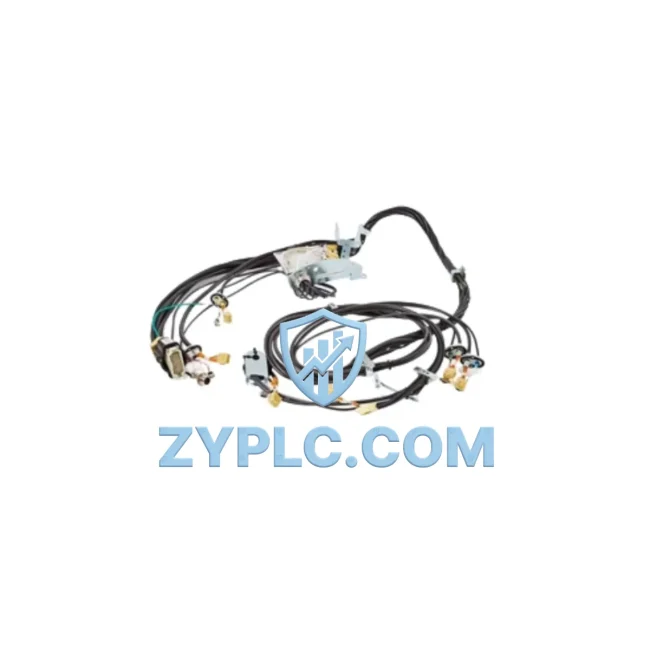

ABB 3HAC030006-001 System-Ready Cable Harness for IRB 2600

ABB 3HAC030006-001 System-Ready Cable Harness for IRB 2600: Control System Architecture and Upstream-Downstream Coordination

In modern industrial automation, the integrity of a robotic control system depends not only on the intelligence of its controller or the precision of its servo drives, but equally on the reliability of every signal pathway that connects these layers together. The ABB 3HAC030006-001 Cable Harness is a factory-engineered interconnect assembly designed specifically for the ABB IRB 2600 series of industrial robots, serving as a critical structural element within the robot’s internal wiring architecture. Far from being a passive component, this cable harness defines the quality of signal transmission between the robot’s axis computer, servo drive units, resolver feedback circuits, and the IRC5 controller cabinet — making it a foundational element of system-level reliability, diagnostic consistency, and long-term maintainability.

When engineering teams design or maintain a robotic workcell built around the IRB 2600 platform, every layer of the control hierarchy must be considered holistically. The ABB 3HAC030006-001 is not selected in isolation; it is specified as part of a coordinated architecture that includes the IRC5 single-cabinet controller, the DSQC 661 axis computer board, the 3HAC026254-001 drive unit, and the 3HAC14550-2 power supply module. Together, these components form the electrical backbone of a six-axis articulated robot system capable of handling payloads up to 20 kg with a reach of 1,650 mm — a configuration widely deployed in automotive assembly, machine tending, arc welding, and material handling applications.

Architecture Specification Table

Coordinated Control System Design

The ABB 3HAC030006-001 cable harness occupies a pivotal position within the IRB 2600’s layered control architecture. At the controller level, the IRC5 cabinet processes motion programs from the FlexPendant (3HAC028357-001) and dispatches axis commands through the DSQC 661 axis computer. These commands travel through the 3HAC030006-001 harness to reach the individual 3HAC026254-001 servo drive modules, which in turn energize the axis motors. Simultaneously, resolver feedback signals from each joint are routed back through the same harness infrastructure, enabling closed-loop position control with sub-millimeter repeatability.

At the power distribution layer, the 3HAC14550-2 power supply module provides regulated DC voltage to the drive units, while the harness ensures that brake release signals reach each axis motor’s electromagnetic brake — a safety-critical function that prevents uncontrolled arm movement during E-stop events or power cycling. The 3HAC025338-001 SMB (Serial Measurement Board) also interfaces through this harness network, collecting encoder and temperature data from the robot’s lower arm and base axes.

For systems requiring expanded I/O capability, the IRB 2600 architecture supports integration with ABB DSQC 652 digital I/O boards and DSQC 378B fieldbus adapter modules, which connect to the IRC5 controller via DeviceNet or PROFIBUS. The 3HAC030006-001 harness ensures that the robot’s internal signal environment remains clean and interference-free, which is essential when the controller is simultaneously managing high-speed fieldbus communications and real-time servo loops. In multi-robot workcells, where several IRB 2600 units share a common MultiMove controller configuration, harness integrity across all units is a prerequisite for synchronized motion coordination.

Maintenance engineers working on IRB 2600 installations will also recognize the importance of the 3HAC029157-001 lower arm assembly and the 3HAC028357-001 teach pendant cable as adjacent components in the same service scope. When a cable harness replacement is scheduled, it is standard practice to inspect these assemblies simultaneously, reducing total downtime and ensuring that the entire signal chain is restored to OEM specification in a single maintenance window.

Application in Layered Automation Systems

The ABB IRB 2600 platform, supported by the 3HAC030006-001 cable harness, is deployed across a wide range of industrial sectors where precision, throughput, and uptime are non-negotiable requirements.

In automotive manufacturing, IRB 2600 robots perform spot welding, arc welding, and component assembly on body-in-white production lines. The cable harness must withstand continuous high-cycle operation — often exceeding 100,000 cycles per year — while maintaining signal fidelity across all six axes. Any degradation in the harness insulation or connector integrity directly translates to axis positioning errors, weld quality deviations, or unplanned stoppages.

In electronics and precision assembly environments, the IRB 2600 is used for PCB handling, component insertion, and quality inspection. These applications demand extremely low vibration and high repeatability, both of which depend on a properly routed and secured cable harness that does not introduce mechanical stress on the robot’s internal wiring during high-speed movements.

In food and beverage packaging lines, where washdown cycles and humidity are concerns, the integrity of the robot’s internal wiring — protected by the harness routing and strain relief design — is critical to preventing moisture ingress into the servo and feedback circuits. The 3HAC030006-001 is engineered to ABB’s OEM standards, ensuring that the robot’s IP rating is maintained when the harness is correctly installed.

In petrochemical and process industries, where robots may operate in environments with elevated ambient temperatures or chemical vapors, the cable harness material specification ensures compatibility with the robot’s rated operating temperature range of 0°C to +45°C. Facilities engineering teams in these sectors rely on OEM-specification replacement parts to maintain ATEX or IECEx compliance documentation for their robotic installations.

Across all these sectors, the availability of a 12-Month Warranty on the 3HAC030006-001 provides procurement and maintenance teams with the assurance needed to justify OEM-grade replacement parts over aftermarket alternatives — particularly in applications where a single unplanned stoppage can cost tens of thousands of dollars in lost production.

Architecture Engineering FAQ

Q1: Is the ABB 3HAC030006-001 compatible with all IRB 2600 variants, and does it require any configuration changes when installed in an IRC5 MultiMove system?
The 3HAC030006-001 is designed for the IRB 2600 series, which includes the 12 kg/1.65 m and 20 kg/1.65 m payload variants. The harness is mechanically and electrically identical across these variants, as both share the same internal arm architecture and axis computer interface. In a MultiMove configuration, each IRB 2600 unit maintains its own independent internal wiring, so the harness replacement procedure is identical to a single-robot installation. No controller-level reconfiguration is required following a harness replacement, provided the SMB memory unit (3HAC025338-001) retains its calibration data during the service procedure.

Q2: What is the recommended installation procedure to ensure signal integrity and avoid EMI interference after fitting the 3HAC030006-001?
ABB’s service documentation specifies that the cable harness must be routed through the designated cable guides and secured with the OEM-specified cable ties and strain relief clamps at each axis. Improper routing — particularly allowing the harness to contact rotating or reciprocating mechanical components — is the primary cause of premature harness failure. After installation, a full axis calibration using the IRC5 controller’s calibration routine should be performed to verify resolver feedback accuracy. EMI performance is maintained by ensuring all shield terminations at the DSQC 661 axis computer and drive unit connectors are properly seated and that the robot’s grounding strap to the controller cabinet is intact.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for IRB 2600 installations?
The 12-Month Warranty on the ABB 3HAC030006-001 covers manufacturing defects, connector failure, and signal conductor integrity under normal operating conditions as defined by ABB’s IRB 2600 installation and operation manual. ZYPLC maintains stock of critical IRB 2600 spare parts — including cable harnesses, axis computer boards, drive modules, and power supply units — to support rapid dispatch for both planned maintenance shutdowns and emergency breakdown situations. For facilities managing multiple IRB 2600 units, ZYPLC can assist with consolidated spare parts planning to ensure that critical harness assemblies are available on-site, minimizing mean time to repair (MTTR) across the entire robotic fleet.
