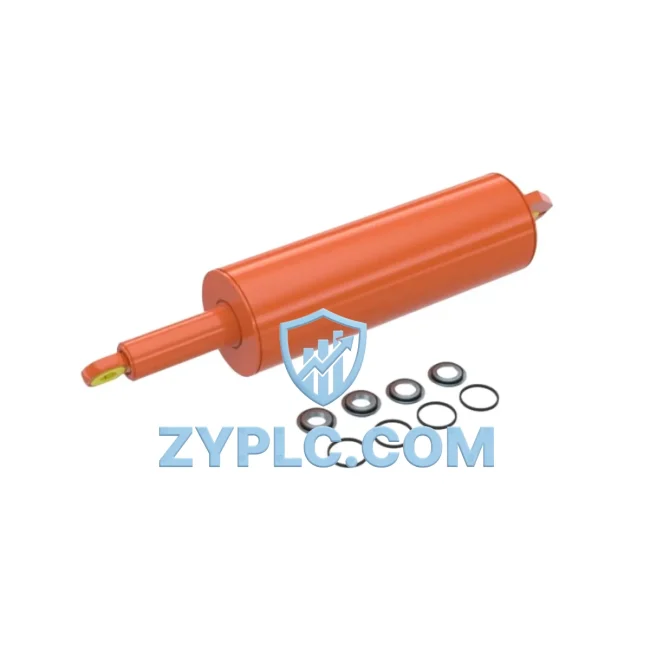

ABB 3HAC030868-001 Energy-Saving Balancing Device IRB6640

ABB 3HAC030868-001 Energy-Saving Balancing Device IRB6640: Precision Energy Control for Optimized Robot Automation

The ABB 3HAC030868-001 is a high-performance mechanical balancing device engineered specifically for the ABB IRB6640 and IRB6620 industrial robot series. In modern manufacturing environments where energy efficiency and uptime directly impact profitability, this balancing device plays a critical role in reducing unnecessary servo motor load, extending drive system life, and enabling more predictable, energy-aware robot operation across demanding production lines.

By counterbalancing the gravitational torque on the robot’s primary axis, the 3HAC030868-001 allows the servo drives — including ABB’s integrated axis drive modules — to operate within a narrower, more efficient power band. This directly reduces peak current draw during acceleration and deceleration cycles, lowering overall energy consumption per production cycle and reducing thermal stress on the drive electronics.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ABB 3HAC030868-001 balancing device does not operate in isolation — it is a foundational mechanical component within a broader energy-aware automation architecture. In a fully optimized IRB6640 cell, this device works in concert with the ABB IRC5 controller, which manages motion planning and torque profiling across all six axes. The IRC5’s integrated axis computer boards (such as the DSQC1018 or DSQC679 main computer unit) continuously calculate optimal trajectory paths, and the reduced gravitational load provided by the 3HAC030868-001 allows these calculations to result in lower commanded torque values — directly translating to reduced energy output from the servo drive modules.

On the drive side, ABB’s drive unit modules (including the 3HAC025338-001 drive system) benefit from the reduced inertia compensation requirement. When the balancing spring mechanism absorbs gravitational torque, the drive units spend less time in high-current regenerative braking or peak-torque acceleration states. This extends the operational lifespan of the drive capacitors and IGBTs, reducing unplanned maintenance events and lowering the total cost of ownership.

For facilities running energy monitoring programs, the 3HAC030868-001 contributes measurable improvements when paired with power monitoring systems such as the ABB B23 energy meter or third-party power analyzers integrated via the IRC5’s DeviceNet or PROFIBUS communication modules. Real-time energy data collected through these interfaces can be fed back into the plant’s MES or SCADA system, enabling production planners to correlate robot cycle energy consumption with throughput metrics.

The robot cell’s I/O modules — such as the ABB DSQC652 digital I/O board — manage safety interlocks and operational signals that govern when the robot enters low-power standby states. With the balancing device properly installed and calibrated, the robot can hold axis positions with minimal servo holding torque, making standby energy consumption significantly lower during line pauses or shift changeovers.

In multi-robot cells, the ABB FlexPendant (IRC5 teach pendant) and RobotStudio simulation environment allow engineers to model the energy impact of balancing device condition on overall cell performance. A worn or failed balancing device immediately increases axis 2 servo load profiles — detectable through RobotWare’s built-in energy monitoring logs — making the 3HAC030868-001 a key predictive maintenance checkpoint in any energy optimization audit.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the ABB IRB6640 is frequently deployed for spot welding, material handling, and press-tending applications. These tasks involve repetitive vertical axis movements where gravitational torque on Axis 2 is at its highest. Without a properly functioning balancing device, the servo drive must continuously compensate for gravitational load, resulting in elevated current draw throughout every production cycle.

A failed or degraded 3HAC030868-001 balancing device can increase Axis 2 servo energy consumption by a measurable margin per cycle. Across a three-shift, high-volume production environment running hundreds of cycles per hour, this inefficiency compounds into significant additional energy cost and accelerated drive wear. Replacing or restoring the balancing device to OEM specification directly restores the robot’s designed energy efficiency envelope.

Beyond energy savings, the 3HAC030868-001 contributes to production line rhythm optimization. When servo drives are not overloaded compensating for gravitational imbalance, motion profiles execute more consistently, reducing cycle time variance. This improves line takt time predictability and reduces the risk of motion faults that trigger unplanned stops — each of which carries a hidden energy cost in restart sequences and idle heating of peripheral equipment.

From a predictive maintenance perspective, monitoring the health of the balancing device through servo load trend analysis in the IRC5 controller provides early warning of mechanical degradation. Facilities that track axis torque signatures over time can schedule balancing device replacement during planned maintenance windows rather than reacting to unexpected failures — a practice that reduces emergency maintenance energy overhead and keeps production efficiency targets on track.

All units supplied by ZYPLC undergo pre-shipment functional testing to verify spring preload, mechanical integrity, and dimensional conformance to ABB OEM specifications. This ensures that the energy efficiency benefits of the 3HAC030868-001 are realized immediately upon installation, without the commissioning delays associated with out-of-spec replacement parts.

Energy Optimization FAQ

Q1: How does the ABB 3HAC030868-001 balancing device reduce energy consumption in the IRB6640?
The balancing device uses a pre-loaded spring mechanism to counteract the gravitational torque on Axis 2. This reduces the torque demand placed on the servo drive during vertical movements, lowering peak current draw and overall energy consumption per robot cycle. In high-cycle applications, this translates to measurable reductions in drive energy output and reduced thermal load on the IRC5 drive modules.

Q2: Is the 3HAC030868-001 compatible with both the IRB6640 and IRB6620 robot models?
Yes. The 3HAC030868-001 is compatible with the ABB IRB6640 series, and cross-reference SKUs 3HAC026268-001 and 3HAC024504-001 cover the IRB6620 variant. All units are verified against ABB’s OEM dimensional and mechanical specifications prior to dispatch. If you are unsure which part number applies to your specific robot configuration, contact our technical team with your robot serial number for confirmation.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 3HAC030868-001 unit undergoes pre-shipment inspection including spring preload verification, mechanical travel check, and visual inspection for OEM conformance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or use outside the specified robot platform. Warranty claims are supported directly through ZYPLC’s technical service team.

Q4: Can I use energy monitoring data from the IRC5 controller to assess whether my balancing device needs replacement?
Yes. The ABB IRC5 controller logs axis torque and current data that can be reviewed through RobotWare’s service routines or exported via the controller’s data logging interfaces. A sustained increase in Axis 2 servo current during standard motion profiles — compared to baseline values recorded after the last balancing device service — is a reliable indicator of balancing device degradation. ZYPLC recommends establishing a torque baseline after each balancing device replacement to enable accurate trend monitoring.
