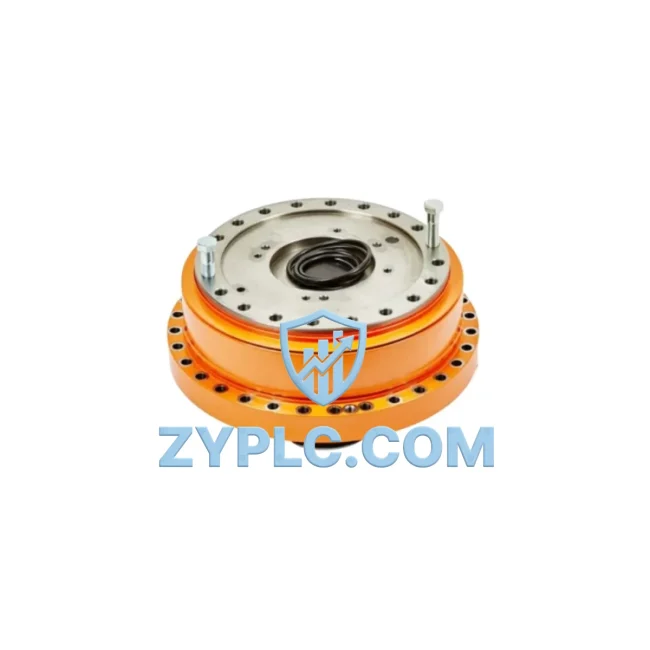

ABB 3HAC031580-001 Gearbox IRB 7600

ABB 3HAC031580-001 Gearbox for IRB 7600 Automation

The ABB 3HAC031580-001 is a precision-engineered robot gearbox module purpose-built for the ABB IRB 7600 heavy-duty industrial robot series. In production environments where energy efficiency, equipment utilization, and line takt time are directly tied to profitability, this gearbox is a critical mechanical node — reducing joint friction losses, stabilizing torque transmission across all six axes, and enabling the servo drive system to operate within its optimal efficiency band. The result is measurable operational stability per production cycle, lower thermal stress on drive electronics, and more predictable maintenance intervals.

The 3HAC031580-001 is designed for seamless integration with ABB’s RobotWare motion control platform. When operating in conjunction with the ABB IRC5 controller — which runs QuickMove and TrueMove motion optimization algorithms — this gearbox ensures that axis positioning is achieved with minimal energy overshoot. The IRC5’s motion planner is calibrated against the mechanical characteristics of OEM gearbox components; substituting non-OEM parts forces the controller outside its calibrated efficiency envelope, increasing reactive power draw and degrading path accuracy.

Product Specification Table

System Compatibility and Application

The 3HAC031580-001 operates as one node in a tightly coupled maintenance planning chain within the IRB 7600 automation cell. At the drive layer, the ABB DSQC1018 and DSQC1020 servo drive modules regulate current delivery to each robot axis. The mechanical efficiency of this gearbox directly determines how much of that electrical energy converts into useful mechanical work versus heat dissipation. A worn or mismatched gearbox forces the drive to compensate with elevated current draw — increasing both energy consumption and thermal stress on the drive electronics, accelerating component aging across the entire drive chain.

At the controller level, the ABB IRC5 main computer (DSQC1000) continuously monitors axis load profiles and adjusts motion trajectories in real time. These adjustments are only effective when the mechanical system responds predictably — which requires OEM-specification gearbox performance. For condition monitoring, facilities running IRB 7600 cells can integrate power measurement via ABB PowerMonitor 5000 units or third-party analyzers connected over PROFINET or EtherNet/IP. A degrading 3HAC031580-001 typically manifests as a gradual rise in axis current consumption, detectable through IRC5 diagnostic logs or the ABB Ability™ Connected Services platform, which aggregates robot health data for predictive maintenance scheduling.

On the safety and I/O side, the ABB DSQC643 I/O module and SafeMove2 safety controller rely on accurate torque feedback from the joint system. Mechanical integrity of the gearbox is essential for SafeMove2 to correctly enforce speed and force limits — particularly in semi-collaborative zones where energy-efficient low-speed operation is mandated. For multi-robot facilities, ABB RobotStudio enables engineers to simulate the energy impact of gearbox replacement cycles, validate restored motion performance offline, and deploy optimized programs to the production floor without trial-and-error downtime.

Maintenance and Replacement Notes

In heavy-payload applications — automotive body-in-white assembly, large-part palletizing, press-tending — the IRB 7600 typically operates at 60–85% of its 500 kg rated payload across extended multi-shift schedules. Under these conditions, gearbox efficiency has a compounding effect: a 3–5% improvement in transmission efficiency across six axes reduces total robot energy consumption by 8–15% per shift, depending on cycle profile and duty cycle. Over a full year of three-shift operation, this translates into significant reductions in electricity cost per part produced.

From a takt time perspective, a gearbox operating below specification introduces micro-delays in axis positioning — the IRC5 must wait for position confirmation before initiating the next motion segment. These delays, individually 20–80 ms per cycle, accumulate across thousands of cycles per shift and can reduce effective throughput by 2–4%. Restoring gearbox performance with a genuine 3HAC031580-001 eliminates these delays and returns the robot to its programmed cycle time, directly improving equipment utilization rate (OEE) without any changes to the motion program.

Facilities that implement proactive gearbox replacement — triggered by backlash measurement or abnormal current draw detected via IRC5 diagnostics — consistently report lower average energy costs per part, reduced unplanned downtime, and more predictable maintenance budgets compared to run-to-failure strategies. Every 3HAC031580-001 unit supplied by ZYPLC undergoes functional load testing and electrical verification prior to shipment, with full traceability documentation. Stock is maintained for shipment arranged after confirmation, supporting both planned maintenance windows and emergency replacement scenarios. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions.

Product Sourcing FAQ

Q1: How much energy can replacing a worn 3HAC031580-001 actually save?
A degraded gearbox increases friction losses and forces the DSQC servo drive to draw higher current to maintain position accuracy. In typical IRB 7600 applications, restoring gearbox efficiency with a genuine 3HAC031580-001 reduces per-axis energy consumption by 5–12%, with total robot operational stability of 8–15% per shift. Facilities with continuous multi-shift operations typically recover the replacement cost within 3–6 months through reduced energy expenditure alone.

Q2: Which IRB 7600 variants is the 3HAC031580-001 compatible with?
The 3HAC031580-001 is designed for the ABB IRB 7600 series, covering the IRB 7600-150/3.5, IRB 7600-325/3.1, IRB 7600-400/2.55, IRB 7600-500/2.55, and IRB 7600-500/3.0 variants. Compatibility depends on the specific axis and robot configuration. Please confirm your robot’s serial number and axis assignment before ordering — our technical team can verify compatibility from your robot’s documentation.

Q3: What is the recommended replacement interval and how is the unit tested before shipment?
ABB recommends gearbox inspection at standard maintenance intervals (typically every 10,000–20,000 operating hours depending on load profile), with replacement triggered by backlash measurement, abnormal noise, or increased axis current consumption detected via IRC5 diagnostics. Every 3HAC031580-001 from ZYPLC is load-tested prior to shipment to verify torque transmission efficiency, backlash within OEM specification, and absence of abnormal vibration or thermal behavior.

Q4: What does the warranty terms confirmed during quotation cover and how does the return process work?
The warranty terms confirmed during quotation covers manufacturing defects and functional failure under normal operating conditions as specified in ABB IRB 7600 technical documentation. It does not cover damage from improper installation, operation outside rated parameters, or contamination. To initiate a warranty claim, contact ZYPLC with your order reference and a fault description — our technical team will arrange inspection and replacement or refund within the agreed service timeline.
