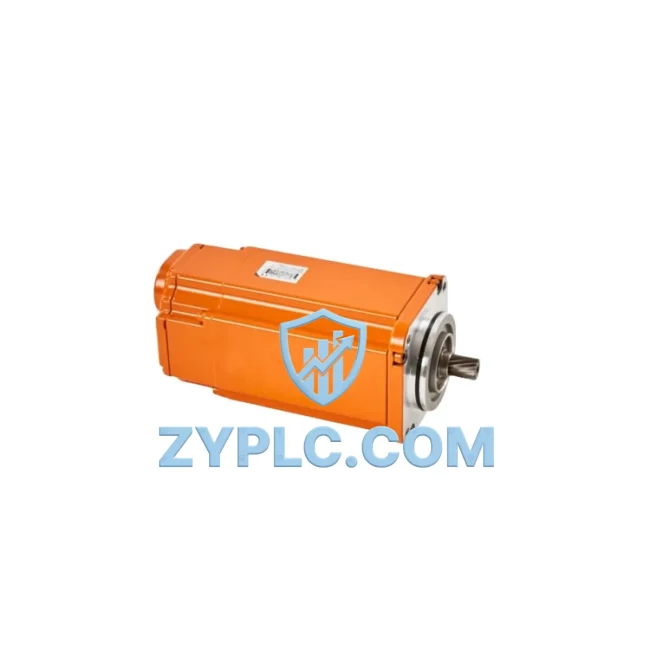

ABB 3HAC033207-006 System-Ready AC Servo Motor for IRB 6600 Architecture

ABB 3HAC033207-006 System-Ready AC Servo Motor for IRB 6600 Architecture: Control System Architecture and Upstream-Downstream Coordination

In high-payload industrial robotics, the integrity of the motion control architecture depends on the precise coordination of every drive axis. The ABB 3HAC033207-006 is a factory-engineered AC servo motor designed specifically for deployment within the IRB 6600 and IRB 6650 robot families — ABB’s flagship heavy-duty articulated robot platforms widely used in automotive body-in-white welding, foundry handling, press tending, and palletizing applications. This motor is not a standalone component; it is a system-defined element that occupies a precise position within ABB’s layered motion control architecture, interfacing directly with the IRC5 controller, the DSQC series drive modules, and the robot’s mechanical transmission system.

Understanding the 3HAC033207-006 in its full architectural context — from the controller layer down through the drive layer, feedback layer, and mechanical execution layer — is essential for engineers responsible for system commissioning, preventive maintenance, and long-term asset management. This product is supplied with a 12-Month Warranty and is available from verified stock, supporting rapid deployment and minimizing unplanned downtime in production-critical environments.

Architecture Specification Table

Coordinated Control System Design

The ABB 3HAC033207-006 servo motor functions as the mechanical execution endpoint of a tightly integrated multi-layer control architecture. At the top of the hierarchy, the IRC5 controller — ABB’s fifth-generation robot controller — manages all motion planning, path interpolation, and safety supervision. The IRC5 communicates with the axis drive layer through an internal high-speed drive bus, delivering torque and velocity commands to the DSQC 661 and DSQC 663 axis drive modules, which in turn regulate the current waveforms delivered to the 3HAC033207-006 motor windings.

The motor’s integrated feedback device — a resolver or encoder depending on axis assignment — returns real-time position and velocity data to the IRC5 via the SMB (Serial Measurement Board), referenced under part numbers such as 3HAC14673-9 and 3HAC033203-001. This closed-loop feedback architecture ensures sub-millimeter path accuracy across all six axes of the IRB 6600, even under full payload conditions of 200–300 kg.

At the power layer, the IRC5 drive system power supply — including rectifier and DC bus components — provides the regulated DC bus voltage from which the axis drives synthesize the three-phase AC waveform for the servo motor. Proper coordination between the power supply capacity and the aggregate motor load across all axes is a critical design consideration in multi-robot cell configurations.

The mechanical transmission layer connects the 3HAC033207-006 motor output shaft to the robot’s gearbox assembly. Companion components including the 3HAC14750-1 and 3HAC14750-2 gearbox units are directly coupled to this motor in specific axis configurations, and their condition must be assessed in parallel during any motor replacement procedure to ensure system-level mechanical integrity.

At the human-machine interface layer, ABB’s FlexPendant (IRC5-compatible teach pendant) provides the operator interface for axis jogging, program execution, and fault diagnostics. During commissioning of a replacement 3HAC033207-006 motor, the FlexPendant is used to execute the revolution counter update procedure — a mandatory calibration step that re-synchronizes the SMB feedback data with the IRC5 motion model after any motor or resolver replacement.

For installations requiring functional safety or redundant stop circuits, the IRC5 controller integrates with ABB’s SafeMove2 safety module, which monitors axis positions and velocities in real time and can trigger safe-rated stops independently of the main motion controller. The 3HAC033207-006 motor’s feedback signals are also monitored by SafeMove2 for cross-channel position verification, making the motor a participant in the robot’s overall functional safety architecture.

Application in Layered Automation Systems

Automotive Manufacturing: In body-in-white welding cells, the IRB 6600 is typically deployed in multi-robot configurations where two to six robots operate in synchronized motion sequences. The 3HAC033207-006 motor’s high torque density and thermal stability are essential for maintaining path repeatability across high-duty-cycle welding programs. Motor health directly affects weld quality, as positional drift caused by a degraded servo motor can result in missed weld spots or fixture interference.

Foundry and Die Casting: ABB’s IRB 6600F (Foundry Plus) variant, which shares the same servo motor architecture, is deployed in environments with elevated ambient temperatures, metal splash, and airborne contaminants. The 3HAC033207-006 motor’s sealed construction and ABB’s IP67-rated protection options make it suitable for these demanding conditions. Planned motor replacement intervals — supported by 12-Month Warranty coverage — are a standard element of foundry maintenance programs.

Press Tending and Material Handling: In press tending applications, the IRB 6600 operates in high-speed, high-inertia cycles, placing significant dynamic load demands on the servo motors. The 3HAC033207-006 is engineered to handle these cyclic load profiles, and its Contextual Integration with the IRC5 drive system ensures that regenerative braking energy is managed correctly within the DC bus architecture, protecting both the motor and the drive electronics.

Palletizing and Logistics: In end-of-line palletizing systems, the IRB 6600’s large working envelope and high payload capacity are leveraged for stacking heavy cartons, bags, or containers. Servo motor reliability in these applications is directly linked to overall line OEE (Overall Equipment Effectiveness), as an unplanned motor failure can halt an entire packaging line. Maintaining a verified spare 3HAC033207-006 unit in inventory — backed by a 12-Month Warranty — is a recognized best practice in high-volume logistics operations.

Architecture Engineering FAQ

Q1: Is the 3HAC033207-006 directly interchangeable with the 3HAC057547-004, and are there any firmware or parameter changes required after substitution?

The 3HAC057547-004 is the current ABB catalog replacement for the 3HAC033207-006 in specific axis configurations of the IRB 6600/6650. While the mechanical and electrical interfaces are compatible, engineers should verify the axis configuration file within the IRC5 controller (RobotWare system parameters) to confirm that the motor data file matches the installed unit. In most cases, the revolution counter update procedure via the FlexPendant is the only mandatory post-installation step, but a full axis calibration check is recommended to confirm path accuracy within specification.

Q2: Can the 3HAC033207-006 be used in an IRB 6600 system that has been upgraded to a newer RobotWare version, and does the 12-Month Warranty remain valid in this configuration?

The 3HAC033207-006 motor is a hardware component whose compatibility is determined by the mechanical and electrical interface of the robot arm and IRC5 drive system, not by the RobotWare software version. RobotWare upgrades do not affect motor compatibility. The 12-Month Warranty provided by ZYPLC covers the motor unit itself against manufacturing defects and premature failure under normal operating conditions, and remains valid regardless of the RobotWare version installed on the IRC5 controller.

Q3: What is the recommended procedure for long-term storage of a spare 3HAC033207-006 unit, and how does ZYPLC’s 12-Month Warranty apply to stored inventory?

For long-term storage, the 3HAC033207-006 should be kept in its original packaging in a dry, temperature-controlled environment (typically 0–40°C, <85% RH non-condensing) away from strong magnetic fields and vibration sources. The motor’s resolver or encoder should not be subjected to mechanical shock during storage. ZYPLC’s 12-Month Warranty period begins from the date of dispatch, providing a defined coverage window that aligns with standard spare parts inventory planning cycles in industrial maintenance programs.
