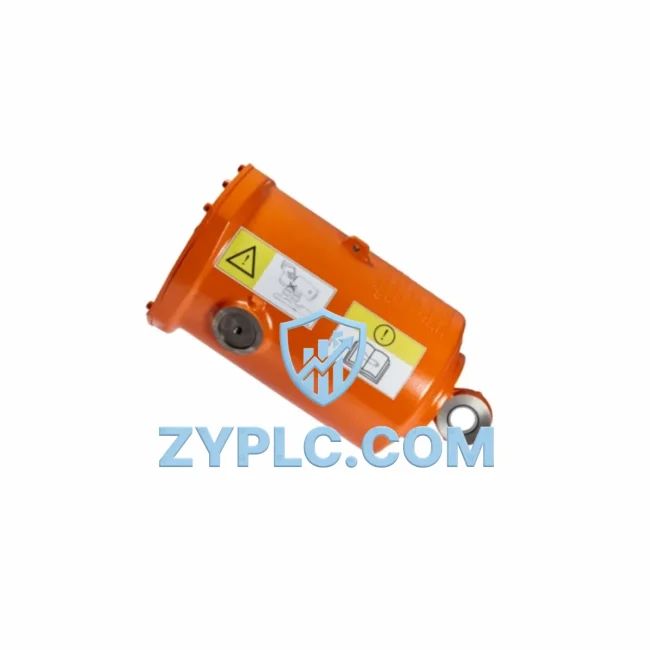

ABB 3HAC034526-003 System-Ready AC Servo Motor for IRB 6660

ABB 3HAC034526-003 System-Ready AC Servo Motor for IRB 6660: Control System Architecture and Upstream-Downstream Coordination

The ABB 3HAC034526-003 is a precision AC servo motor engineered specifically for deployment within the IRB 6660 and IRB 760 robotic control architectures. Rather than functioning as a standalone drive component, this motor is designed to operate as an integrated node within a multi-layer automation system — coordinating seamlessly across the control layer, I/O layer, power layer, communication layer, and execution layer to deliver consistent, high-performance motion control in demanding industrial environments.

In modern industrial automation, the reliability of a servo motor is inseparable from the integrity of the system architecture surrounding it. The 3HAC034526-003 is built to satisfy this requirement, offering predictable electrical behavior, stable encoder feedback, and robust mechanical coupling that supports the full signal chain from the IRC5 controller cabinet down to the robot joint axis. Its design reflects ABB’s commitment to contextual integration — ensuring that every component contributes to system-wide consistency rather than introducing variability at the axis level.

Architecture Specification Table

Coordinated Control System Design

The 3HAC034526-003 does not operate in isolation. Its performance is directly dependent on — and contributes to — the coordinated function of every layer in the IRB 6660 control architecture. Understanding this interdependency is essential for system engineers responsible for commissioning, maintenance planning, and spare parts procurement.

At the control layer, the IRC5 controller (including variants such as the IRC5 Compact and IRC5 Panel Mounted Controller) serves as the central processing unit that generates motion trajectories and transmits axis commands via the internal drive bus. The 3HAC034526-003 receives these commands through the DSQC 661 axis computer board or equivalent drive interface module, which translates high-level motion instructions into precise current and torque commands delivered to the motor windings.

Power delivery to the servo motor is managed through the DSQC 374 drive unit or the 3HAC025338-001 drive module, which conditions the DC bus voltage from the main power supply unit — typically the 3HAC036447-001 power supply assembly — into the variable-frequency AC output required for servo operation. Stable power architecture is non-negotiable: voltage ripple or transient spikes at the drive output directly affect motor torque consistency and encoder signal integrity.

Encoder feedback from the 3HAC034526-003 is routed back to the IRC5 controller via the measurement board (SMB — Serial Measurement Board, 3HAC14550-2), which aggregates position data from all robot axes and transmits it to the main computer for closed-loop position control. Any degradation in the SMB connection or the motor’s resolver signal will manifest as axis positioning errors or fault codes in the FlexPendant interface.

At the I/O layer, the DSQC 652 digital I/O module and associated DSQC 378B bus adapter manage discrete signal exchange between the robot controller and external safety systems, conveyor synchronization signals, and tooling control outputs. While these modules do not directly interface with the servo motor, their correct configuration is essential for coordinating the robot’s motion with upstream and downstream process equipment — ensuring that the 3HAC034526-003 operates within a synchronized production cycle rather than as an isolated actuator.

For applications requiring high availability, the IRC5 architecture supports redundant controller configurations. In such deployments, the 3HAC026254-001 backup power unit ensures that the controller retains axis position data and program state during power interruptions, preventing the need for full re-homing sequences after recovery. The 3HAC034526-003’s resolver-based feedback is particularly well-suited to this architecture, as absolute position data is retained without battery dependency at the motor level.

Application in Layered Automation Systems

The IRB 6660 platform — and by extension the 3HAC034526-003 servo motor — is deployed across a wide range of heavy-duty industrial applications where payload capacity, reach, and positional repeatability are critical system requirements.

In automotive body-in-white manufacturing, the IRB 6660 is commonly used for spot welding, press tending, and material handling operations. The 3HAC034526-003 drives the high-torque axes responsible for positioning the robot arm under load, where consistent servo response directly affects weld quality and cycle time. Integration with the welding controller is managed through the IRC5’s DeviceNet or PROFIBUS gateway, ensuring that servo motion and welding current delivery are precisely synchronized.

In foundry and die-casting environments, the IRB 6660’s IP67-rated variants operate in high-temperature, high-particulate conditions. The 3HAC034526-003’s sealed construction and Class F insulation rating make it suitable for these environments, provided that the cooling airflow to the IRC5 cabinet is maintained within specification. Preventive maintenance schedules in these applications typically include annual servo motor inspection, bearing replacement assessment, and encoder signal verification — all of which are supported under the 12-Month Warranty coverage provided with each unit supplied by ZYPLC.

In metal fabrication and laser cutting lines, the IRB 760 platform shares several drive components with the IRB 6660 family, including compatible servo motor variants. The 3HAC034526-003 may be applicable across both platforms depending on axis assignment, making it a strategically valuable spare part for facilities operating mixed IRB fleets. Maintaining a single spare motor SKU that covers multiple robot models reduces inventory complexity and improves mean time to repair (MTTR) in the event of an unplanned axis failure.

In process industries including petrochemical, water treatment, and power generation, robotic systems based on the IRC5 platform are increasingly deployed for inspection, valve actuation, and sample handling tasks. In these environments, system uptime requirements are extreme, and the availability of certified replacement components — such as the 3HAC034526-003 with documented 12-Month Warranty — is a procurement requirement rather than a preference.

Architecture Engineering FAQ

Q1: Is the 3HAC034526-003 compatible with both the IRB 6660 and IRB 760, and can it be used as a cross-platform spare?
The 3HAC034526-003 is primarily specified for the IRB 6660 series, with documented compatibility extending to certain IRB 760 axis configurations. Cross-platform applicability depends on the specific axis assignment and mechanical interface requirements of the target robot model. Engineers should verify the axis number and mechanical flange specification against the robot’s spare parts manual (available via ABB’s documentation portal) before substituting this motor across platforms. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q2: What commissioning steps are required after replacing the 3HAC034526-003 in an IRB 6660 system?
Following physical installation, the replacement procedure requires updating the revolution counter via the FlexPendant (fine calibration or revolution counter update depending on whether the robot was moved during motor removal), verifying encoder signal integrity through the IRC5 diagnostic interface, and performing a test cycle at reduced speed before returning the robot to full production speed. If the SMB battery was disconnected during the procedure, a full axis calibration sequence may be required. All replacement units supplied by ZYPLC are tested prior to dispatch to confirm electrical integrity, reducing the risk of commissioning failures attributable to the component itself.

Q3: What does the 12-Month Warranty cover, and what is the process for a warranty claim?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, winding failures, encoder faults, and functional failures that occur under normal operating conditions within 12 months of the invoice date. It does not cover damage resulting from incorrect installation, overvoltage events, mechanical impact, or operation outside the specified environmental parameters. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the invoice number, fault description, and photographic evidence of the failure. Replacement or repair will be coordinated within the agreed lead time.
