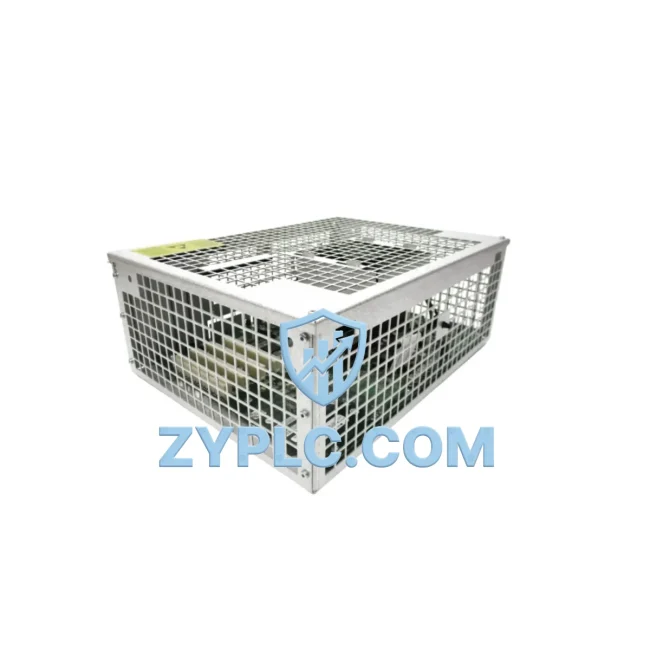

The ABB DSQC639, referenced under part number 3HAC041443-003, is the central main computer unit engineered specifically for the IRC5 robot controller platform. Within a fully integrated industrial automation architecture, this module serves as the cognitive core of the control system — coordinating motion planning, I/O signal processing, program execution, and inter-module communication across all layers of the control hierarchy. Rather than functioning as a standalone component, the DSQC639 is designed to operate in seamless coordination with upstream and downstream system elements, making it a foundational asset in any IRC5-based robotic cell or production line.

In layered automation environments — spanning discrete manufacturing, automotive assembly, arc welding, material handling, and process-integrated robotics — the DSQC639 anchors the control layer. It interfaces directly with the IRC5 cabinet’s power distribution unit, the axis computer (DSQC668 or DSQC1000), and the I/O communication bus, ensuring that every motion command, sensor signal, and safety interlock is processed with deterministic timing and system-level consistency. Its architecture supports both single-cabinet and MultiMove configurations, making it equally applicable in standalone robot cells and coordinated multi-robot workcells.

Architecture Specification Table

Coordinated Control System Design

The DSQC639 does not operate in isolation. Its value is realized through tight integration with every functional layer of the IRC5 control architecture. At the motion control layer, it communicates with the DSQC668 Axis Computer and DSQC1000 Drive Unit to translate high-level motion programs into precise servo commands across all robot axes. The axis computer handles real-time interpolation and current loop control, while the DSQC639 manages the program scheduler, path planning engine, and system state machine.

At the I/O layer, the DSQC639 interfaces with distributed I/O modules such as the DSQC652 Digital I/O Board and DSQC651 Analog I/O Board, which handle field-level signal acquisition from sensors, actuators, and safety devices. These modules connect to the DSQC639 via the internal DeviceNet or PROFIBUS backplane, ensuring low-latency signal exchange critical for process-synchronized robotic operations.

For network-layer integration, the DSQC639 supports Ethernet connectivity to plant-level SCADA systems, MES platforms, and PLC supervisory controllers. When combined with the DSQC688 Ethernet/IP Adapter or DSQC679 PROFIBUS Adapter, the IRC5 system can participate in broader factory automation networks, enabling real-time data exchange, remote diagnostics, and coordinated production scheduling.

The power layer is managed by the IRC5 cabinet’s internal DSQC661 Power Supply Unit, which provides regulated 24 VDC to the DSQC639 and all connected modules. Redundant power configurations can be implemented in high-availability applications, ensuring that a single power fault does not interrupt production. The DSQC639’s onboard watchdog and self-diagnostic routines continuously monitor system health, triggering controlled shutdowns or failover sequences when anomalies are detected.

At the human-machine interface layer, the DSQC639 communicates with the IRC5 FlexPendant (DSQC679 or equivalent), providing operators with real-time program status, alarm management, and manual jogging capability. The FlexPendant connects via a dedicated USB/Ethernet port on the DSQC639, maintaining a secure and isolated operator interface channel separate from the production network.

For applications requiring functional safety, the DSQC639 integrates with the DSQC400 Safety Board and external safety PLCs via hardwired safety circuits or SafeMove2 software. This enables speed monitoring, zone supervision, and collaborative robot operation within the same IRC5 cabinet — without requiring a separate safety controller.

Application in Layered Automation Systems

In automotive body-in-white manufacturing, the DSQC639 serves as the control core for spot welding and material handling robots operating in synchronized multi-robot cells. Its MultiMove support allows up to four coordinated robot arms to share a single IRC5 controller, reducing cabinet footprint and simplifying network topology in high-density production environments.

In arc welding and fabrication applications, the DSQC639 manages weld process synchronization between the robot motion program and external weld power sources via analog I/O signals routed through the DSQC651. Precise timing between arc ignition, wire feed, and robot path execution is critical, and the DSQC639’s deterministic real-time scheduler ensures microsecond-level coordination.

In electronics assembly and semiconductor handling, the DSQC639 supports high-speed pick-and-place operations with vision system integration via Ethernet. Camera trigger signals, part recognition data, and offset corrections are processed by the DSQC639 in real time, enabling adaptive path correction without halting the production cycle.

In petrochemical and process industry environments, the DSQC639 operates within explosion-protected IRC5 cabinets, managing robotic inspection, valve actuation, and sample handling tasks in hazardous zones. Its robust operating temperature range and sealed cabinet installation make it suitable for demanding industrial environments where ambient conditions fluctuate significantly.

In logistics and warehousing automation, the DSQC639 coordinates palletizing and depalletizing robots integrated with conveyor systems, barcode scanners, and WMS platforms. EtherNet/IP connectivity allows the IRC5 system to receive real-time pallet configuration data from the warehouse management system, dynamically adjusting robot programs without manual reprogramming.

Architecture Engineering FAQ

Q1: Is the DSQC639 (3HAC041443-003) a direct drop-in replacement for earlier IRC5 main computer units such as the DSQC609 or DSQC610?
A: The DSQC639 is the designated successor to earlier IRC5 main computer modules and is compatible with IRC5 cabinets running RobotWare 5.x and 6.x. In most cases, it is a direct replacement requiring no cabinet modifications. However, RobotWare version alignment and system parameter backup/restore procedures should be performed by a qualified ABB service engineer to ensure full functional compatibility. ZYPLC provides pre-shipment testing and configuration verification as part of the 12-Month Warranty coverage.

Q2: Can the DSQC639 support fieldbus communication expansion for PROFIBUS or EtherNet/IP integration in existing plant networks?
A: Yes. The DSQC639 supports fieldbus expansion through optional communication adapter boards installed within the IRC5 cabinet. The DSQC679 PROFIBUS Adapter and DSQC688 EtherNet/IP Adapter are fully compatible and can be added without replacing the main computer unit. This allows the IRC5 system to integrate with Siemens S7, Allen-Bradley ControlLogix, or Schneider Modicon PLCs operating as supervisory controllers on the plant network. Contextual Integration with existing automation infrastructure is a core design principle of the IRC5 platform.

Q3: What does the 12-Month Warranty cover, and what support does ZYPLC provide for long-term maintenance of the DSQC639?
A: The 12-Month Warranty provided by ZYPLC covers functional defects, premature component failure, and compatibility issues identified during normal operation within the specified IRC5 architecture. All units undergo functional testing prior to shipment. For long-term maintenance, ZYPLC maintains inventory of DSQC639 and related IRC5 modules to support rapid replacement in the event of unplanned downtime. Our technical team is available to assist with system diagnostics, RobotWare configuration, and spare parts planning. Contact us at +86 19859288691 or [email protected] for engineering support.
