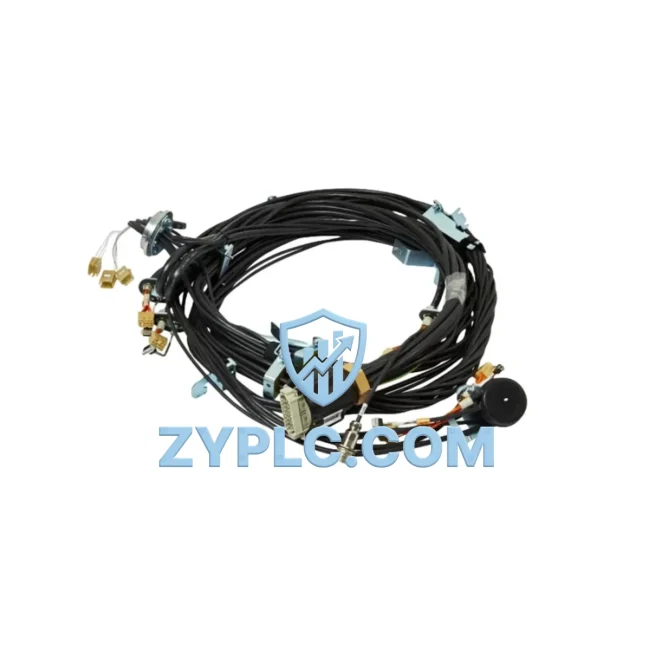

ABB 3HAC042840-001 Manipulator Harness for IRB 6700

ABB 3HAC042840-001 Manipulator Harness for IRB 6700: Control System Coordination and Upstream–Downstream Synergy

The ABB 3HAC042840-001 is a factory-engineered manipulator harness cable assembly designed specifically for the ABB IRB 6700 series of industrial robots. Within a layered automation architecture, this harness serves as the critical signal and power conduit spanning Axis 1 through Axis 6, ensuring uninterrupted communication between the robot controller, servo drives, and end-effector systems. Its role is not merely mechanical — it is a foundational element of system integrity, directly influencing control loop stability, I/O signal fidelity, and long-term maintenance efficiency across the entire robotic cell.

In modern industrial automation, the reliability of a manipulator harness determines the reliability of the entire robotic system. The 3HAC042840-001 is engineered to ABB’s exacting specifications, using shielded multi-conductor cable construction that resists electromagnetic interference from adjacent servo drives, frequency inverters, and high-current bus systems. This shielding is essential in environments where the ABB IRC5 controller or ABB OmniCore controller must maintain deterministic communication with axis servo modules across all six joints simultaneously.

From a control architecture perspective, the harness integrates seamlessly into the robot’s internal signal flow: resolver and encoder feedback signals from each axis motor travel through dedicated shielded channels within the harness, feeding real-time position data back to the ABB DSQC 661 or DSQC 679 drive units housed within the controller cabinet. Any degradation in harness continuity — caused by wear, improper routing, or connector fatigue — directly impacts the servo loop’s ability to maintain positional accuracy, potentially triggering axis fault codes and unplanned downtime.

The 3HAC042840-001 is also designed with system expandability in mind. As IRB 6700 installations are frequently deployed in multi-robot cells coordinated via ABB RobotWare and RAPID programming, the harness must support consistent signal behavior across extended duty cycles. In high-throughput manufacturing environments — automotive body-in-white lines, heavy fabrication cells, foundry automation — the harness is subjected to continuous flexing, torsional stress, and thermal cycling. ABB’s cable management design for the IRB 6700 routes the harness through a protected internal conduit, reducing external abrasion and extending service intervals.

For system integrators and maintenance engineers, the 3HAC042840-001 supports a predictive maintenance strategy. By monitoring harness condition as part of scheduled robot service intervals — typically every 10,000 operating hours or per ABB’s maintenance schedule — engineering teams can avoid reactive failures. Pairing harness replacement with inspection of the ABB 3HAC044168-001 axis 1 motor cable and the 3HAC043787-001 SMB (Serial Measurement Board) cable ensures that the entire signal chain from controller to end-effector is renewed simultaneously, eliminating latent fault sources.

In redundant or safety-rated cell designs, the harness interacts with the robot’s integrated safety architecture. The IRB 6700’s SafeMove2 safety module — configured via the ABB DSQC 1015 safety controller — relies on accurate axis position feedback delivered through the harness to enforce speed and zone monitoring functions. A compromised harness can cause SafeMove2 to generate safety violations, halting production. Specifying a genuine 3HAC042840-001 replacement ensures that safety-rated feedback channels maintain their certified performance characteristics.

Beyond the robot itself, the harness replacement process intersects with broader control cabinet architecture. The ABB IRC5 single cabinet or IRC5 dual cabinet configuration houses the main computer module, axis computer, drive units, and I/O modules — all of which depend on clean signal transmission from the manipulator. During harness replacement, engineers typically also inspect the ABB 3HAC025338-001 customer connection panel and verify the integrity of the 3HAC026253-001 power supply unit connections to ensure the cabinet’s power distribution layer is not contributing to signal noise.

Supply chain continuity is a critical consideration for facilities operating multiple IRB 6700 units. Maintaining a spare 3HAC042840-001 harness in the plant’s MRO inventory eliminates the risk of extended downtime caused by lead-time delays. ZYPLC maintains verified stock of this harness assembly, supported by a 12-Month Warranty covering manufacturing defects and connector integrity. Each unit is tested prior to dispatch to confirm continuity across all conductor pairs and shield connections.

The system integration approach at ZYPLC means that when you source the 3HAC042840-001, our technical team can advise on compatible components within the same IRB 6700 system architecture — including axis motors, SMB boards, brake release units, and controller spare parts — ensuring that your replacement strategy addresses the full system context rather than a single component in isolation.

Product Specification Table

System Compatibility Notes

The ABB 3HAC042840-001 harness operates within a tightly coordinated control system that spans multiple architectural layers. At the controller level, the ABB IRC5 main computer (DSQC 1000) executes RAPID motion programs and dispatches axis commands to the DSQC 661 drive units, which modulate current to each axis servo motor. The harness carries both the motor power conductors and the resolver feedback signals that close the servo loop, making it the physical backbone of the motion control chain.

At the I/O layer, the robot cell typically integrates ABB DSQC 652 digital I/O modules or DSQC 378B analog I/O boards to interface with external conveyors, grippers, and safety light curtains. These I/O signals are coordinated with robot motion through the IRC5’s internal bus, but their timing depends on the axis feedback integrity provided by the harness. At the network layer, ABB DSQC 688 Ethernet/IP or DSQC 679 fieldbus adapter modules connect the robot controller to the plant’s SCADA or DCS system, enabling supervisory coordination across the production line.

The power layer — anchored by the ABB 3HAC025338-001 power distribution board and the 3HAC026253-001 PSU — supplies regulated DC power to the drive units and controller boards. The harness interfaces with this layer through the axis motor brake circuits, which must receive reliable brake release signals to enable safe robot motion. At the HMI layer, operators interact with the robot via the ABB FlexPendant (IRC5 teach pendant), monitoring axis positions and fault states that are directly dependent on harness signal quality. At the execution layer, the end-effector — whether a welding torch, gripper, or dispensing tool — receives its motion commands through the coordinated action of all six axes, each of which depends on the 3HAC042840-001 harness for accurate position feedback.

Industrial Application Notes

The ABB 3HAC042840-001 harness finds application across a broad range of industrial sectors where the IRB 6700 is deployed. In automotive manufacturing, IRB 6700 robots perform spot welding, material handling, and press tending on body-in-white lines, where harness reliability directly impacts cycle time consistency and weld quality. In heavy fabrication and structural steel applications, the robot’s high payload capacity (up to 235 kg) demands that the harness maintain signal integrity under sustained high-torque axis loading.

In foundry and die-casting environments, the IRB 6700 operates in high-temperature, high-vibration conditions where harness durability is paramount. The internal conduit routing of the 3HAC042840-001 protects conductors from thermal degradation and mechanical abrasion in these demanding settings. In logistics and palletizing applications, continuous high-cycle operation accelerates harness wear, making scheduled replacement a standard element of the preventive maintenance program.

In process industries — including chemical, petrochemical, and water treatment — IRB 6700 robots are increasingly deployed for sampling, valve operation, and hazardous material handling. In these environments, the integrity of the safety-rated feedback channels within the harness is essential for maintaining SafeMove2 compliance and ensuring that the robot operates within its certified safety envelope at all times.

Product Compatibility FAQ

Q1: Is the 3HAC042840-001 compatible with all IRB 6700 variants, and does it require any controller configuration changes after replacement?
The 3HAC042840-001 is the standard manipulator harness for the ABB IRB 6700 series and is compatible across all payload variants (150, 175, 200, 235 kg) and reach configurations. No controller parameter changes are required after replacement, as the harness is a passive cable assembly. However, after installation, it is recommended to perform a full axis calibration using the ABB IRC5 calibration routine to verify resolver offset values and confirm that all six axes report correct position feedback before returning the robot to production.

Q2: How does harness condition affect SafeMove2 performance, and what are the signs of harness degradation in a safety-rated installation?
SafeMove2 relies on dual-channel position feedback from each axis to enforce speed monitoring, zone supervision, and standstill detection. A degraded harness — exhibiting intermittent continuity, increased shield resistance, or connector oxidation — can cause SafeMove2 to generate spurious safety violations (e.g., axis position deviation faults) or, in severe cases, fail to detect actual safety boundary breaches. Early indicators of harness degradation include intermittent axis fault codes (e.g., 50024 or 50025 in IRC5), increased position error during high-speed moves, and abnormal resolver signal amplitude readings during diagnostics. Proactive replacement at the first sign of these symptoms is strongly recommended in safety-rated installations.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC’s system integration support long-term maintenance planning?
ZYPLC’s 12-Month Warranty on the 3HAC042840-001 covers manufacturing defects, conductor continuity failures, and connector integrity issues arising under normal operating conditions. Each harness is tested prior to shipment to verify continuity across all conductor pairs and shield connections. ZYPLC’s system integration service means that our technical team can assist you in identifying all related components within your IRB 6700 system architecture — including SMB boards, axis motors, drive units, and controller spare parts — so that your maintenance strategy addresses the full system context. This reduces the risk of secondary failures after harness replacement and supports a structured, cost-effective long-term maintenance plan for your robotic cell.
