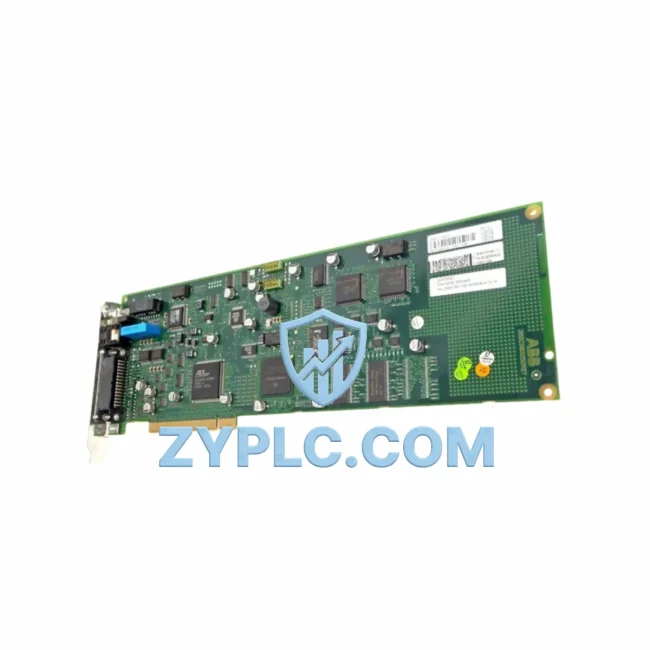

The ABB DSQC532 (3HAC12158-1) is the central computer board module of the IRC5 robot controller, engineered to deliver precise, low-latency processing for multi-axis robot motion while maintaining a lean power profile. In modern manufacturing environments where energy costs and equipment uptime are equally critical, the DSQC532 serves as the intelligence hub that coordinates motion planning, I/O communication, and system diagnostics — all with minimal thermal output and optimized power draw. Whether deployed in automotive body welding, electronics assembly, or palletizing lines, this module enables factories to extract maximum productivity from every kilowatt consumed.

Product Specification Table

System Compatibility and Application

The DSQC532 does not operate in isolation — its energy efficiency is realized through tight integration with the broader IRC5 control architecture. At the power input stage, the DSQC539 power supply unit conditions and distributes 24 VDC to the computer board and peripheral modules, ensuring stable voltage delivery that prevents energy-wasting voltage fluctuations. Alongside it, the DSQC609 I/O module handles digital signal exchange between the robot controller and field devices, reducing polling overhead and unnecessary CPU wake cycles.

For axis-level motion control, the DSQC532 communicates directly with the DSQC540 axis computer, which translates high-level motion commands into precise servo drive signals. This division of processing responsibility keeps the main computer board focused on path planning and system coordination rather than low-level drive management — a key factor in reducing computational unplanned downtime. The DSQC627 servo drive module further refines motor current delivery, applying only the torque required for each motion segment rather than running at fixed power levels.

On the human-machine interface side, the DSQC611 FlexPendant interface board manages operator communication with minimal bus traffic, while the DSQC652 digital I/O board expands field connectivity for sensors, actuators, and safety interlocks without adding significant power load. For applications requiring functional safety compliance, the DSQC663 safety board works in parallel with the DSQC532 to monitor emergency stop circuits and speed supervision — ensuring that safety functions do not consume unnecessary processing cycles on the main computer.

In high-demand production cells where multiple robots share a common power infrastructure, the DSQC639 rectifier unit manages AC-to-DC conversion efficiency at the cabinet level, directly influencing the total energy footprint of the robot system. When the DSQC532 is operating within a well-configured IRC5 cabinet — with properly matched DSQC539, DSQC639, and DSQC627 components — the entire drive chain operates at peak efficiency, minimizing reactive power losses and heat generation that would otherwise require additional cooling energy.

Maintenance and Replacement Notes

In a typical automotive stamping and welding line running three shifts, the IRC5 controller equipped with a healthy DSQC532 module can sustain robot cycle times within ±2 ms of the programmed path, eliminating the micro-stoppages that accumulate into significant production losses over a shift. When the computer board degrades — through memory errors, communication timeouts, or thermal stress — cycle time variance increases, forcing operators to reduce robot speed to maintain weld quality. This speed reduction supports steadier operation and lower maintenance risk during production.

Replacing a faulty or aging DSQC532 with a tested, verified unit restores the controller’s ability to execute ABB’s QuickMove and TrueMove algorithms at full fidelity. QuickMove optimizes acceleration and deceleration profiles to minimize motor load during non-productive travel segments, while TrueMove ensures the robot follows the programmed path precisely — avoiding the energy-wasting corrective micro-movements that occur when path deviation is detected and compensated in real time.

From a predictive maintenance perspective, the DSQC532 also plays a role in system health monitoring. The IRC5 controller logs diagnostic data — including axis load, temperature trends, and communication error rates — that maintenance teams can use to schedule interventions before unplanned downtime occurs. A degraded computer board that generates intermittent communication errors with the DSQC540 axis computer or the DSQC652 I/O board will produce noisy diagnostic logs that obscure genuine early-warning signals from servo drives and motors. Restoring a clean, fully functional DSQC532 improves the signal-to-noise ratio of the controller’s diagnostic output, making predictive maintenance strategies more effective.

For facilities managing multiple IRC5 robots across several production cells, maintaining a spare DSQC532 in inventory is a straightforward strategy to cap mean time to repair (MTTR) at under two hours for computer board failures — compared to days or weeks if the part must be sourced reactively. Every hour of robot downtime in a high-volume line represents not only lost production but also the energy cost of keeping peripheral systems — conveyors, cooling, lighting, HVAC — running without productive output. A stocked spare eliminates this hidden energy and productivity drain.

All DSQC532 units supplied by ZYPLC are individually tested under simulated IRC5 operating conditions before shipment, verifying boot sequence integrity, memory function, communication bus performance, and thermal stability. This pre-shipment validation ensures that the replacement module performs at specification from the first power-on, avoiding the energy and time cost of iterative troubleshooting on the production floor.

Product Sourcing FAQ

Q1: How does replacing the DSQC532 improve energy efficiency in an IRC5 robot system?
A degraded DSQC532 causes the IRC5 controller to execute motion paths with increased deviation, forcing the servo system to apply corrective torque that consumes additional motor energy. A fully functional DSQC532 enables precise QuickMove and TrueMove path execution, reducing unnecessary motor current draw and lowering the overall operating load per production cycle.

Q2: Is the DSQC532 (3HAC12158-1) compatible with all IRC5 controller variants?
The DSQC532 is designed for the ABB IRC5 platform, including the Single Cabinet, Panel Mounted Controller, and IRC5 Compact variants. Compatibility should be verified against the specific robot model and software version. ZYPLC’s technical team can assist with cross-referencing your controller serial number and RobotWare version before purchase.

Q3: What is the recommended replacement process to minimize production downtime?
The standard procedure involves powering down the IRC5 cabinet, documenting the existing system configuration via RobotStudio backup, swapping the DSQC532 module, restoring the system backup, and performing a controlled test cycle before returning the robot to production. With a pre-tested replacement unit from ZYPLC, the entire process typically takes under two hours for an experienced maintenance technician.

Q4: What warranty and testing assurance does ZYPLC provide for the DSQC532?
Every DSQC532 unit shipped by ZYPLC carries a 12-month warranty covering functional defects under normal operating conditions. Prior to shipment, each unit undergoes functional testing that validates boot integrity, memory performance, and communication bus operation under simulated IRC5 load conditions. Units that do not meet specification are not shipped.
