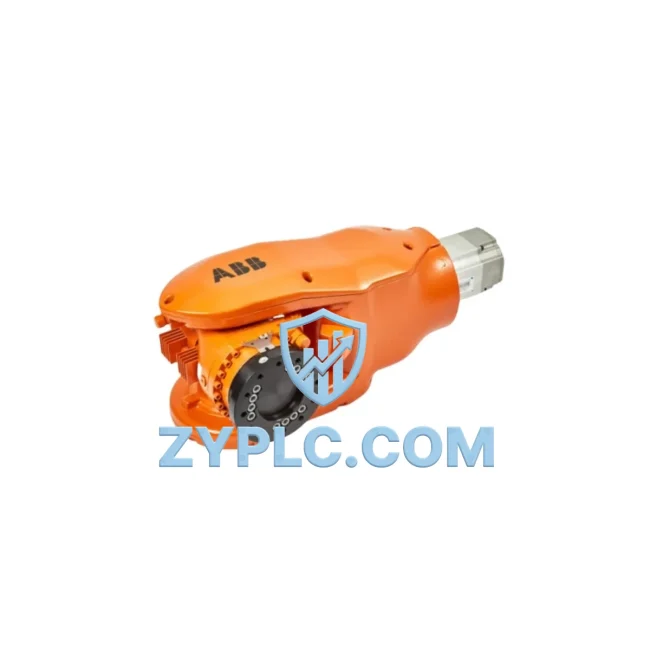

ABB 3HAC043566-003 Industrial Robot Wrist Unit for IRB6700 Systems

ABB 3HAC043566-003 Industrial Robot Wrist Unit: Precision Data Link for IRB6700 Smart Factory Systems

The ABB 3HAC043566-003 Robot Wrist Unit — also cross-referenced as 3HAC043566-005 and 3HAC048315-001 — is a precision mechanical and electrical interface component engineered for the ABB IRB6700 series industrial robot platform. In modern smart factory environments, the wrist unit is far more than a mechanical joint: it serves as the terminal node of the robot’s internal data and power distribution network, bridging the forearm harness, axis 4/5/6 servo drives, and end-of-arm tooling (EOAT) into a unified, real-time communication chain managed by the ABB IRC5 robot controller.

From signal acquisition at the wrist-mounted torque sensors and resolver feedback units, through the internal DSQC servo drive boards, and up to the IRC5 main computer via EtherNet/IP or PROFINET fieldbus, the 3HAC043566-003 ensures zero-latency mechanical and electrical continuity. Any degradation in the wrist unit — whether from bearing wear, harness fatigue, or encoder signal loss — directly disrupts the closed-loop servo control chain, triggering axis fault alarms in the IRC5 and halting production. Replacing this unit with a verified OEM-grade component restores full data integrity across the robot’s motion control network.

Network Communication Table

Connected Automation Data Flow

Understanding the 3HAC043566-003’s role requires mapping the full data flow of an IRB6700 robot cell. At the field level, the ABB IRC5 controller issues motion commands via its internal DSQC663 drive unit and DSQC668 axis computer, transmitting real-time position, velocity, and torque setpoints down the robot arm through the internal harness assembly (3HAC043566-005). The wrist unit receives these signals at axes 4, 5, and 6, where the resolver feedback from each wrist motor is routed back through the 3HAC048315-001 signal harness to the IRC5 for closed-loop position verification.

At the cell network level, the IRC5 communicates upstream with the plant SCADA system — such as Wonderware, Ignition, or Siemens WinCC — via OPC-UA or PROFINET, delivering real-time cycle data, axis load monitoring, and predictive maintenance signals. The ABB FlexPendant (TPU) HMI provides local operator visibility into wrist axis status, while the ABB RobotStudio offline programming environment allows engineers to simulate wrist motion profiles before deployment. For multi-robot cells, the IRC5 integrates with ABB MultiMove coordination software, where wrist unit integrity across all robots is monitored centrally.

In welding or material handling applications, the wrist unit interfaces directly with EOAT communication modules — such as Schunk or Zimmer gripper controllers — via DeviceNet or digital I/O, with status signals aggregated by the IRC5 and forwarded to the plant MES. Remote I/O expansion via ABB ACSM1 drive modules or third-party Beckhoff EtherCAT terminals further extends the data acquisition reach of the robot cell, enabling full production line transparency from a single SCADA dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in robot-intensive manufacturing is data isolation at the wrist level. When the ABB 3HAC043566-003 wrist unit degrades, the first symptom is typically intermittent axis 4/5/6 position errors — small deviations that the IRC5 logs as non-fatal warnings before escalating to hard faults. These faults break the data continuity between the robot controller and the SCADA system: cycle time data becomes unreliable, OEE calculations drift, and predictive maintenance algorithms lose their baseline.

By replacing the wrist unit with a verified 3HAC043566-003 OEM component, the full servo feedback chain is restored. Resolver signals return to specification, the IRC5 resumes accurate axis position reporting, and SCADA dashboards recover real-time robot status visibility. For multi-line facilities running several IRB6700 units, maintaining a spare 3HAC043566-003 in inventory is a standard practice to minimize mean time to repair (MTTR) and protect production line transparency.

Protocol unification is equally important: the IRC5’s built-in PROFINET and EtherNet/IP support ensures that once the wrist unit is restored, the robot re-integrates seamlessly into the plant network without reconfiguration. Remote diagnostics via ABB Ability™ Connected Services can then resume continuous health monitoring of the wrist axes, enabling proactive maintenance scheduling before the next fault occurs. System expansion — adding new robot cells or upgrading to IRB6700-300 variants — is also simplified when all wrist units are standardized on verified OEM components, ensuring consistent network behavior across the entire robot fleet.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB IRB6700 system support when using the 3HAC043566-003 wrist unit?
The IRB6700 with IRC5 controller supports EtherNet/IP, PROFINET, DeviceNet, and Modbus TCP via optional fieldbus adapter modules. The wrist unit itself is a mechanical and electrical interface component; protocol selection is configured at the IRC5 controller level. All protocols are fully compatible with the 3HAC043566-003 wrist unit without modification.

Q2: Will replacing the wrist unit affect network stability or cause communication interruptions in my robot cell?
A properly installed 3HAC043566-003 restores full servo feedback continuity, which directly improves network stability by eliminating the axis fault alarms that cause IRC5 communication timeouts. We recommend performing a full axis calibration (mastering) after installation to ensure resolver feedback is within specification before resuming SCADA-connected production.

Q3: Is the 3HAC043566-003 compatible with IRB6700 system expansion and multi-robot configurations?
Yes. The 3HAC043566-003 is the standard OEM wrist unit for all IRB6700 variants, making it fully compatible with ABB MultiMove multi-robot coordination and IRC5 system expansion. Standardizing on this part number across your robot fleet ensures consistent axis performance and simplifies spare parts management for large-scale smart factory deployments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every ABB 3HAC043566-003 unit supplied by ZYPLC undergoes pre-shipment functional inspection covering mechanical integrity, harness connector condition, and dimensional verification against ABB OEM specifications. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped via DHL or FedEx with full tracking, and our team provides post-installation technical support to ensure successful integration into your IRC5 robot system.
