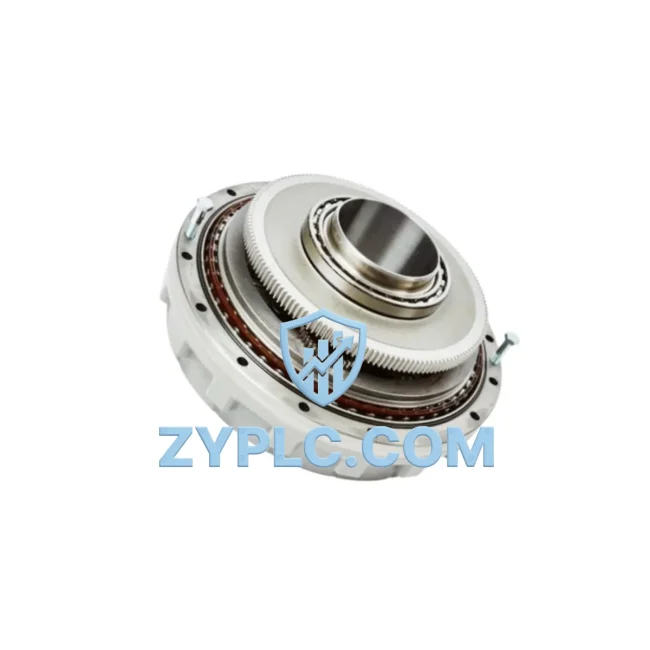

ABB 3HAC048318-001 Reduction Gear for IRB 6700 Series

ABB 3HAC048318-001 Reduction Gear: Precision Motion Control for IRB 6700 Robotic Systems

The ABB 3HAC048318-001 is a high-precision reduction gear engineered specifically for the ABB IRB 6700 series industrial robots — one of ABB’s most widely deployed heavy-duty robot platforms in automotive, metal fabrication, foundry, and general manufacturing environments. As a core mechanical transmission component, this reduction gear directly governs the torque output, positional accuracy, and repeatability of the robot’s axis movement, making it a mission-critical part in any high-cycle production line.

At ZYPLC, we maintain ready stock of the 3HAC048318-001 to support urgent maintenance, scheduled overhaul, and new system integration projects. Every unit ships with a 12-month warranty and passes pre-shipment functional inspection to ensure it meets ABB OEM specifications before leaving our facility.

Network Communication Table

Connected Automation Data Flow

In a modern smart factory, the ABB 3HAC048318-001 reduction gear sits at the heart of the robot’s mechanical data chain. The ABB IRC5 controller sends motion commands via its internal servo drive bus to the axis motors; the reduction gear then converts high-speed motor rotation into the precise, high-torque output required for heavy payload handling — up to 150 kg in the IRB 6700’s standard configuration.

Position feedback from the ABB resolver or encoder unit mounted on the gearbox output shaft is continuously transmitted back to the IRC5’s motion processor, enabling closed-loop position control with sub-millimeter repeatability. This feedback loop is essential for coordinated multi-robot cells where the ABB IRB 6700 works alongside ABB IRB 4600 or ABB IRB 7600 units on shared conveyor or fixture lines.

At the network layer, the IRC5 controller connects to the plant’s PROFINET or EtherNet/IP backbone via an integrated fieldbus interface, allowing the ABB DSQC 688 communication board or equivalent gateway module to relay real-time axis torque, speed, and temperature data to the SCADA or MES platform. Operators monitoring the line through an ABB FlexPendant HMI or a third-party SCADA system can observe gearbox load trends, detect abnormal torque signatures, and schedule predictive maintenance before a mechanical failure causes unplanned downtime.

When the robot cell is integrated with ABB Ability™ Connected Services or an OPC UA edge gateway, the 3HAC048318-001’s operational data — including cumulative cycle count, peak torque events, and lubrication interval tracking — can be pushed to cloud analytics dashboards. This enables fleet-level comparison across multiple IRB 6700 units deployed in different production zones, supporting a data-driven maintenance strategy that reduces total cost of ownership.

For lines using ABB SafeMove2 safety software, the reduction gear’s mechanical integrity is also a monitored parameter: any deviation in axis speed or position beyond defined safe limits triggers an immediate safety stop via the IRC5’s safety controller, protecting both personnel and tooling from collision damage.

Solving Data Isolation in Industrial Robotic Sites

One of the most common challenges in aging robot installations is the disconnect between the robot’s mechanical health and the plant’s digital monitoring infrastructure. When a reduction gear like the 3HAC048318-001 begins to wear — exhibiting increased backlash, abnormal vibration, or rising operating temperature — this information often remains invisible to the broader production management system until a failure event occurs.

By pairing the ABB IRB 6700 with a properly configured IRC5 controller and an OPC UA or MQTT gateway, maintenance teams can break this data isolation. Real-time axis load data, servo current draw, and gearbox temperature readings become live data streams accessible from any SCADA terminal or mobile device on the plant network. Alarm thresholds can be configured so that a rising torque trend on Axis 1 — often the first indicator of reduction gear wear — triggers a maintenance work order automatically in the CMMS before the issue escalates.

For facilities managing multiple robot models across different production lines, standardizing on ABB’s IRC5 OmniCore platform or integrating legacy IRC5 systems through an ABB JOKAB Safety relay and fieldbus gateway ensures that all robot health data flows into a unified monitoring layer. This eliminates the data silos that typically exist between robot controllers, PLC systems, and enterprise MES platforms — giving production managers full transparency over robot uptime, maintenance cycles, and spare parts consumption.

ZYPLC supports this integration journey by supplying not only the 3HAC048318-001 reduction gear but also associated components such as ABB 3HAC026253-001 motor units, 3HAC043074-003 gearbox assemblies, and IRC5 controller spare boards — ensuring that your maintenance team can source all critical parts from a single, reliable supplier with verified stock and fast global shipping.

Industrial Connectivity FAQ

Q1: How does the 3HAC048318-001 reduction gear affect robot communication and positioning accuracy?
The reduction gear directly determines the mechanical precision of the robot’s axis output. Wear or backlash in the gearbox introduces positioning errors that the IRC5 controller’s encoder feedback cannot fully compensate, leading to path deviation in high-precision welding, assembly, or material handling tasks. Replacing a worn 3HAC048318-001 with an OEM-spec unit restores the robot’s rated repeatability of ±0.05 mm.

Q2: Is the 3HAC048318-001 compatible with all IRB 6700 variants and IRC5 controller generations?
The 3HAC048318-001 is designed for the ABB IRB 6700 series. Compatibility depends on the specific axis and robot variant (IRB 6700-150/3.2, 200/2.6, 235/2.65, 300/2.7, or 205/2.8). We recommend confirming your robot’s serial number and axis configuration with our technical team before ordering to ensure the correct gearbox specification is supplied.

Q3: What is the lead time and warranty coverage for the 3HAC048318-001?
ZYPLC maintains in-stock inventory of the 3HAC048318-001 for immediate dispatch. Standard lead time is 3–7 business days for international shipments. All units are covered by a 12-month warranty against manufacturing defects, with pre-shipment testing documentation provided upon request.

Q4: Can ZYPLC support system-level troubleshooting beyond the reduction gear itself?
Yes. Our technical team can assist with IRC5 controller fault code analysis, servo drive diagnostics, and fieldbus communication checks related to axis performance issues. We also supply complementary components including ABB motor units, encoder assemblies, and communication boards to support complete robot rehabilitation projects.
