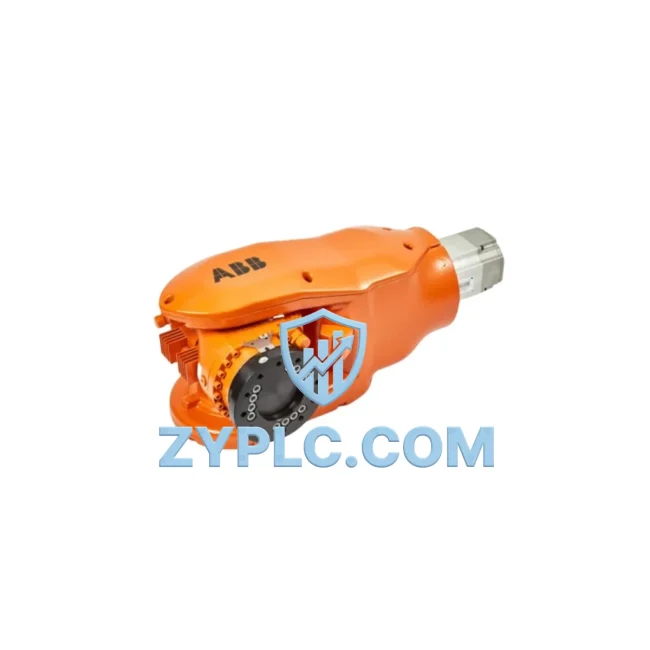

ABB 3HAC048333-001 System-Ready Wrist Module for IRB6700 Architecture

ABB 3HAC048333-001 System-Ready Wrist Module for IRB6700 Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB 3HAC048333-001 Process Wrist Module is a precision-engineered mechanical and electrical interface component designed specifically for the IRB6700 robot series. Within a fully integrated industrial automation architecture, this wrist module does not function as a standalone replacement part — it serves as a critical node in the kinematic chain that connects the robot’s upper arm assembly to the process tool or end-effector. Understanding its role within the broader control system hierarchy is essential for engineers responsible for system design, commissioning, and long-term maintenance planning.

In a layered automation architecture, the IRB6700 robot platform typically operates under the coordination of an ABB IRC5 controller cabinet, which houses the main computer module (DSQC1000 or DSQC1018), drive units, and I/O interface boards. The IRC5 controller manages motion trajectory, axis interpolation, and real-time feedback loops across all six robot axes. The 3HAC048333-001 wrist module sits at the mechanical terminus of this control chain — at axis 5 and axis 6 — where the controller’s torque commands are translated into precise angular displacement of the process tool. Any degradation in the wrist module’s mechanical integrity directly affects the accuracy of the TCP (Tool Center Point) and the repeatability of the entire robot cell.

From a signal flow perspective, the wrist module integrates with the robot’s internal cabling harness, which carries both power and resolver feedback signals from the axis 5 and axis 6 servo motors back to the IRC5 drive units. These resolver signals are processed by the axis computer board (DSQC668 or equivalent) to maintain closed-loop position control. When replacing the 3HAC048333-001, engineers must ensure that the internal cable assembly — including the process cable harness 3HAC045484-004 — is correctly routed and secured to prevent signal interference or mechanical wear during high-cycle operations.

At the I/O layer, the IRB6700 robot cell typically interfaces with a distributed I/O system via DeviceNet, EtherNet/IP, or PROFINET communication modules installed in the IRC5 cabinet. These I/O modules manage gripper actuation signals, tool change confirmation, and safety interlock feedback from the end-effector mounted to the wrist. The mechanical condition of the 3HAC048333-001 directly influences the reliability of these I/O signals, as any play or misalignment in the wrist assembly can cause intermittent contact issues in the tool flange electrical interface.

For system architects designing redundant or high-availability robot cells, the 3HAC048333-001 should be treated as a scheduled maintenance component with a defined replacement interval based on cycle count and payload profile. Maintaining a spare 3HAC048333-001 in the facility’s MRO inventory — alongside critical spares such as the IRB6700 upper arm assembly 3HAC043543-004, the axis 5/6 motor unit, and the SMB (Serial Measurement Board) 3HAC046686-001 — ensures that unplanned downtime can be minimized to a single shift rather than extending into multi-day procurement delays.

In multi-robot production lines, such as automotive body-in-white welding cells or large-format material handling systems, the IRB6700 often operates in coordinated motion with other ABB robots on a shared IRC5 MultiMove controller. In these architectures, the mechanical synchronization between robots depends on the consistent performance of each robot’s wrist assembly. A worn or misaligned 3HAC048333-001 in one robot can introduce path deviation errors that propagate through the coordinated motion program, affecting weld quality or part placement accuracy across the entire cell.

From a network and communication layer perspective, the IRC5 controller connects to the plant-level SCADA or MES system via an OPC-UA server or a Fieldbus adapter module. Maintenance events triggered by wrist module replacement — such as TCP recalibration routines and axis mastering procedures — should be logged in the plant’s maintenance management system to maintain traceability and support predictive maintenance scheduling. The ABB RobotStudio offline programming environment supports virtual commissioning of the IRB6700 after wrist module replacement, allowing engineers to verify path accuracy before resuming production.

All 3HAC048333-001 units supplied by ZYPLC are covered by a 12-Month Warranty and have undergone functional verification prior to shipment. Each unit is traceable to its manufacturing batch and is supplied with documentation supporting Contextual Integration into existing IRB6700 robot systems without requiring controller software modifications.

Architecture Specification Table

Coordinated Control System Design

The 3HAC048333-001 wrist module achieves its full performance potential only when integrated within a correctly specified IRB6700 system architecture. The following components represent the primary coordination layer for a complete robot cell build or major overhaul:

The ABB IRC5 controller (with DSQC1000 main computer) provides the motion planning and axis control foundation. The drive unit DSQC663 manages servo power delivery to the wrist axis motors. The SMB unit 3HAC046686-001 handles serial measurement and resolver decoding for axes 5 and 6. The process cable harness 3HAC045484-004 routes power and signal through the upper arm to the wrist assembly. The upper arm assembly 3HAC043543-004 provides the structural interface between the forearm and the wrist module. For tool-side integration, the ABB tool flange adapter and pneumatic rotary union connect the wrist to the end-effector. At the I/O layer, ABB DSQC652 digital I/O boards manage gripper and tool change signals. For multi-robot cells, the IRC5 MultiMove controller coordinates synchronized motion across up to four IRB6700 robots sharing a common work envelope. The FlexPendant TP unit provides on-site jogging and mastering capability during wrist module replacement and TCP recalibration.

Application in Layered Automation Systems

The ABB 3HAC048333-001 wrist module is deployed across a wide range of heavy industrial automation environments. In automotive manufacturing, IRB6700 robots equipped with this wrist module perform spot welding, arc welding, and body panel handling in body-in-white production lines, where TCP repeatability of ±0.05 mm is required across multi-shift operations. In metal fabrication and foundry applications, the IP67-rated wrist assembly withstands exposure to metal chips, coolant mist, and thermal cycling. In petrochemical and process plant environments, IRB6700 robots handle heavy valve assemblies and pipe sections in hazardous area installations, where the wrist module’s sealed construction prevents ingress of process fluids. In logistics and palletizing systems, the high payload capacity of the IRB6700 combined with the structural rigidity of the 3HAC048333-001 wrist supports continuous high-speed layer palletizing of bagged or boxed goods. In mining and mineral processing facilities, the robot platform operates in dusty, high-vibration environments where the wrist module’s robust bearing design ensures long service intervals between planned maintenance shutdowns.

Architecture Engineering FAQ

Q1: Is the 3HAC048333-001 compatible with all IRB6700 payload and reach variants?
The 3HAC048333-001 wrist module is designed for the IRB6700 platform and is compatible across the standard payload range (150 kg to 235 kg) and reach variants (2.65 m to 3.20 m). Engineers should verify the robot’s serial number and variant designation against ABB’s spare parts catalog to confirm fitment, as certain high-IP or clean-room variants may use a modified wrist assembly. ZYPLC’s technical team can assist with variant confirmation prior to order placement.

Q2: What recalibration procedures are required after replacing the wrist module?
After installing the 3HAC048333-001, the robot must undergo axis mastering for axes 5 and 6 using the calibration marks on the robot arm and the FlexPendant mastering routine. TCP recalibration is required for all tool programs. If the robot is part of a MultiMove coordinated cell, the base frame and workobject calibration should also be verified. ABB RobotStudio can be used for offline path verification before resuming production. ZYPLC recommends scheduling a 4-hour commissioning window for a single-robot replacement.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by ZYPLC’s technical team via email and phone. For long-term maintenance planning, ZYPLC recommends establishing a critical spares inventory that includes the 3HAC048333-001 alongside the process cable harness, SMB unit, and drive modules. ZYPLC maintains stock of IRB6700 wrist modules and associated components to support rapid dispatch for unplanned maintenance events.
