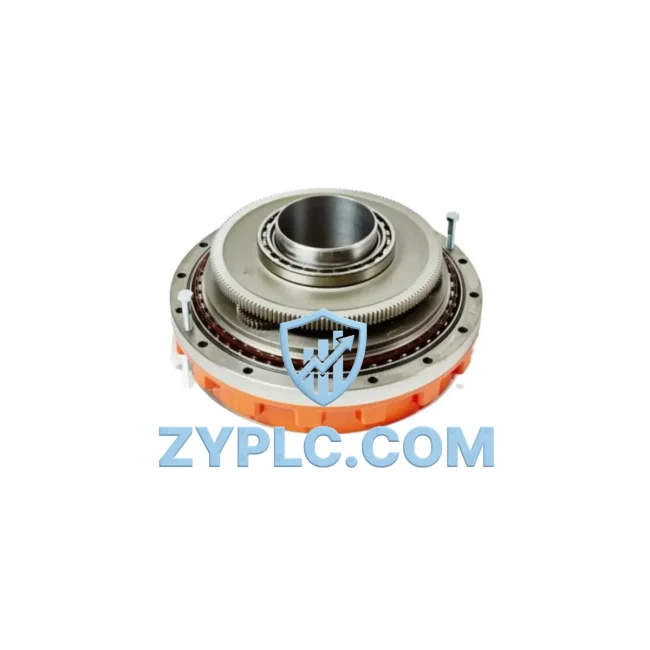

ABB 3HAC058960-002 IRB6640 4-Axis Motor Industrial Interface

ABB 3HAC058960-002 IRB6640 4-Axis Motor: Industrial Data Link and Smart Factory Connectivity

The ABB 3HAC058960-002 is a precision 4-axis servo motor with integrated pinion, purpose-built for the ABB IRB6640 industrial robot series — one of ABB’s most widely deployed heavy-payload robotic platforms in automotive, metal fabrication, foundry, and general manufacturing environments. As a core motion control component, this servo motor sits at the intersection of mechanical actuation and digital intelligence, enabling seamless data exchange between the robot’s joint-level hardware and the broader automation network.

In a modern smart factory, the IRB6640 robot does not operate in isolation. Its motion axes are continuously monitored and commanded through the ABB IRC5 Robot Controller, which processes real-time feedback from each servo axis — including the 4th axis driven by the 3HAC058960-002 — and communicates upstream to SCADA platforms, MES systems, and HMI terminals. The servo motor’s encoder signals are transmitted through the robot’s internal serial measurement board (SMB), typically the ABB 3HAC031670-001, which converts raw encoder pulses into structured position and velocity data readable by the IRC5 drive system.

This data flow is foundational to industrial connectivity. From the 3HAC058960-002 motor, position feedback travels through the SMB to the IRC5’s axis computer, then via DeviceNet, PROFIBUS-DP, or EtherNet/IP fieldbus interfaces — supported through ABB’s DSQC fieldbus adapter modules such as the ABB DSQC 652 or DSQC 679 — to the plant-level control network. This architecture allows the robot’s joint data to be aggregated alongside signals from PLCs, remote I/O stations, and other field devices into a unified SCADA dashboard.

Network Communication Table

Connected Automation Data Flow

Understanding how the ABB 3HAC058960-002 fits into a connected automation architecture requires tracing the full data path from mechanical motion to enterprise visibility. At the field level, the servo motor generates continuous encoder feedback as the IRB6640’s 4th axis rotates. This signal is captured by the ABB Serial Measurement Board (3HAC031670-001) and relayed to the IRC5 axis computer, where it is processed by the drive unit — typically the ABB DSQC 661 Drive Unit — to execute closed-loop position control with millisecond-level precision.

The IRC5 controller then exposes this motion data to the plant network through its fieldbus interface. In facilities running PROFIBUS-DP architectures, the ABB DSQC 652 DeviceNet/PROFIBUS Adapter bridges the robot controller to the main PLC backbone — commonly a Siemens S7-400 or Allen-Bradley ControlLogix — where robot status, axis torque values, cycle counts, and fault codes are integrated into the plant-wide control logic. In EtherNet/IP environments, the IRC5’s built-in Ethernet port connects directly to managed industrial switches, feeding data to SCADA servers running platforms such as Ignition by Inductive Automation or Siemens WinCC.

At the HMI layer, operators interact with the robot’s live status through the ABB FlexPendant (3HAC028357-001), which displays axis positions, program states, and alarm histories in real time. Simultaneously, remote engineers can access the same data through ABB’s RobotStudio software or via OPC-UA gateways that publish robot telemetry to cloud-based MES and ERP platforms. Variable frequency drives (VFDs) on adjacent conveyor lines — such as the ABB ACS880 series — are synchronized with the IRB6640’s cycle timing through the same EtherNet/IP network, ensuring coordinated material flow without manual intervention.

For facilities deploying edge computing, an ABB Edge Controller or third-party edge gateway (e.g., Moxa UC-8100 series) can aggregate data from the IRC5, nearby remote I/O modules, and sensor networks, performing local analytics before forwarding summarized KPIs to cloud dashboards. This layered architecture — from the 3HAC058960-002 motor’s encoder pulse to the enterprise dashboard — exemplifies the connected factory data chain that modern industrial operations depend on.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: robot controllers, PLCs, drives, and sensors each generating valuable operational data that never reaches the systems where it could drive decisions. The ABB 3HAC058960-002, as a genuine OEM replacement motor for the IRB6640, directly addresses this challenge by restoring full encoder communication integrity after motor failure — a failure mode that frequently causes the IRC5 to lose axis feedback, triggering fault codes such as 50024 (Motor Current Error) or 50296 (Axis Computer Error) and effectively silencing that robot’s contribution to the production data stream.

When a counterfeit or incompatible motor is installed, encoder signal quality degrades, causing intermittent communication errors between the SMB and the IRC5 axis computer. This not only disrupts closed-loop control but also corrupts the position data being logged by SCADA systems, creating gaps in production records and making root-cause analysis of quality defects nearly impossible. By specifying the genuine 3HAC058960-002, maintenance engineers ensure that the robot’s data contribution to the factory network remains continuous, accurate, and trustworthy.

Beyond fault recovery, the 3HAC058960-002 supports production line transparency by enabling the IRC5 to report accurate cycle times, axis wear indicators, and predictive maintenance signals to connected monitoring platforms. In multi-robot cells where several IRB6640 units collaborate on a single assembly task, consistent motor performance across all axes is essential for maintaining the synchronization logic programmed into the PLC. A single degraded motor can introduce timing drift that cascades into quality rejects, unplanned downtime, and SCADA alarm floods — all of which are eliminated when genuine OEM components maintain the integrity of the motion control chain.

System expansion is equally supported: as production lines scale and new IRB6640 robots are added to the cell, the standardized 3HAC058960-002 motor specification ensures that spare parts inventory remains unified, maintenance procedures stay consistent, and the SCADA system’s robot monitoring templates require no modification. This standardization reduces the total cost of ownership across the robot fleet and simplifies the work of automation engineers managing multi-site deployments.

Industrial Connectivity FAQ

Q1: Does the ABB 3HAC058960-002 support real-time communication with SCADA systems?
Yes. The 3HAC058960-002 provides encoder feedback to the IRC5 controller, which communicates with SCADA platforms via PROFIBUS-DP, EtherNet/IP, or DeviceNet fieldbus interfaces. Real-time axis data — including position, speed, and torque — is available to SCADA systems with cycle times as low as 4ms through the IRC5’s fieldbus adapter modules.

Q2: Is this motor compatible with all IRB6640 variants and IRC5 controller generations?
The 3HAC058960-002 is designed for the ABB IRB6640 series Axis 4 position and is compatible with IRC5 Single Cabinet and Dual Cabinet controllers across all standard IRB6640 payload variants (130kg, 185kg, 235kg). Compatibility with specific controller software versions should be confirmed against the robot’s product manual (3HAC028357-001 series documentation).

Q3: How does a failed servo motor affect network stability and data continuity?
A failed or degraded 3HAC058960-002 motor causes the IRC5 to generate axis fault alarms, which halt robot program execution and interrupt the robot’s data contribution to the plant network. In SCADA-monitored cells, this appears as a loss of robot telemetry, triggering alarm cascades. Replacing with a genuine OEM motor restores full encoder signal integrity and re-establishes continuous data flow within minutes of recommissioning.

Q4: What quality assurance and warranty coverage is provided?
Every ABB 3HAC058960-002 supplied by ZYPLC undergoes pre-shipment functional testing, including encoder signal verification and mechanical inspection of the integrated pinion. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Expedited global shipping via DHL and FedEx ensures rapid delivery to minimize production downtime.
