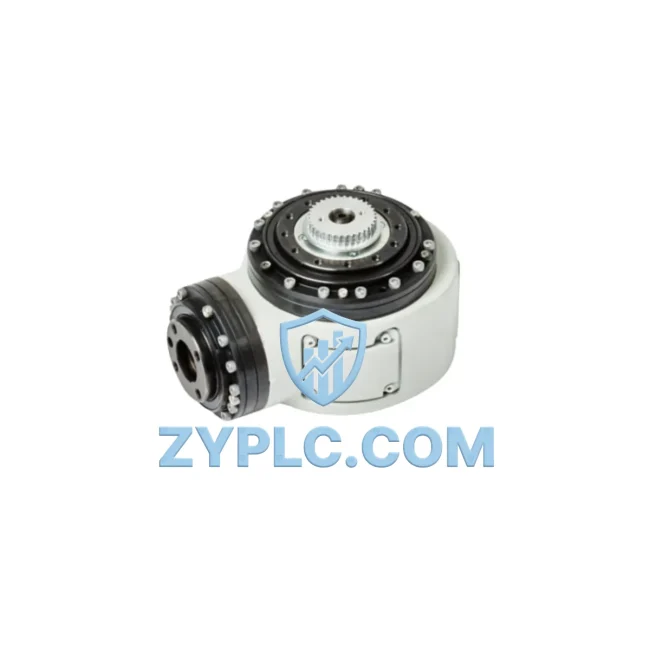

ABB 3HAC059479-001 System-Ready Drive Unit for IRB4600 Architecture

ABB 3HAC059479-001 System-Ready Drive Unit for IRB4600 Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB 3HAC059479-001 is a precision-engineered drive unit module designed to operate as a core motion control component within the IRB4600 robot system architecture. Rather than functioning as a standalone replacement part, this drive unit is best understood in the context of the complete layered automation system it supports — from the IRC5 controller cabinet at the control layer, through the axis computer and drive system at the motion layer, down to the servo motors and mechanical arm at the execution layer. Its role in maintaining signal integrity, power distribution consistency, and motion synchronization makes it an indispensable element in any IRB4600-based industrial cell.

In modern robotic automation, the reliability of a drive unit directly determines the stability of the entire motion chain. The 3HAC059479-001 interfaces with the ABB IRC5 single-cabinet or dual-cabinet controller, receiving coordinated motion commands from the main computer unit (MCU) and translating them into precise current waveforms delivered to the servo axis motors. This tight integration with the IRC5 controller platform — including its DSQC series drive boards and axis computer modules — ensures that torque ripple, velocity overshoot, and position error remain within the tight tolerances demanded by automotive, foundry, and general manufacturing applications.

Within the IRB4600 system, the 3HAC059479-001 works in close coordination with the 3HAC044361-001 axis computer board, which manages real-time interpolation and feedback loop closure for all six robot axes. The drive unit receives PWM signals from this axis computer and amplifies them to the power levels required by the IRB4600’s AC servo motors. Simultaneously, the 3HAC059696-001 power supply unit provides the regulated DC bus voltage that the drive unit depends on for consistent output. Any instability in this power supply chain — whether from voltage sag, ripple, or transient spikes — will manifest as motion irregularities at the tool center point, making the quality of the upstream power architecture directly relevant to drive unit performance.

At the network and communication layer, the IRC5 controller’s DSQC1006 or DSQC679 teach pendant interface and the DeviceNet or EtherNet/IP fieldbus modules coordinate with the drive system to enable real-time program execution, safety monitoring, and remote diagnostics. The 3HAC059479-001 is fully compatible with ABB’s RobotWare software environment, allowing engineers to perform drive parameter tuning, motor calibration, and fault logging through the FlexPendant or RobotStudio offline programming platform without requiring hardware modifications.

For applications requiring high availability, the IRB4600 architecture supports hot-standby redundancy configurations where a secondary IRC5 controller can assume control in the event of a primary controller fault. In such configurations, the drive unit must be matched precisely to the redundant controller’s firmware version and axis configuration file to ensure seamless switchover. The 3HAC059479-001 is validated for use in these redundancy architectures, and its compatibility with ABB’s SafeMove2 safety module further extends its applicability to collaborative and safety-rated automation zones.

From a maintenance and lifecycle perspective, the 3HAC059479-001 is designed for modular replacement within the IRC5 cabinet. Field engineers can swap the drive unit without disturbing the axis computer, power supply, or wiring harness, significantly reducing mean time to repair (MTTR) in production environments where downtime carries high economic cost. This modularity also supports planned preventive maintenance strategies, where drive units are rotated on a fixed schedule based on operating hours logged by the IRC5 system manager.

Inventory availability and supply chain continuity are critical considerations for facilities operating multiple IRB4600 cells. ZYPLC maintains stock of the 3HAC059479-001 alongside complementary components including the 3HAC044361-001 axis computer, 3HAC059696-001 power supply, and associated DSQC series interface boards, enabling single-source procurement for complete drive system rebuilds or scheduled overhauls. All units supplied by ZYPLC are covered by a 12-Month Warranty and undergo functional verification prior to shipment.

Architecture Specification Table

Coordinated Control System Design

The 3HAC059479-001 drive unit does not operate in isolation — its performance is a direct function of the quality and compatibility of every other module in the IRC5 control cabinet. At the control layer, the IRC5 main computer (DSQC1000 or equivalent MCU board) executes the RAPID program and dispatches motion commands to the axis computer. The 3HAC044361-001 axis computer then performs real-time kinematic calculations and generates the PWM drive signals consumed by the 3HAC059479-001.

Power integrity is managed by the 3HAC059696-001 power supply unit, which must deliver a stable DC bus to the drive unit under all load conditions, including peak torque demands during high-speed path segments. The DSQC663 or DSQC662 I/O modules handle digital and analog signal exchange with external PLCs, safety relays, and end-of-arm tooling, while the DSQC679 FlexPendant interface provides the operator layer for jog, program execution, and fault acknowledgment.

In multi-robot cells, the IRC5 MultiMove option allows a single controller to coordinate up to four IRB4600 robots simultaneously, with each robot’s drive system — including its 3HAC059479-001 — synchronized through a shared motion planner. This architecture demands that all drive units in the cell share identical firmware revisions and calibration data, a requirement that ZYPLC’s pre-shipment verification process is specifically designed to support.

For facilities integrating the IRB4600 with external conveyor systems or vision-guided assembly stations, the drive unit’s response latency and torque bandwidth are critical parameters. The 3HAC059479-001 is rated to support the full dynamic range of the IRB4600’s payload and reach envelope, ensuring that path accuracy is maintained even during high-acceleration segments typical of press-tending or machine-tending applications.

Application in Layered Automation Systems

The IRB4600 with its 3HAC059479-001 drive unit is deployed across a wide range of industrial sectors. In automotive body-in-white manufacturing, the robot handles spot welding, arc welding, and material handling tasks where path repeatability of ±0.06 mm is required over multi-shift production schedules. The drive unit’s thermal management and overload protection features are essential in these high-duty-cycle environments.

In the power generation and electrical equipment sector, IRB4600 systems equipped with this drive unit perform transformer core stacking, busbar bending, and switchgear assembly tasks. The robot’s ability to maintain precise torque control during fastening operations — enabled by the drive unit’s closed-loop current regulation — is critical to assembly quality in these applications.

Petrochemical and process industry facilities use the IRB4600 for drum handling, valve assembly, and inspection tasks in hazardous zones. In these environments, the IRC5 controller’s safety architecture — including the SafeMove2 module interfacing with the 3HAC059479-001 — provides the speed and position monitoring required for safe human-robot collaboration.

Water treatment and municipal infrastructure projects increasingly deploy IRB4600 systems for pipe welding, pump assembly, and sensor installation tasks. The drive unit’s resistance to vibration and its compatibility with the IRC5’s remote monitoring capabilities allow maintenance teams to track drive health metrics without requiring on-site visits, reducing operational costs in geographically distributed facilities.

In mining and metallurgy, the IRB4600 handles ladle pouring, sample extraction, and ore sorting tasks in high-temperature, high-dust environments. The 3HAC059479-001’s robust design and the IRC5 cabinet’s IP54 protection rating ensure reliable operation in these demanding conditions. Packaging and palletizing lines in food and beverage manufacturing also rely on this drive unit for high-speed pick-and-place cycles, where consistent acceleration profiles directly impact throughput and product integrity.

Architecture Engineering FAQ

Q1: Is the 3HAC059479-001 compatible with all IRC5 controller firmware versions used with the IRB4600?
The 3HAC059479-001 is designed for use with the ABB IRC5 controller platform as deployed with the IRB4600 series. Compatibility with specific RobotWare firmware versions should be verified against the robot’s system parameters file (system.xml) before installation. ZYPLC recommends confirming the controller’s RobotWare version and requesting a matched drive unit if your system runs a non-standard firmware build. Our technical team can assist with version verification prior to shipment, and all units are covered by a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: Can the 3HAC059479-001 be installed without recalibrating the IRB4600 robot?
Drive unit replacement on the IRB4600 typically does not require full robot calibration, as the kinematic calibration data is stored in the axis computer and SMB (Serial Measurement Board) rather than in the drive unit itself. However, engineers should perform a motor calibration verification (fine calibration check) after drive unit replacement to confirm that resolver offsets and commutation angles are correctly recognized by the new unit. ZYPLC provides installation guidance documentation with each shipment to support field engineers through this process.

Q3: What is covered under the 12-Month Warranty, and how does ZYPLC handle warranty claims for the 3HAC059479-001?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions consistent with ABB’s published environmental and electrical specifications for the IRC5 platform. Warranty claims are initiated by contacting ZYPLC at [email protected] or +86 19859288691 with the unit’s serial number and a description of the fault. ZYPLC will arrange return logistics and provide a replacement or repaired unit within the agreed service timeline. Damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental envelope is not covered under the standard warranty.
