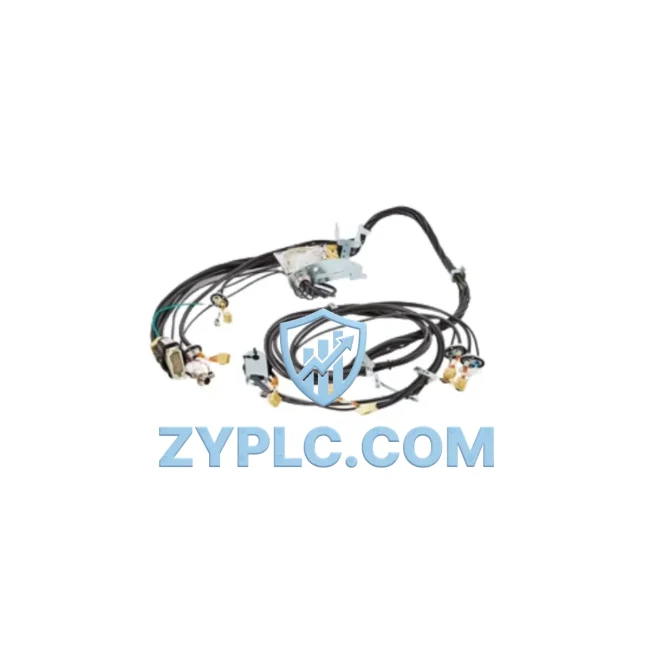

ABB 3HAC069655-001 System-Ready Cable Harness for IRB6601 Architecture

ABB 3HAC069655-001 System-Ready Cable Harness for IRB6601 Architecture: Control System Integration and Upstream-Downstream Coordination

In modern industrial robotic automation, the integrity of a control system depends not only on the computational power of its controller but equally on the reliability of every signal pathway connecting the controller to its actuators, sensors, and peripheral modules. The ABB 3HAC069655-001 Cable Harness is a factory-engineered interconnect assembly designed specifically for the IRB6601 robot series, serving as a critical signal and power routing component within the ABB IRC5 control architecture. This harness is not a generic cable assembly — it is a system-ready component that ensures Contextual Integration across the robot’s internal wiring topology, maintaining signal fidelity from the controller cabinet to the manipulator arm across all six axes of motion.

When deploying or maintaining an IRB6601 robot cell, the cable harness occupies a foundational role in the layered automation hierarchy. From the control layer, where the IRC5 Single Cabinet Controller or IRC5 Compact Controller issues motion commands via the RAPID programming environment, signals must travel through precisely routed, shielded pathways to reach the servo drive modules and axis computer boards. The 3HAC069655-001 harness provides exactly this pathway — a pre-terminated, OEM-specified assembly that eliminates field-wiring variability and ensures that every connector, pin assignment, and shielding specification matches ABB’s original design intent.

Architecture Specification Table

Coordinated Control System Design

The ABB 3HAC069655-001 does not function in isolation. Its value is realized only when understood within the complete IRB6601 control system architecture, where it coordinates signal flow across multiple hardware layers. At the controller level, the IRC5 main computer board (3HAC026254-001) processes motion trajectories and issues torque commands to the drive system. These commands are relayed through the axis computer (3HAC025338-001), which interfaces directly with the cable harness to distribute signals to each of the six servo motors mounted along the robot’s kinematic chain.

The drive module assembly — typically the ABB DSQC663 or DSQC1000 drive unit — receives power and feedback signals through the harness, enabling closed-loop position control at each joint. The resolver or encoder feedback signals from the motor units (such as those paired with the 3HAC022544-008 and 3HAC022544-001 motor assemblies referenced in the IRB6601 configuration) return through the same harness bundle, ensuring that the axis computer receives accurate position data for real-time trajectory correction.

At the power layer, the ABB DSQC609 power supply unit or the rectifier module within the IRC5 cabinet provides regulated DC bus voltage to the drive units, while the 3HAC069655-001 harness routes the lower-voltage signal lines separately to prevent interference. This separation of power and signal conductors within the harness design is a deliberate architectural choice that supports EMI immunity — a critical requirement in environments where variable frequency drives, welding equipment, or high-current switching loads operate in proximity to the robot cell.

For system integrators working with multi-robot cells or coordinated motion applications, the harness also supports the IRC5 MultiMove configuration, where multiple IRB6601 units operate under a single controller. In this topology, the signal integrity provided by OEM-specified harnesses like the 3HAC069655-001 becomes even more critical, as timing errors or signal degradation in any single axis can propagate across the coordinated motion sequence. The use of genuine ABB harness assemblies — rather than aftermarket substitutes — ensures that the impedance characteristics, connector contact resistance, and shielding continuity remain within the tolerances required for deterministic motion control.

At the human-machine interface layer, operators monitoring the IRB6601 cell through the ABB FlexPendant (3HAC028357-001) or through an external SCADA system connected via the IRC5 Ethernet service port rely on accurate axis feedback data — data whose integrity begins at the harness level. A degraded or incorrectly specified cable harness introduces latency, noise, or intermittent faults that manifest as axis errors, reduced path accuracy, or unplanned safety stops, all of which reduce overall equipment effectiveness (OEE) in production environments.

Application in Layered Automation Systems

The IRB6601 robot series, and by extension the 3HAC069655-001 cable harness, finds application across a broad range of industrial sectors where high-payload, high-reach robotic automation is required.

In automotive manufacturing, IRB6601 robots are deployed for spot welding, material handling, and press tending operations. The cable harness must withstand the thermal cycling, vibration, and electromagnetic interference inherent in these environments. Preventive replacement of the 3HAC069655-001 during scheduled maintenance shutdowns — rather than reactive replacement after failure — is a best practice that reduces unplanned downtime in high-volume production lines where robot availability directly impacts throughput.

In metal fabrication and heavy industry, where IRB6601 units handle large structural components, the mechanical stress on internal cable assemblies is significant. The OEM harness design accounts for the full range of motion across all six axes, with cable routing that minimizes bending radius violations and connector stress at the wrist and upper arm joints. Facilities operating multiple IRB6601 units benefit from maintaining a stock of 3HAC069655-001 harnesses as critical spare parts, reducing mean time to repair (MTTR) when a harness failure occurs.

In foundry and casting applications, where ambient temperatures and particulate contamination levels are elevated, the shielded construction of the 3HAC069655-001 provides additional protection against signal degradation. Combined with the IRC5 controller’s built-in thermal management and the robot’s IP67-rated wrist option, the harness contributes to the overall environmental robustness of the system.

For process industries including chemical, petrochemical, and water treatment facilities that deploy robotic systems for sampling, valve actuation, or hazardous material handling, the reliability of every internal component — including the cable harness — is a safety-critical consideration. In these applications, the 12-Month Warranty provided with the 3HAC069655-001 offers procurement teams a documented quality assurance baseline that supports compliance with maintenance management systems and asset integrity programs.

Architecture Engineering FAQ

Q1: Is the ABB 3HAC069655-001 compatible with all IRC5 controller variants used with the IRB6601?
The 3HAC069655-001 is designed for the IRB6601 robot series and is compatible with the standard IRC5 Single Cabinet Controller configuration. Compatibility with IRC5 Compact or IRC5 Panel Mounted Controller variants should be verified against the specific robot serial number and controller software version (RobotWare). ABB’s robot configuration documentation, accessible via the IRC5 service information system, provides the definitive harness-to-controller mapping for each IRB6601 build variant. When in doubt, provide the robot serial number to confirm the correct harness part number before ordering.

Q2: What are the recommended installation and commissioning procedures when replacing the 3HAC069655-001 harness?
Harness replacement on the IRB6601 requires the robot to be placed in a mechanically safe position with all axes at their calibration marks, and the IRC5 controller powered down and locked out per LOTO procedures. The replacement procedure involves disconnecting the harness at both the controller cabinet interface and the robot base connector, routing the new harness through the designated cable channels in the lower arm and base casting, and reconnecting all keyed connectors in sequence. Following installation, a full axis calibration using the ABB CalibWare tool or the FlexPendant calibration routine is mandatory to restore accurate position references. The 12-Month Warranty on the 3HAC069655-001 covers manufacturing defects but does not extend to damage caused by incorrect installation procedures.

Q3: How does maintaining OEM harness specifications support long-term system reliability and warranty compliance?
Using the genuine ABB 3HAC069655-001 harness ensures that all electrical parameters — conductor cross-section, insulation rating, shielding coverage, and connector contact specifications — remain within the tolerances validated by ABB’s system engineering team for the IRB6601 platform. Aftermarket harness substitutes may introduce impedance mismatches, inadequate shielding, or non-compliant connector materials that degrade signal quality over time, leading to intermittent axis faults, increased servo tuning drift, and premature failure of connected components such as the axis computer or resolver interface boards. Maintaining OEM specifications also ensures that the robot system remains eligible for ABB service support and that maintenance records align with the asset’s original design baseline — a requirement in regulated industries and ISO-certified manufacturing environments.
