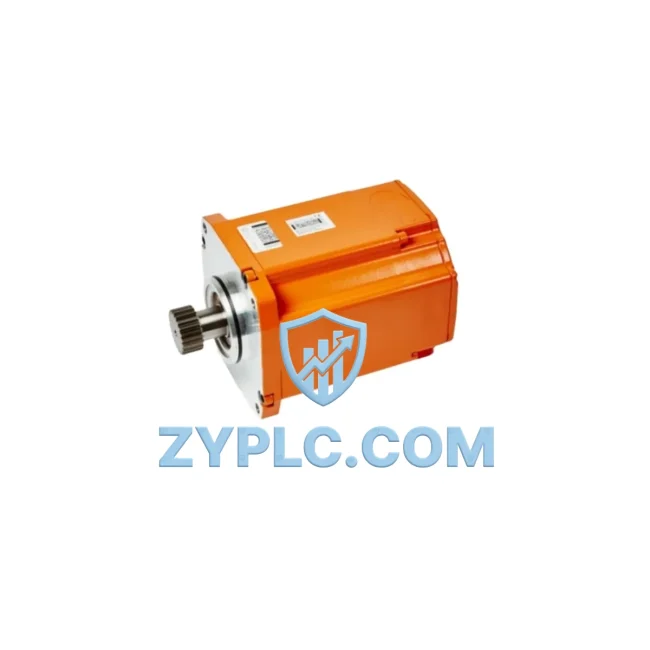

ABB 3HAC14207-1 System-Ready AC Motor with Pinion for IRB Series Architecture

ABB 3HAC14207-1 System-Ready AC Motor with Pinion for IRB Series Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB 3HAC14207-1 is a rotational AC servo motor with integrated pinion, purpose-engineered for deployment within ABB IRB series industrial robot architectures. Rather than functioning as a standalone replacement component, the 3HAC14207-1 occupies a defined role within the robot’s multi-axis drive train — serving as the primary rotational actuator at a designated joint axis, receiving motion commands from the IRC5 controller’s drive module, and delivering precise torque and angular velocity to the mechanical linkage. Understanding this component in the context of the full control system architecture — from the controller layer through the drive layer, I/O layer, communication backbone, and down to the execution layer — is essential for engineers responsible for system integration, commissioning, and long-term maintenance.

In a complete ABB IRB robot cell, the IRC5 controller cabinet houses the main computer module (DSQC639 or equivalent), the drive units (DSQC661 series), and the I/O modules (DSQC652 for digital I/O). The controller issues interpolated motion trajectories via the internal motion bus to the axis computer, which in turn commands each drive unit to regulate current and voltage to the corresponding motor. The 3HAC14207-1 receives this regulated three-phase AC power from its dedicated drive channel, converting electrical energy into the rotational mechanical output required to move the robot arm through its programmed path. The encoder feedback signal — transmitted back through the SMB (Serial Measurement Board, 3HAC17326-1) — closes the position and velocity loop, ensuring sub-millimeter repeatability across thousands of operating cycles.

At the power layer, the IRC5 cabinet’s power supply unit (3HAC025562-001) conditions incoming mains voltage and distributes regulated DC bus power to the drive modules. The drive units then perform the DC-to-AC inversion required to energize the 3HAC14207-1 with the correct frequency and amplitude for the commanded speed profile. This tight integration between the power supply, drive unit, and motor means that any substitution or replacement of the 3HAC14207-1 must account for the motor’s electrical parameters — winding resistance, inductance, back-EMF constant, and thermal class — to ensure the drive unit’s current controller remains stable and the thermal protection thresholds remain valid.

From a network and communication perspective, the IRC5 controller communicates with external systems — SCADA, MES, or safety PLCs — via DeviceNet, PROFIBUS, or EtherNet/IP through the controller’s fieldbus adapter modules (DSQC658 or DSQC688). While the 3HAC14207-1 itself does not participate directly in fieldbus communication, its operational status — encoder health, motor temperature, and drive fault codes — is surfaced through the IRC5’s diagnostic interface and can be forwarded to supervisory systems for predictive maintenance monitoring. This contextual integration of motor-level data into the plant-wide automation network is a key advantage of deploying OEM-specification components such as the 3HAC14207-1 rather than non-OEM alternatives that may lack compatible encoder protocols or thermal sensor interfaces.

For redundancy-conscious system designs — common in automotive body-in-white lines, foundry automation, and continuous process applications — maintaining a verified spare of the 3HAC14207-1 in the local MRO inventory is a standard engineering practice. The motor’s pinion interface is matched to the robot’s gearbox input shaft geometry, meaning that a pre-verified spare can be installed and the robot returned to production within a planned maintenance window, without requiring gearbox realignment or drive re-tuning. This contributes directly to system availability metrics and reduces unplanned downtime risk.

Architecture Specification Table

Coordinated Control System Design

The 3HAC14207-1 does not operate in isolation — its performance is inseparable from the coordinated function of the surrounding system architecture. At the controller level, the IRC5 main computer (DSQC639) executes the RAPID motion program and distributes axis setpoints to the drive system. The axis computer module coordinates the interpolation across all robot axes simultaneously, ensuring that the 3HAC14207-1’s axis moves in synchrony with the remaining joint motors to produce smooth, path-accurate TCP motion.

The drive unit (DSQC661 or DSQC662 depending on axis power rating) receives the current command from the axis computer and regulates the three-phase output to the 3HAC14207-1 with high switching frequency, enabling fast torque response and low speed ripple. The SMB unit (3HAC17326-1) collects resolver or encoder signals from all joint motors — including the 3HAC14207-1 — and transmits position data back to the axis computer via a dedicated serial link, completing the closed-loop position control chain.

At the I/O layer, the DSQC652 digital I/O module manages gripper control, safety gate interlocks, and conveyor synchronization signals. These I/O signals are coordinated with the robot’s motion program so that the 3HAC14207-1 begins its motion cycle only after upstream process conditions — part presence, fixture clamping, or conveyor indexing — have been confirmed. This signal-level coordination between the I/O layer and the execution layer is fundamental to safe and repeatable robot cell operation.

For human-machine interface integration, the FlexPendant (IRC5 teach pendant) provides real-time axis position feedback, motor current monitoring, and fault diagnostics directly referencing the 3HAC14207-1’s drive channel. Maintenance engineers can use the FlexPendant to jog the axis, verify encoder counts, and clear drive faults without requiring external diagnostic tools. At the cabinet level, the power supply unit (3HAC025562-001) and the capacitor bank module ensure that the DC bus remains stable during dynamic load changes — such as rapid deceleration of the arm — protecting the 3HAC14207-1’s winding insulation from voltage transients.

Terminal block assemblies and cable harnesses within the IRC5 cabinet route motor power and encoder signals to the correct drive channel, and the use of OEM-specification connectors ensures that the 3HAC14207-1’s electrical interface is maintained to the original design tolerances. This end-to-end system consistency — from the controller’s motion planner through the drive unit, SMB, and motor to the mechanical output — is what makes the 3HAC14207-1 a system-ready component rather than a generic motor replacement.

Application in Layered Automation Systems

The ABB 3HAC14207-1 is deployed across a wide range of industrial automation sectors where ABB IRB series robots form the execution layer of a multi-tier control architecture.

In automotive manufacturing — body-in-white welding, sealing, and assembly lines — IRB series robots equipped with the 3HAC14207-1 operate under coordinated control from a plant-level PLC (such as a Siemens S7-400 or Allen-Bradley ControlLogix) via PROFIBUS or EtherNet/IP. The robot cell’s IRC5 controller receives work order data from the MES and executes the corresponding RAPID program, with the 3HAC14207-1 delivering the joint torque required for precise weld gun or sealing nozzle positioning. Cycle times in these applications are typically under 30 seconds, placing high demands on the motor’s dynamic response and thermal management.

In electronics and semiconductor assembly, IRB 1400 and IRB 2400 robots use the 3HAC14207-1 in pick-and-place and dispensing applications where path accuracy directly affects product quality. The motor’s low cogging torque and high encoder resolution support the sub-millimeter TCP accuracy required for PCB handling and adhesive dispensing.

In food and beverage packaging lines, the 3HAC14207-1 operates in washdown-adjacent environments where the robot’s IP-rated joint housing protects the motor from moisture ingress. The IRC5 controller’s hygienic design options and the motor’s sealed construction support compliance with food safety standards while maintaining the high throughput required for palletizing and case-packing applications.

In metal fabrication and foundry environments, the motor’s thermal class F rating and robust construction allow sustained operation in high-ambient-temperature conditions. The 3HAC14207-1’s integration with the IRC5’s thermal monitoring system ensures that the drive unit reduces output current before the motor’s winding temperature reaches a critical threshold, protecting the asset and maintaining production continuity.

Across all these applications, the availability of a verified OEM spare — backed by a 12-Month Warranty — is a key factor in the maintenance engineer’s ability to commit to planned replacement intervals and minimize unplanned downtime exposure.

Architecture Engineering FAQ

Q1: Is the ABB 3HAC14207-1 compatible with both IRC5 and S4C+ controller platforms?
Yes. The 3HAC14207-1 was originally designed for use in ABB IRB series robots controlled by the S4C+ platform and remains compatible with IRC5 systems where the same robot mechanical unit is retained. The drive unit and SMB interface parameters are consistent across both controller generations for the IRB models that use this motor. When retrofitting an S4C+ robot to IRC5 control, the motor itself does not require replacement — only the drive unit and controller modules are updated. Always verify the axis configuration file (MOC.cfg) in the IRC5 system to confirm the motor parameters match the 3HAC14207-1 specification before commissioning.

Q2: What installation and commissioning steps are required when replacing the 3HAC14207-1 in a live production robot?
Replacement of the 3HAC14207-1 requires the robot to be placed in a safe, de-energized state with the IRC5 cabinet’s main switch locked out. After mechanical installation and pinion engagement verification, the encoder or resolver reference position must be re-established using the IRC5’s calibration routine (fine calibration or revolution counter update, depending on the axis). The drive unit’s motor parameters should be verified against the 3HAC14207-1 datasheet values in the IRC5 configuration. A low-speed jog test across the full axis range should be performed before returning the robot to automatic mode. ZYPLC provides technical support documentation to assist engineers through this process.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failure of the 3HAC14207-1 under normal operating conditions — including winding insulation failure, encoder signal degradation, and bearing failure attributable to manufacturing quality. The warranty period begins from the date of shipment. For maintenance planners, this warranty provides a defined risk-free window during which a replacement motor can be sourced and installed without additional cost exposure, supporting the development of a predictive maintenance schedule aligned with the robot’s planned service intervals. ZYPLC maintains stock of the 3HAC14207-1 to support rapid dispatch for both planned replacements and emergency breakdown situations.
