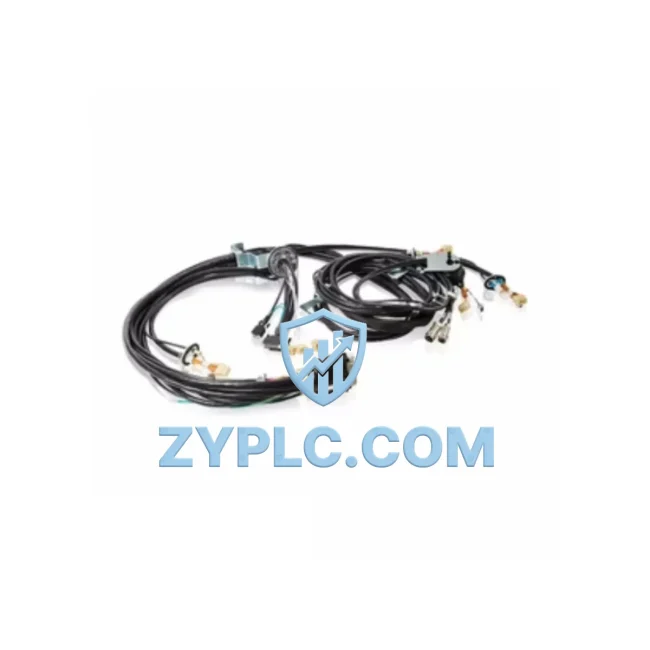

ABB 3HAC16331-1 System-Ready Cable Harness for IRB 6600 Architecture

ABB 3HAC16331-1 System-Ready Cable Harness for IRB 6600 Architecture

In a fully integrated industrial robot control architecture, every signal path, power feed, and communication link must be engineered for long-term reliability and system-wide consistency. The ABB 3HAC16331-1 cable harness — designed specifically for the manipulator axes 1 through 4 of the IRB 6600 and IRB 6650 series — is not simply a replacement component. It is a precision-engineered subsystem element that sustains the electrical and mechanical integrity of the entire robot cell. When deployed within a coordinated automation environment, this cable harness directly supports signal continuity between the controller cabinet and the manipulator body, ensuring that motion commands, encoder feedback, brake signals, and motor power are transmitted without degradation across the full operational lifecycle of the robot.

The IRB 6600 platform is widely deployed in heavy-duty manufacturing environments including automotive body-in-white assembly, foundry tending, press tending, and large-part material handling. In these applications, the cable harness running through axes 1 to 4 is subjected to continuous torsional stress, thermal cycling, and mechanical flexion. The 3HAC16331-1 is engineered to ABB’s original specification tolerances, ensuring that connector pinouts, cable routing geometry, and shielding integrity match the factory-defined architecture of the IRB 6600 manipulator. This is critical for maintaining Contextual Integration across the robot’s internal wiring topology — meaning that the harness interfaces correctly with upstream controller hardware, downstream servo drives, and the robot’s internal junction points without requiring custom adaptation or field modification.

Architecture Specification Table

Coordinated Control System Design

The 3HAC16331-1 cable harness operates at the intersection of the controller layer and the mechanical execution layer in the IRB 6600 robot architecture. Its function cannot be evaluated in isolation — it must be understood as part of a coordinated signal and power distribution system that spans multiple hardware layers within the robot cell.

At the controller level, the ABB IRC5 controller cabinet serves as the central command node, issuing motion trajectories via the RAPID programming environment and distributing drive signals through its internal drive modules. The 3HAC16331-1 harness carries these signals from the controller’s axis computer and drive units down through the robot base and into the lower manipulator body, feeding axes 1, 2, 3, and 4 with the motor power and encoder return signals required for closed-loop position control. The harness must maintain shielding continuity to prevent electromagnetic interference from corrupting encoder feedback — a failure mode that would manifest as position drift, servo alarms, or uncontrolled motion faults in the IRC5 drive system.

Within the same robot cell, the 3HAC16331-1 works in coordination with the upper-axis cable harness (typically the 3HAC16332-1 or equivalent for axes 5 and 6), the SMB (Serial Measurement Board) unit responsible for resolver signal conditioning, and the axis computer board housed within the IRC5 cabinet. The brake release unit and the robot’s internal junction box also interface directly with this harness, making its connector integrity critical for safe robot operation — particularly during emergency stop sequences and power-on brake release cycles.

For installations using the IRB 6650S variant or extended-reach configurations, the cable routing geometry of the 3HAC16331-1 is designed to accommodate the additional mechanical travel range without exceeding cable flex limits. In redundant robot cell designs — where a backup robot or a dual-arm configuration is used to maintain production continuity — having a verified spare 3HAC16331-1 in inventory ensures that unplanned downtime can be resolved within a single maintenance window rather than requiring extended lead times for sourcing replacement harnesses.

Additional components that interact directly with this harness in a complete IRB 6600 system architecture include the teach pendant (FlexPendant) connected via the IRC5 operator panel, the DSQC series I/O modules for digital and analog signal distribution, the power supply unit within the IRC5 drive module, and the robot’s base-mounted cable entry bracket. In multi-robot cells managed by a RobotStudio offline programming environment or a PLC-based cell controller communicating via DeviceNet or EtherNet/IP, the signal integrity maintained by the 3HAC16331-1 is foundational to the overall system’s deterministic response performance.

Application in Layered Automation Systems

The ABB 3HAC16331-1 cable harness is deployed across a wide range of heavy industrial automation environments where the IRB 6600 and IRB 6650 platforms are the primary robotic execution layer.

In automotive manufacturing, IRB 6600 robots equipped with this harness perform spot welding, arc welding, and body panel handling on high-throughput assembly lines. The harness must sustain reliable operation through thousands of daily motion cycles, often in environments with elevated ambient temperatures and weld spatter contamination. Signal integrity across axes 1–4 is essential for maintaining weld path repeatability within the tolerances required by automotive quality standards.

In foundry and die-casting applications, the IRB 6600 is used for machine tending and part extraction from high-temperature molds. The 3HAC16331-1 harness must withstand thermal stress and vibration while maintaining continuous encoder feedback to the IRC5 controller, ensuring that the robot’s position accuracy is not compromised by the harsh thermal environment.

In heavy material handling and palletizing systems, the IRB 6600’s payload capacity of up to 500 kg (in extended configurations) places significant mechanical load on the lower-axis cable routing. The 3HAC16331-1 is designed to accommodate this load profile, with cable routing geometry that prevents pinching or abrasion during full-range axis rotation.

In process industries including petrochemical plant maintenance robotics, steel mill automation, and mining equipment assembly, the IRB 6600 platform is valued for its structural rigidity and long service intervals. In these environments, the availability of a verified OEM-specification cable harness with a 12-Month Warranty is a key factor in maintenance planning, as unplanned downtime in these sectors carries significant operational cost.

For packaging and end-of-line automation in food processing and consumer goods manufacturing, IRB 6600 robots handle case packing, palletizing, and product orientation tasks. The 3HAC16331-1 supports the consistent, high-cycle-rate operation required in these environments, where robot availability directly impacts line throughput and OEE metrics.

Architecture Engineering FAQ

Q1: Is the 3HAC16331-1 compatible with both the IRC5 and S4C+ controller platforms used with the IRB 6600?
The 3HAC16331-1 cable harness is designed to the OEM specification for the IRB 6600 manipulator and is compatible with the IRC5 controller platform, which is the primary controller used with this robot series. Compatibility with the earlier S4C+ platform should be verified against the specific robot serial number and controller configuration, as connector pinouts and signal assignments may differ between controller generations. Our technical team can assist with cross-reference verification prior to order confirmation.

Q2: What is the recommended installation procedure for replacing the 3HAC16331-1 harness, and are there any calibration requirements after replacement?
Replacement of the axes 1–4 cable harness requires the robot to be placed in a defined maintenance position with all axes locked and the IRC5 controller powered down and locked out. The harness routing must follow the original cable management path through the robot base and lower arm, with all connector seating verified before power-up. After installation, a resolver calibration (fine calibration) procedure using the FlexPendant is required to re-establish accurate axis position references. This procedure is documented in the ABB IRB 6600 Product Manual and should be performed by a qualified ABB-certified service technician.

Q3: What does the 12-Month Warranty cover, and what is the process for a warranty claim?
The 12-Month Warranty covers manufacturing defects, connector integrity failures, and signal continuity issues attributable to the harness assembly itself under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the robot’s specified environmental parameters. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the order reference, installation date, and a description of the fault. Our technical team will coordinate inspection and replacement logistics to minimize system downtime.
