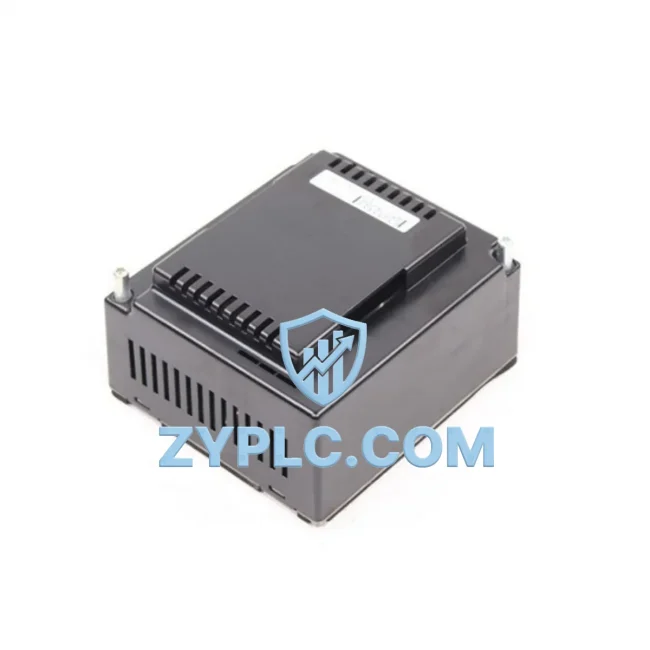

ABB 3HAC17282-1 DSQC601 Industrial Network Interface for IRC5 Systems

ABB 3HAC17282-1 DSQC601 Industrial Network Interface for IRC5 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The ABB 3HAC17282-1 (DSQC601) is a high-performance industrial network interface module engineered for ABB IRC5 robot controller platforms. Designed to serve as a critical communication bridge between field-level devices and upper-level control systems, this module enables seamless data exchange across DeviceNet and EtherNet/IP networks — two of the most widely deployed industrial communication protocols in modern smart factory architectures. Whether integrating robotic arms into a SCADA-managed production cell or connecting servo-driven axes to a distributed PLC network, the DSQC601 delivers the real-time data throughput and protocol reliability that Industry 4.0 demands.

In today’s automated manufacturing environments, the ability to move data reliably from the servo axis level up through the control hierarchy — through PLCs, HMIs, SCADA platforms, and MES systems — is not optional. It is the backbone of production transparency. The ABB 3HAC17282-1 DSQC601 is purpose-built to fulfill this role within the IRC5 ecosystem, ensuring that every torque command, position feedback signal, and fault status is accurately transmitted, logged, and acted upon in real time.

Network Communication Table

Connected Automation Data Flow

Understanding the DSQC601’s role requires tracing the full data path of a modern robotic production cell. At the field level, servo motors and encoders generate continuous position, velocity, and torque feedback signals. These signals are processed by the ABB IRC5 main computer module — typically the DSQC652 (I/O board) or the DSQC639 (main computer unit) — before being passed to the DSQC601 network interface for upstream transmission.

On the DeviceNet segment, the DSQC601 communicates directly with distributed I/O nodes, safety relays, and field sensors — including proximity switches, photoelectric sensors, and pressure transducers — that feed real-time process data into the robot controller. Simultaneously, on the EtherNet/IP side, the module interfaces with the plant-level PLC — such as an Allen-Bradley ControlLogix or Siemens S7-1500 — enabling coordinated motion sequencing and production line synchronization across multiple robot cells.

The data collected at the DSQC601 level flows upward through managed industrial Ethernet switches — such as those in the Hirschmann MICE or Cisco IE 4000 series — to reach the SCADA layer. Here, platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC visualize robot status, cycle counts, fault histories, and energy consumption in real time. HMI panels — including ABB CP600 series or Siemens TP1200 Comfort — mounted at the cell level provide operators with immediate access to axis diagnostics and alarm acknowledgment without requiring remote desktop access to the controller.

For applications involving variable-speed drives and coordinated motion, the DSQC601 also supports integration with ABB ACS880 series drives via EtherNet/IP, enabling closed-loop speed and torque control across multi-axis robotic workcells. Edge gateway devices — such as the Moxa UC-8112 or Advantech WISE-5000 — can further aggregate data from the DSQC601 network segment and push it to cloud-based MES or ERP platforms, completing the digital thread from servo axis to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy fieldbus systems and modern Ethernet-based networks within the same facility. Many production sites operate a mix of DeviceNet-based legacy robot cells alongside newer EtherNet/IP-enabled equipment — creating protocol silos that prevent unified monitoring and coordinated control.

The ABB 3HAC17282-1 DSQC601 directly addresses this challenge by providing native dual-protocol support within a single IRC5 controller slot. Rather than deploying external protocol converters or gateway appliances — which introduce additional latency, failure points, and maintenance overhead — the DSQC601 enables the IRC5 controller to participate simultaneously in both network architectures. This eliminates data islands at the robot cell level and allows SCADA systems to receive unified, timestamped data streams from all connected devices regardless of their underlying fieldbus protocol.

For facilities undergoing digital transformation, the DSQC601 also supports production line transparency initiatives by enabling remote diagnostics and predictive maintenance workflows. Fault codes, axis load data, and communication error logs generated by the IRC5 controller can be forwarded via EtherNet/IP to remote monitoring platforms, allowing maintenance engineers to identify degrading components — such as worn servo bearings or cable harness faults — before they cause unplanned downtime. This capability is particularly valuable in high-throughput automotive, electronics, and food processing environments where robot uptime directly impacts OEE targets.

System expansion is equally straightforward. As production capacity grows, additional IRC5 robot cells equipped with DSQC601 modules can be added to the existing DeviceNet or EtherNet/IP network without requiring changes to the SCADA architecture or PLC program structure. Each new node is recognized automatically by the network master, and its I/O mapping is configured through the ABB RobotStudio commissioning environment — reducing integration time from days to hours.

Every unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication link verification on both DeviceNet and EtherNet/IP segments, servo feedback signal integrity checks, and firmware version confirmation. All units are backed by a 12-month warranty and are available from in-stock inventory for immediate global dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3HAC17282-1 DSQC601 support, and are they compatible with third-party PLCs?
The DSQC601 supports DeviceNet and EtherNet/IP — both open, internationally standardized industrial protocols. DeviceNet is compatible with any CAN-based network master, while EtherNet/IP is supported by PLCs from Allen-Bradley, Siemens (via EDS adapter), Omron, Mitsubishi, and other major vendors. This makes the DSQC601 suitable for multi-vendor automation environments without requiring proprietary gateways.

Q2: What is the typical communication latency, and is it suitable for real-time motion control applications?
The DSQC601 is designed for deterministic, low-latency communication within the IRC5 controller architecture. DeviceNet cycle times are configurable down to 1 ms for time-critical I/O, while EtherNet/IP supports both cyclic (implicit) messaging for real-time control and acyclic (explicit) messaging for configuration and diagnostics. This dual-mode capability makes it suitable for both high-speed motion coordination and asynchronous data logging.

Q3: How is network stability ensured in high-interference industrial environments?
The DSQC601 is engineered to ABB’s industrial-grade EMC standards, with shielded interface connectors and onboard filtering to suppress electrical noise from servo drives, welding equipment, and variable-frequency drives. For EtherNet/IP segments, it is recommended to use managed industrial switches with IGMP snooping and QoS prioritization to ensure robot communication traffic is not disrupted by background network load.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All ABB 3HAC17282-1 DSQC601 units supplied by ZYPLC are tested for full communication functionality on both DeviceNet and EtherNet/IP prior to shipment. The 12-month warranty covers hardware defects and communication failures under normal operating conditions. Units are shipped with original packaging where available, and technical support is provided throughout the warranty period via direct contact with the ZYPLC engineering team.
