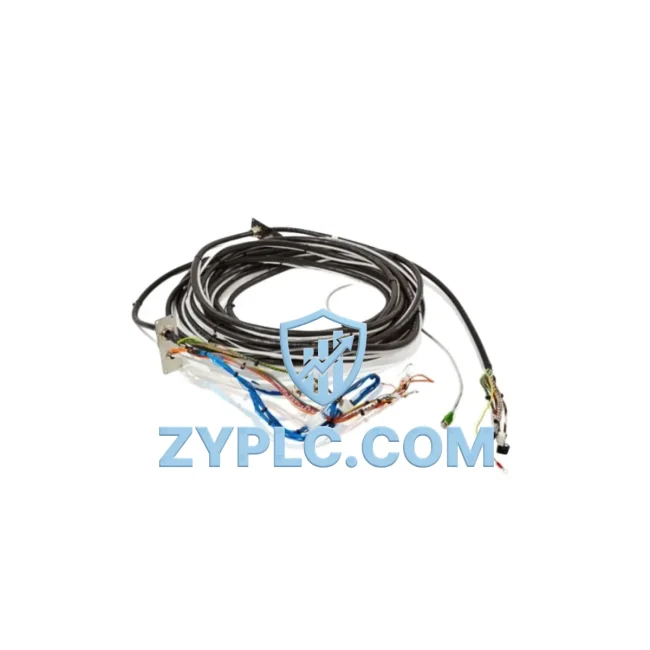

ABB 3HAC5697-1 Energy-Saving Cable Unit IRB 4400

ABB 3HAC5697-1 Energy-Saving Cable Unit IRB 4400: Precision Cable Management for Optimized Automation

The ABB 3HAC5697-1 is a factory-grade cable unit module engineered specifically for the ABB IRB 4400 industrial robot series, covering Axis 4–6 motion zones. In modern manufacturing environments where energy efficiency and equipment uptime are directly tied to profitability, this cable unit plays a critical role in maintaining clean signal transmission, reducing resistive losses in wiring harnesses, and ensuring that servo drives and motion controllers receive uninterrupted, low-noise power and feedback signals. By eliminating cable fatigue-induced micro-interruptions, the 3HAC5697-1 directly contributes to smoother cycle times, lower reactive energy consumption, and reduced thermal stress on downstream drive components.

Industrial facilities running ABB IRB 4400 robots in arc welding, material handling, or assembly applications often overlook the cable management layer as a source of energy inefficiency. Degraded or mismatched cable units force servo amplifiers — such as the ABB DSQC 601 drive unit — to compensate for signal noise with increased correction cycles, raising both power draw and heat output. The 3HAC5697-1 restores the integrity of the wiring path between the robot’s upper arm and its axis 4–6 servo motors, allowing the ABB IRC5 controller to execute motion profiles with minimal deviation and maximum energy-per-cycle efficiency.

Each unit shipped from ZYPLC undergoes full functional testing under load conditions before dispatch, with a 12-month warranty covering component integrity and electrical performance. Stock is maintained on-hand for immediate fulfillment, supporting production lines that cannot tolerate extended downtime windows.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ABB IRB 4400 operates within a tightly integrated automation architecture where every component in the signal and power chain affects overall system energy efficiency. The 3HAC5697-1 cable unit sits at the intersection of mechanical motion and electrical control, routing both power and encoder feedback signals through the robot’s upper arm structure. When this cable assembly is worn or incorrectly specified, the ABB DSQC 601 and DSQC 602 servo drive modules must increase their PWM correction frequency to compensate for signal degradation — a process that raises switching losses and increases heat dissipation across the drive cabinet.

Upstream, the ABB IRC5 controller manages motion planning and energy distribution across all six axes. A clean cable unit ensures that resolver and encoder data from the axis 4–6 motors reaches the IRC5 without latency or noise artifacts, enabling the controller’s energy optimization algorithms to function as designed. In multi-robot cells, this becomes especially important: the ABB Panel Board DSQC 330 and associated I/O modules rely on synchronized feedback from all robots to coordinate production rhythm and avoid energy-wasting idle states.

For facilities integrating energy monitoring at the cell level, pairing the IRB 4400 with a power measurement module such as the ABB B23 energy meter or a compatible third-party power analyzer allows maintenance teams to directly observe the reduction in reactive power consumption after replacing a degraded cable unit. Combined with the ABB Ability™ condition monitoring platform, real-time winding temperature and vibration data from the axis motors can be correlated with cable unit health, enabling predictive replacement scheduling before energy losses become measurable at the utility meter.

Communication integrity is equally important. The IRB 4400’s integration with PROFIBUS-DP or DeviceNet fieldbus networks — via the ABB DSQC 350 or DSQC 352 fieldbus adapter — depends on stable internal wiring to prevent bus errors that trigger safety stops and unplanned downtime. Each unplanned stop in a production cell typically wastes 3–8 minutes of cycle time and leaves servo drives in a high-energy braking state. The 3HAC5697-1 eliminates a common root cause of these interruptions.

Power Optimization in Real Production Lines

In automotive body shop applications, ABB IRB 4400 robots running continuous arc welding cycles operate at near-maximum duty cycles for 16–20 hours per day. Under these conditions, cable unit degradation accelerates due to repeated flexion through the full range of axis 4–6 motion. A failing cable unit introduces intermittent encoder errors that the IRC5 controller logs as minor faults — faults that individually appear harmless but collectively force the servo system to run in a degraded motion-smoothing mode that increases energy consumption by an estimated 4–9% per affected axis.

Replacing the 3HAC5697-1 on a scheduled basis — aligned with the robot’s 5,000-hour preventive maintenance interval — restores full encoder signal quality and allows the IRC5’s QuickMove™ and TrueMove™ motion optimization algorithms to operate at their designed efficiency points. This directly reduces the time-per-weld-cycle, improving line throughput without increasing installed power capacity. In facilities with 10 or more IRB 4400 units, the cumulative energy saving from properly maintained cable units can offset a meaningful portion of annual electricity costs.

From a maintenance cost perspective, proactive cable unit replacement is significantly less expensive than reactive repair after a full cable harness failure. A harness failure on an IRB 4400 axis 4–6 typically requires 4–6 hours of robot downtime for rewiring and recalibration — during which the entire production cell is idle. At typical automotive production line rates, this represents a far greater cost than the cable unit itself. ZYPLC maintains ready stock of the 3HAC5697-1 and its cross-reference equivalents (3HAB7705-1 and 3HAC069662-001) to support just-in-time maintenance programs with same-day or next-day dispatch capability.

Energy Optimization FAQ

Q1: How does replacing the 3HAC5697-1 cable unit reduce energy consumption on the IRB 4400?
A degraded cable unit introduces encoder signal noise that forces the ABB IRC5 controller and DSQC servo drives to increase correction cycle frequency. This raises switching losses and reactive power draw across axis 4–6. Replacing the cable unit with a new 3HAC5697-1 restores clean signal transmission, allowing the servo system to operate at its designed efficiency point and reducing unnecessary energy expenditure per motion cycle.

Q2: Is the 3HAC5697-1 compatible with all IRB 4400 variants and controller generations?
Yes. The 3HAC5697-1 is compatible with all IRB 4400 robot variants across Axis 4–6, and is designed to work with both the S4C+ and IRC5 controller platforms. Cross-reference part numbers 3HAB7705-1 and 3HAC069662-001 confirm interchangeability across production batches. If you are unsure about compatibility with a specific robot serial number or controller revision, contact ZYPLC with your robot’s nameplate data for confirmation before ordering.

Q3: What is the recommended replacement interval, and how is the unit tested before shipment?
ABB recommends cable unit inspection at every 5,000-hour preventive maintenance interval, with replacement based on visual inspection and encoder error log review. ZYPLC subjects every 3HAC5697-1 unit to a full functional load test simulating axis 4–6 motion profiles before dispatch. Units that do not pass electrical continuity, insulation resistance, and signal integrity checks are not shipped. All shipped units carry a 12-month warranty covering component integrity and electrical performance from the date of receipt.

Q4: What is the lead time, and does ZYPLC offer support for urgent production line requirements?
ZYPLC maintains in-stock inventory of the 3HAC5697-1 for immediate dispatch. Standard orders ship within 1 business day. For urgent production line requirements, contact the ZYPLC sales team directly at +86 19859288691 or plc.sales@zyplc.com to arrange priority fulfillment. Express shipping options are available to most industrial regions globally.
