ABB 3HNA006142-001 Industrial Network Interface for IRC5 Systems

ABB 3HNA006142-001 Industrial Network Interface for IRC5 Systems: Bridging the Industrial Data Link in Smart Factory Environments

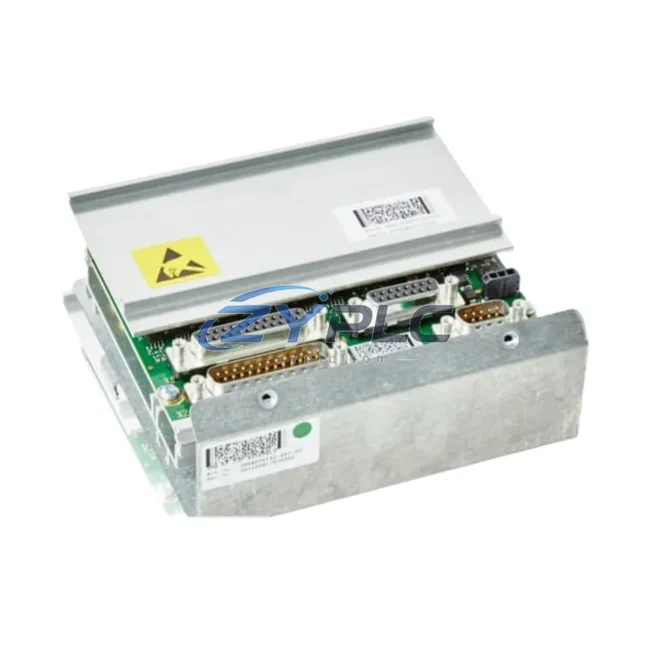

The ABB 3HNA006142-001 is a purpose-engineered industrial network interface module designed for seamless integration within the IRC5 robot controller ecosystem. As modern manufacturing facilities accelerate their transition toward Industry 4.0 architectures, the demand for reliable, high-throughput communication between field-level devices and supervisory systems has never been greater. This module serves as a critical data bridge — connecting robotic actuators, servo drives, and motion controllers to PLC networks, SCADA platforms, and HMI terminals with deterministic, low-latency performance.

Whether deployed in automotive body-in-white welding cells, precision assembly lines, or flexible manufacturing systems, the 3HNA006142-001 ensures that every signal — from encoder feedback and torque data to alarm states and diagnostic registers — flows reliably across the industrial network backbone. Its robust design supports continuous operation in harsh environments, making it a trusted component for system integrators and OEM machine builders worldwide.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully connected smart factory, the ABB 3HNA006142-001 sits at the heart of the robot controller’s communication stack, orchestrating data exchange across multiple layers of the automation hierarchy. At the field level, the IRC5 controller — equipped with this network interface module — receives real-time feedback from ABB servo motors and resolver-based encoders via the internal drive bus, translating motion data into structured network packets that upstream systems can consume.

These packets travel upward through the fieldbus layer, where a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller acts as the network master, coordinating robot motion sequences with conveyor drives, vision systems, and safety PLCs. The 3HNA006142-001 module enables the IRC5 to participate as a fully addressable node on PROFIBUS-DP or DeviceNet networks, exchanging I/O maps and status words with the PLC at scan rates well within the demands of high-speed production cycles.

At the supervisory level, an ABB RobotStudio OPC-UA server or a Wonderware SCADA / Ignition SCADA platform subscribes to the robot’s live data tags — cycle counts, fault codes, joint temperatures, payload data — delivered through the network interface in real time. HMI panels such as the ABB CP600 series or third-party Weintek / Proface HMI terminals display this data to operators on the shop floor, enabling immediate response to process deviations.

For remote I/O expansion, the IRC5 network interface communicates with ABB AC500 remote I/O modules or Phoenix Contact Axioline F distributed I/O stations, extending the robot cell’s digital and analog signal reach without additional cabling runs. Variable frequency drives — such as the ABB ACS880 series — connected on the same fieldbus segment share torque and speed references with the robot controller, enabling tightly synchronized multi-axis motion profiles critical for collaborative assembly tasks.

Edge computing gateways, such as the Moxa MGate MB3000 series or HMS Anybus X-gateway, may be deployed alongside the 3HNA006142-001 to bridge legacy Modbus RTU devices — older sensors, flow meters, and pressure transmitters — into the modern EtherNet/IP or PROFINET backbone, ensuring no data island is left behind in the migration to a fully transparent production network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across generations of equipment. A single production line may simultaneously run PROFIBUS-DP legacy devices, EtherNet/IP modern controllers, and Modbus RTU instruments — each operating in isolation, unable to share data without manual intervention or costly middleware solutions.

The ABB 3HNA006142-001 directly addresses this challenge by providing the IRC5 robot controller with a standardized, configurable network interface that can be adapted to the dominant protocol of the host network. Rather than requiring a separate protocol converter or gateway appliance, the module integrates protocol translation at the controller level, reducing network latency, eliminating single points of failure, and simplifying the overall system architecture.

For facilities pursuing production line transparency, the 3HNA006142-001 enables the IRC5 to publish its operational data — cycle time, weld count, error history, preventive maintenance counters — directly to MES (Manufacturing Execution System) databases and cloud analytics platforms. This eliminates the data silos that traditionally separated robot controllers from enterprise IT systems, giving production managers real-time visibility into OEE (Overall Equipment Effectiveness) metrics without requiring manual data collection.

Remote diagnostics capabilities are equally significant. Maintenance engineers can interrogate the IRC5 controller’s fault log, I/O status, and network health indicators from a remote workstation or mobile device via the SCADA network, reducing mean time to repair (MTTR) and enabling predictive maintenance scheduling based on actual equipment condition rather than fixed time intervals. System expansion is straightforward: additional IRC5 controllers equipped with the 3HNA006142-001 module can be added to the fieldbus network as new nodes, scaling the robot fleet without redesigning the communication architecture.

Every unit supplied by ZYPLC undergoes functional testing and network communication verification prior to shipment, backed by a warranty terms confirmed during quotation. Availability confirmed by RFQ inventory ensures rapid fulfillment for both planned system expansions and emergency replacement scenarios, minimizing production downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB 3HNA006142-001 support, and is it compatible with my existing PLC network?
The 3HNA006142-001 is designed for the ABB IRC5 controller platform and supports major industrial fieldbus and Ethernet protocols including DeviceNet, PROFIBUS-DP, and EtherNet/IP depending on the specific firmware and hardware configuration. It is compatible with PLC networks from Siemens, Rockwell Automation, Mitsubishi, and other major vendors that support these standard protocols. Please provide your network topology details when submitting an RFQ so our engineers can confirm compatibility.

Q2: What is the communication latency, and is it suitable for real-time motion control applications?
The module is engineered for deterministic, real-time communication within the IRC5 controller architecture. Cyclic data exchange rates are optimized for high-speed production environments, with latency characteristics suitable for coordinated motion, conveyor tracking, and synchronized multi-robot applications. Specific cycle time parameters depend on the fieldbus protocol selected and the number of nodes on the network segment.

Q3: How is the unit tested before shipment, and what does the warranty terms confirmed during quotation cover?
Every ABB 3HNA006142-001 unit supplied by ZYPLC is functionally tested to verify communication interface integrity, backplane connectivity, and firmware responsiveness prior to dispatch. The warranty terms confirmed during quotation covers hardware defects and communication failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair at no additional cost.

Q4: Can the 3HNA006142-001 be used to expand an existing IRC5 robot network, and what are the scalability limits?
Yes. The module supports network topologies that allow multiple IRC5 controllers to operate as nodes on the same fieldbus segment, enabling scalable robot fleet expansion without redesigning the communication backbone. The practical node limit depends on the protocol in use — PROFIBUS-DP supports up to 126 nodes per segment, while DeviceNet supports up to 64 nodes. For large-scale deployments, network segmentation with managed industrial switches is recommended to maintain optimal throughput and fault isolation.
