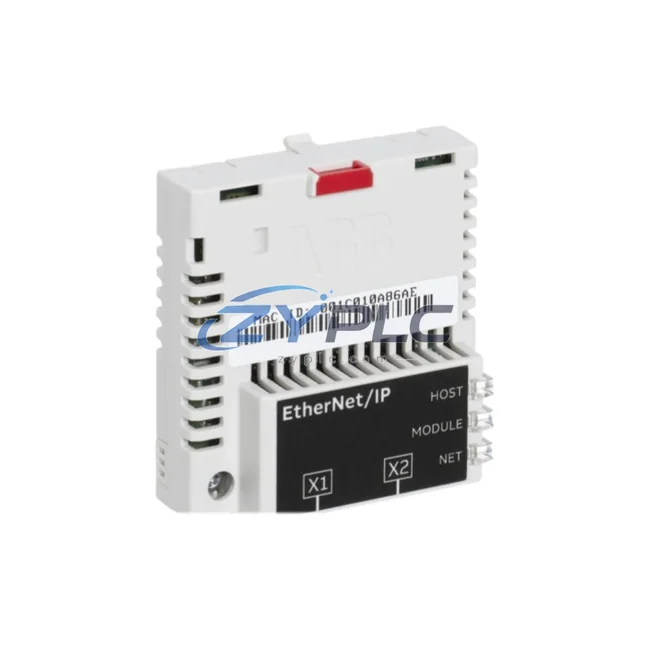

In modern industrial automation, the reliability of a drive communication interface is not measured in isolation — it is measured by how seamlessly it integrates into the broader control system architecture. The ABB FEIP-21 (part number 3AXD50000192793) is an EtherNet/IP fieldbus adapter module engineered specifically for ABB ACS880 and ACS580 series variable frequency drives. It serves as the critical communication bridge between the drive control layer and the supervisory PLC or DCS network, enabling real-time parameter exchange, status monitoring, and command execution across high-speed industrial Ethernet infrastructure.

When deployed within a layered automation architecture, the FEIP-21 occupies the network communication layer — connecting the drive’s internal DDCS (Drive-to-Drive Communication System) interface to the plant-wide EtherNet/IP network managed by a Rockwell Automation ControlLogix, CompactLogix, or equivalent EtherNet/IP scanner. This integration allows engineers to consolidate drive control, diagnostics, and process data into a unified SCADA or DCS environment without the need for proprietary gateways or protocol converters.

The FEIP-21 supports both explicit messaging and implicit (I/O) messaging over EtherNet/IP, enabling cyclic process data exchange at deterministic intervals. This makes it suitable for applications where drive speed reference, torque control, and fault status must be synchronized with upstream PLC logic in real time. Its dual-port RJ45 interface supports Device Level Ring (DLR) topology, providing network-level redundancy that is essential in continuous process industries such as oil and gas, water treatment, and power generation.

Product Specification Table

System Compatibility Notes

The FEIP-21 does not function as a standalone component — its value is realized only when it is correctly positioned within a coordinated drive and automation system. In a typical ACS880 multi-drive architecture, the FEIP-21 is installed in the option slot of the RDCU-12C drive control unit, which manages the inverter’s core logic, parameter storage, and I/O coordination. The RDCU-12C communicates with the FEIP-21 over the internal DDCS bus, forwarding EtherNet/IP commands from the PLC to the drive’s speed and torque controllers.

On the power side, the ACS880-04 regenerative supply unit or the ACS880-01 single drive unit provides the DC bus voltage to the inverter modules. The FEIP-21 enables the PLC to monitor DC bus voltage, output current, and thermal status of these units in real time, supporting predictive maintenance workflows. In multi-drive cabinet systems, the BCON-01 brake control unit and RINT-5611C inverter interface board are often co-deployed alongside the FEIP-21 to manage braking resistor activation and inverter gate signals — all of which can be supervised through the EtherNet/IP network once the FEIP-21 is active.

For applications requiring parallel communication paths or protocol bridging, the FENA-21 EtherNet/IP and PROFINET dual-protocol adapter can be used as an alternative or supplementary module in adjacent drive cabinets. Similarly, the FPNO-21 PROFINET adapter serves drives in Siemens-dominated network environments, while the FEIP-21 handles the Rockwell or ODVA EtherNet/IP segments. This mixed-protocol architecture is common in large petrochemical or mining facilities where multiple automation vendors coexist on the same plant floor.

At the HMI layer, the CDP312R control panel provides local parameter access and fault acknowledgment directly on the drive, complementing the remote monitoring capability provided by the FEIP-21 over the network. Engineers can use the CDP312R for commissioning and on-site diagnostics while the FEIP-21 maintains continuous data exchange with the SCADA system. In safety-critical applications, the MREL-01 motor protection relay can be integrated into the same control cabinet, with its trip signals wired into the drive’s digital input terminals and its status monitored via the EtherNet/IP network through the FEIP-21 interface.

The CI873AK01 EtherNet/IP interface module for ABB System 800xA DCS platforms can serve as the EtherNet/IP scanner on the controller side, communicating directly with the FEIP-21 in the drive. This configuration is widely used in power plant auxiliary systems, where ABB 800xA manages boiler feed pumps, cooling water pumps, and induced draft fans — all driven by ACS880 units equipped with FEIP-21 adapters.

Industrial Application Notes

The FEIP-21 is deployed across a wide range of process and discrete manufacturing industries. In water and wastewater treatment plants, ACS880 drives equipped with FEIP-21 adapters control submersible pumps, blower motors, and sludge agitators. The EtherNet/IP connection allows the plant SCADA system to implement flow-based speed control, monitor motor current for pump wear detection, and log fault events for regulatory compliance reporting.

In the metals and mining sector, FEIP-21-equipped drives manage conveyor belt motors, crusher drives, and hoist systems. The DLR topology support ensures that a single cable fault does not interrupt drive communication, which is critical in underground mining environments where cable damage is a frequent occurrence. The ability to perform parameter backup and restore over EtherNet/IP also reduces commissioning time when drives are replaced after mechanical failure.

In the oil and gas industry, FEIP-21 adapters are used in wellhead pump control panels and compressor drive systems. The explicit messaging capability allows the DCS to read and write drive parameters — such as acceleration ramp time, current limit, and flux optimization mode — without interrupting the ongoing I/O data exchange. This is essential during process transitions where drive behavior must be adjusted dynamically based on upstream process conditions.

Packaging and material handling lines benefit from the FEIP-21’s low-latency implicit messaging, which enables tight synchronization between multiple drives on the same conveyor system. In these applications, the PLC uses EtherNet/IP I/O connections to send speed references to each drive at every PLC scan cycle, ensuring consistent product spacing and preventing jams caused by speed mismatches between adjacent conveyor sections.

Product Compatibility FAQ

Q1: Is the FEIP-21 compatible with both ACS880 and ACS580 drive platforms, and does it require different firmware for each?
The FEIP-21 is compatible with both the ACS880 and ACS580 drive series, as well as the ACS380 in certain configurations. The adapter uses the same hardware across platforms, but the drive firmware version must meet the minimum requirement specified in the FEIP-21 hardware manual (typically ACS880 firmware 2.60 or later). No separate firmware image is required for the adapter itself — it is configured entirely through the drive’s parameter set (parameter group 51 for fieldbus adapter settings). Always verify compatibility using the ABB Drive Composer commissioning tool before deployment.

Q2: How does the FEIP-21 support system redundancy, and what happens if the EtherNet/IP network connection is lost?
The FEIP-21 supports Device Level Ring (DLR) topology, which provides automatic network recovery in the event of a single cable or switch failure. In DLR mode, the ring supervisor (typically the PLC or a managed switch) detects the fault and reconfigures the ring within milliseconds, maintaining uninterrupted communication with all connected drives. If the EtherNet/IP connection is lost entirely, the drive’s response is governed by the fieldbus communication loss function (parameter 50.02 in ACS880), which can be configured to maintain last speed, ramp to stop, or trigger a fault — depending on the safety requirements of the application. This behavior should be validated during factory acceptance testing.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for the FEIP-21?
ZYPLC provides a warranty terms confirmed during quotation on all FEIP-21 units, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC offers advance replacement to minimize system downtime. Beyond the warranty period, ZYPLC supports RFQ sourcing for FEIP-21 and related ABB drive communication modules — including FENA-21, FPNO-21, and RDCU-12C — to support long-term spare parts programs for plant maintenance teams. For volume procurement or consignment stock arrangements, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
