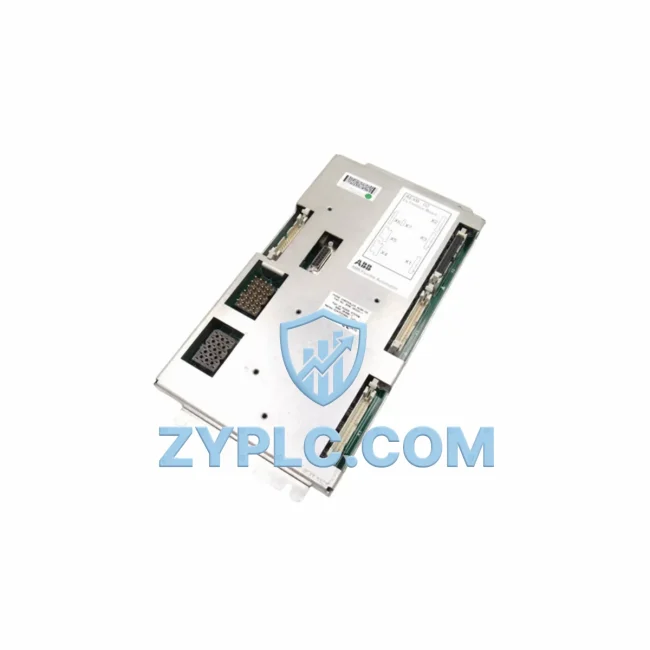

ABB 3HNE06225-1 Energy-Saving Interface Board for DSQC Automation

ABB 3HNE06225-1 Energy-Saving Interface Board for DSQC Automation

The ABB 3HNE06225-1 (AEXB-02) is a high-performance interface board engineered for the DSQC series robot control architecture. Designed to operate within ABB’s IRC5 controller ecosystem, this board serves as a critical communication and signal-routing node between the robot’s motion control unit and peripheral I/O systems. In modern manufacturing environments where energy efficiency and uptime are directly tied to profitability, the 3HNE06225-1 plays a foundational role in ensuring that every watt consumed by the robot system translates into productive motion — not wasted heat, idle cycles, or signal latency.

Industrial facilities running ABB IRB series robots — including the IRB 6700, IRB 4600, and IRB 2600 — depend on reliable interface boards to maintain synchronized communication between the DSQC 679 teach pendant, the DSQC 652 digital I/O board, and the main computer unit. When this communication layer degrades due to a faulty or aging interface board, the entire robot cell can experience increased cycle times, false fault triggers, and unplanned downtime — all of which translate directly into elevated energy consumption per unit produced. Replacing or upgrading to a tested 3HNE06225-1 restores signal integrity and allows the IRC5 controller to execute motion profiles at their designed efficiency levels.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 3HNE06225-1 does not operate in isolation — it is one node in a tightly integrated energy-aware automation architecture. In a typical ABB robot cell, the IRC5 controller coordinates motion commands from the DSQC 609 power supply board, routes I/O signals through the DSQC 652 digital I/O module, and communicates with the DSQC 679 FlexPendant for operator interaction. The AEXB-02 interface board sits at the intersection of these data flows, ensuring that command latency remains within the microsecond tolerances required for smooth, energy-efficient trajectory execution.

When integrated with an ACS880 variable frequency drive controlling conveyor or auxiliary motor loads in the same production cell, the overall system benefits from coordinated energy management. The robot’s motion profile — governed by the IRC5 and communicated through the 3HNE06225-1 — can be synchronized with the drive’s speed ramp profiles, reducing peak current draw during acceleration phases. This coordination is particularly valuable in high-throughput lines where the DSQC 378 bus adapter enables PROFIBUS or DeviceNet communication between the robot controller and upstream PLC systems such as the ABB AC500 series.

For facilities using ABB’s SafeMove2 safety module alongside the IRC5, the interface board also supports the integrity of safety-rated I/O signals. A degraded interface board can cause SafeMove2 to trigger protective stops more frequently than necessary, forcing the robot into a low-power safe state and disrupting production rhythm. A properly functioning 3HNE06225-1 ensures that safety monitoring operates without false positives, keeping the robot in its productive operating envelope and minimizing energy wasted on unnecessary deceleration and restart cycles.

In multi-robot cells where several IRC5 controllers share a common fieldbus backbone — often managed through an ABB DSQC 688 Ethernet switch module — the signal quality maintained by each AEXB-02 board directly affects the synchronization accuracy of the entire cell. Poor synchronization leads to robots waiting on each other, creating idle periods where motors remain energized but unproductive. Restoring interface board integrity across all controllers in the cell can measurably reduce the cell’s energy consumption per assembled unit.

Power Optimization in Real Production Lines

Consider an automotive body welding line running six ABB IRB 6700 robots in a coordinated spot-welding sequence. Each robot’s IRC5 controller relies on its DSQC interface board stack — including the 3HNE06225-1 — to receive weld schedule data from the line PLC, confirm gun tip position via servo feedback, and report weld quality data to the factory MES. When one interface board begins to fail intermittently, the affected robot starts generating communication timeouts. The IRC5 responds by holding the robot in a fault-recovery state, during which the servo drives remain powered but the robot is stationary — consuming energy without contributing output.

Replacing the degraded 3HNE06225-1 with a tested unit eliminates these timeout events. The robot resumes its full duty cycle, and the energy consumed per weld drops back to its designed baseline. Across a three-shift operation, this restoration of efficiency can represent a meaningful reduction in the facility’s robot-related energy expenditure — without any changes to the welding process itself.

In electronics assembly lines using ABB IRB 2600 robots for PCB handling, the precision of the interface board’s I/O timing directly affects the accuracy of component placement. Timing errors caused by a degraded board force the robot to slow its approach speed as a fault-avoidance measure, increasing cycle time and the energy consumed per placement. A fresh 3HNE06225-1 restores the I/O timing margin, allowing the robot to operate at its programmed speed with full confidence in signal integrity.

Predictive maintenance programs that monitor DSQC board health through the IRC5’s diagnostic logs can identify 3HNE06225-1 degradation before it causes a production stoppage. Facilities that maintain a stocked spare of this board — alongside the DSQC 652 and DSQC 609 — can execute planned replacements during scheduled maintenance windows rather than emergency shutdowns, preserving both energy efficiency and production throughput. All units supplied by ZYPLC are tested prior to shipment and covered by a 12-month warranty, supporting a predictable maintenance budget and reducing the risk of unplanned downtime.

Energy Optimization FAQ

Q1: How does replacing the 3HNE06225-1 interface board reduce energy consumption in my robot cell?
A faulty AEXB-02 board causes communication errors that force the IRC5 controller into fault-recovery cycles — periods where servo drives remain energized but the robot is stationary. Restoring signal integrity eliminates these idle-energy events and returns the robot to its designed duty cycle efficiency.

Q2: Is the 3HNE06225-1 compatible with all IRC5 controller variants?
The AEXB-02 is designed for the ABB IRC5 platform and is compatible with both single-cabinet and dual-cabinet configurations. It supports the DSQC series board stack used across IRB 2600, IRB 4600, IRB 6700, and IRB 7600 robot models. If you are unsure about compatibility with your specific controller revision, contact ZYPLC with your IRC5 serial number for confirmation.

Q3: What is the recommended replacement interval, and how do I know when the board is failing?
ABB IRC5 diagnostic logs will record increasing communication fault counts as the interface board degrades. Common indicators include intermittent E-stop triggers, fieldbus timeout alarms, and unexplained cycle time increases. We recommend replacing the board at the first sign of recurring communication faults rather than waiting for a complete failure, which typically causes an unplanned production stoppage.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Every 3HNE06225-1 unit supplied by ZYPLC undergoes functional testing to verify signal routing, I/O response, and communication interface integrity before dispatch. The 12-month warranty covers defects in the board’s electronic components and functionality under normal operating conditions. Units that fail within the warranty period are replaced or refunded — contact [email protected] to initiate a warranty claim.
