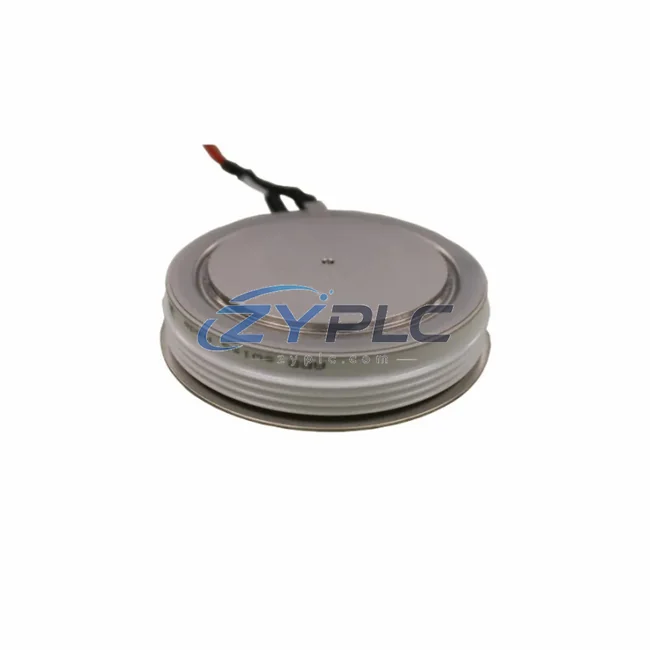

ABB 5STP 33L2800 Phase Control Thyristor for SAMI/ACS

ABB 5STP 33L2800 Phase Control Thyristor for SAMI/ACS: Precision Power Control Across Layered Automation Systems

The ABB 5STP 33L2800 is a high-performance phase control thyristor engineered for demanding industrial power conversion environments. Rated at 2800V repetitive peak off-state voltage with a continuous on-state current capacity suited for heavy-duty rectifier and inverter bridges, this component occupies a critical position within the power layer of any well-structured industrial control architecture. Rather than functioning as a standalone switching device, the 5STP 33L2800 is designed to operate as an integral element of a coordinated control system — one where the power conversion layer, control layer, I/O layer, communication network, and human-machine interface all interact with precision and reliability.

In modern industrial automation, the power semiconductor layer is not isolated from the rest of the control hierarchy. The 5STP 33L2800 thyristor interfaces directly with ABB’s gate drive and firing control boards, which in turn receive phase-angle commands from the system’s central control platform. Whether deployed in a DC motor drive, a static VAR compensator, a soft-starter bridge, or a multi-pulse rectifier assembly, this thyristor’s electrical characteristics — including its low on-state voltage drop, high surge current tolerance, and stable thermal performance — ensure that the power conversion stage remains consistent and predictable across the full operating range of the system.

system integration is at the heart of how the 5STP 33L2800 delivers value. Its performance cannot be evaluated in isolation; it must be understood in relation to the snubber circuits, heat sink assemblies, bus bar configurations, and firing pulse synchronization networks that surround it. When properly integrated into an ABB-compatible thyristor stack, this device contributes to the overall system’s ability to maintain tight voltage regulation, minimize harmonic distortion, and sustain continuous operation under variable load conditions — all of which are essential requirements in process-critical industries.

Product Specification Table

System Compatibility Notes

The 5STP 33L2800 thyristor is most effectively deployed within a fully coordinated ABB power drive or rectifier system. At the control layer, an ABB DCS800 DC drive controller or an ACS800 AC drive platform issues firing angle commands through dedicated gate drive interface boards such as the SDCS-PIN-48 or SDCS-CON-4, which translate digital control signals into precisely timed gate pulses. These pulses are delivered to the 5STP 33L2800 with microsecond-level accuracy, ensuring that phase control is maintained even under rapidly changing load conditions.

At the I/O layer, ABB S800 I/O modules or CI840 PROFIBUS adapter modules collect feedback signals from current transformers, voltage transducers, and temperature sensors mounted on the thyristor heat sink assembly. This feedback loop allows the control platform to dynamically adjust firing angles in response to thermal drift, load transients, or grid voltage fluctuations — a capability that is essential for maintaining system stability in high-power applications.

The communication network layer, typically implemented using PROFIBUS DP, PROFINET, or ABB’s proprietary DDCS fiber-optic link, connects the drive controller to the plant-level SCADA or DCS system. This allows operators to monitor thyristor junction temperature estimates, on-state current levels, and fault status in real time from an ABB Panel 800 HMI or a third-party SCADA workstation. The 5STP 33L2800’s stable electrical characteristics ensure that the data reported through this communication chain accurately reflects the true operating state of the power conversion bridge.

At the power supply layer, ABB NPBA-12 or NINT-41 interface boards, along with dedicated 24 VDC auxiliary power supplies, provide the low-voltage control power required by the gate drive circuits. Proper decoupling and filtering at this layer prevents gate pulse distortion caused by switching noise — a common source of misfiring in high-power thyristor bridges. The 5STP 33L2800’s robust gate sensitivity characteristics provide an additional margin of immunity against such disturbances.

In redundant architecture designs, thyristor stacks using the 5STP 33L2800 are often configured in series strings with voltage-sharing resistors and RC snubber networks to ensure uniform voltage distribution across each device. Parallel configurations using matched 5STP 33L2800 units with current-sharing inductors are employed in ultra-high-current rectifier bridges for aluminum smelting, electrochemical processing, and large-scale DC motor drives. The press-pack construction of the 5STP series ensures mechanical consistency across matched units, which is critical for achieving balanced current sharing in parallel stacks.

Industrial Application Notes

Manufacturing and Metal Processing: In steel rolling mills and aluminum extrusion lines, the 5STP 33L2800 is deployed in multi-pulse rectifier bridges that supply DC power to large wound-field DC motors. The thyristor’s high surge current rating allows it to withstand the inrush currents associated with motor starting and load reversals, while its low on-state voltage drop minimizes heat generation in the rectifier cabinet — a critical factor in facilities where cooling capacity is limited.

Power Generation and Utilities: In excitation systems for synchronous generators and in static VAR compensators for grid voltage support, the 5STP 33L2800 provides the precise phase control required to regulate reactive power injection. Its high blocking voltage rating ensures reliable operation even in medium-voltage grid-connected applications where transient overvoltages are common.

Petrochemical and Process Industries: Refineries and chemical plants rely on thyristor-controlled drives for large pump and compressor motors. The 5STP 33L2800’s ability to operate continuously at high junction temperatures — combined with its compatibility with ABB’s comprehensive drive protection and monitoring ecosystem — makes it a preferred choice for applications where unplanned downtime carries significant financial and safety consequences.

Water Treatment and Infrastructure: Municipal water treatment facilities use thyristor drives to control high-power pump motors that must operate continuously with minimal maintenance intervention. The 5STP 33L2800’s long service life and the availability of warranty terms confirmed during quotation coverage provide the reliability assurance required for critical infrastructure applications.

Mining and Mineral Processing: Conveyor drives, hoist systems, and grinding mill drives in mining operations demand power semiconductors capable of withstanding severe mechanical vibration, wide temperature swings, and high levels of airborne contamination. The press-pack construction of the 5STP 33L2800 provides superior mechanical robustness compared to wire-bonded alternatives, making it well-suited for these demanding environments.

Product Compatibility FAQ

Q1: Is the ABB 5STP 33L2800 compatible with existing ABB DCS800 and ACS800 drive platforms?
Yes. The 5STP 33L2800 is designed to integrate with ABB’s established drive and rectifier architectures. It is compatible with ABB’s standard gate drive interface boards, including the SDCS-PIN series, and can be used as a direct replacement in existing thyristor stacks within DCS800-based DC drive systems. When replacing thyristors in an existing installation, it is important to verify that the replacement device’s voltage and current ratings meet or exceed those of the original specification, and that the gate trigger characteristics are compatible with the existing firing circuit. Our technical team can assist with compatibility verification prior to installation.

Q2: What installation and commissioning considerations apply when integrating the 5STP 33L2800 into a high-power rectifier bridge?
Proper installation of the 5STP 33L2800 requires attention to mounting torque specifications for the press-pack assembly, thermal interface material selection for the heat sink contact surfaces, and snubber circuit design to limit dV/dt stress during commutation. Gate drive cable routing should minimize inductance and avoid proximity to high-current bus bars to prevent induced noise on the gate signal. During commissioning, firing angle symmetry across all thyristors in the bridge should be verified using an oscilloscope, and thermal imaging should be used to confirm uniform heat distribution across the heat sink assembly. ABB’s application engineering documentation provides detailed guidance for these procedures.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions as specified in the device datasheet. It does not cover damage resulting from improper installation, overvoltage events exceeding the device’s rated VDRM, or operation outside the specified thermal limits. For long-term maintenance planning, we recommend maintaining a small inventory of matched 5STP 33L2800 units on-site to minimize downtime in the event of a device failure. Our supply chain team can assist with establishing a scheduled replenishment program to ensure that replacement units are always available when needed. Contact us at plc.sales@zyplc.com or +86 19859288691 for inventory and warranty support.
