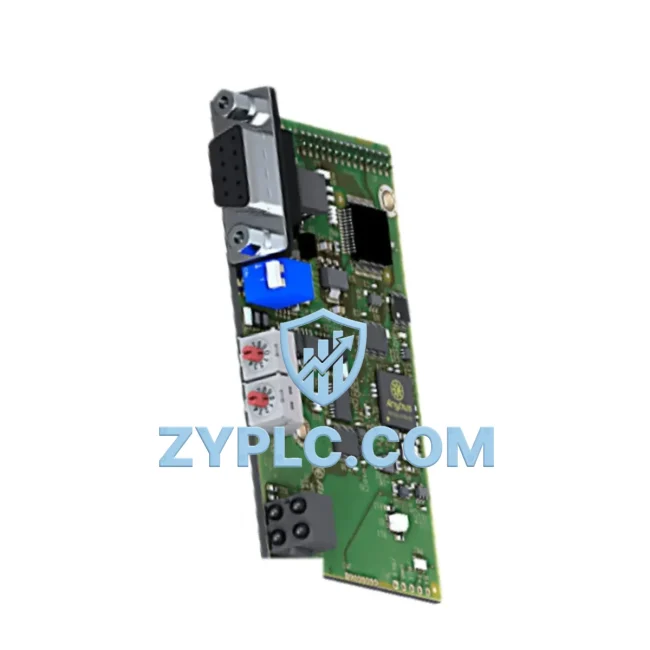

ABB AB5030-B Energy-Saving Communication Card for ACS800

ABB AB5030-B Energy-Saving Communication Card for ACS800: Precision Drive Control and Production Line Efficiency

The ABB AB5030-B is an RMIO (Relay, Motor control, I/O) communication card engineered specifically for the ACS800 series of industrial AC drives. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the AB5030-B serves as the critical interface layer between the drive system and the plant-level control architecture. By enabling high-speed, deterministic fieldbus communication, this module allows engineers to implement real-time motor speed regulation, torque control, and energy consumption feedback — all from a centralized control platform.

Unlike generic communication adapters, the AB5030-B is factory-designed to integrate natively with the ACS800 drive’s internal firmware, ensuring zero-latency command execution and reliable status reporting. This native integration is essential for applications where millisecond-level response times determine whether a production line maintains its target cycle rate or falls into unplanned downtime.

Efficiency Performance Table

Energy-Aware Automation Architecture

The AB5030-B does not operate in isolation — it is the communication backbone that ties together an energy-aware automation system. In a typical ACS800-based drive system, the AB5030-B connects the drive to an ABB AC500 PLC or a distributed control system via PROFIBUS-DP or DeviceNet, enabling the controller to issue precise speed and torque references while simultaneously reading back real-time power consumption data.

On the drive side, the ACS800 uses Direct Torque Control (DTC) technology, which inherently reduces motor losses compared to conventional V/Hz drives. When paired with the AB5030-B, the PLC can dynamically adjust the drive’s output frequency based on actual load demand — a technique known as demand-based speed control. For pump and fan applications, this alone can reduce energy consumption by 20–40% compared to fixed-speed operation.

For power quality and energy monitoring, the AB5030-B integrates seamlessly with ABB B23 or B24 series energy meters, which can be networked on the same Modbus segment to provide panel-level kWh tracking. This data feeds into an ABB Ability™ Energy Manager or a third-party SCADA system, giving plant engineers a complete picture of energy flows across multiple drive zones.

On the I/O side, the RMIO card works in conjunction with ABB RDIO-01 digital I/O extension modules and RAIO-01 analog I/O modules to expand the drive’s signal handling capacity. This is particularly valuable in multi-motor coordination scenarios — for example, a conveyor system where the ACS800 drives controlling infeed, transfer, and outfeed sections must synchronize their speeds to eliminate product accumulation and reduce mechanical stress.

For operator-level interaction, the AB5030-B-equipped ACS800 can be monitored and configured via an ABB ACS-CP-C control panel or integrated into an ABB CP600 HMI running on the same PROFIBUS network. Operators can view real-time motor current, output frequency, energy consumption, and fault history without leaving the production floor.

In safety-critical applications, the communication card supports integration with ABB FSPS-21 functional safety modules, enabling Safe Torque Off (STO) commands to be issued over the fieldbus — eliminating the need for hardwired safety relays and reducing panel wiring complexity. The ABB AINT-02 fiber optic interface board can also be used in high-noise environments to maintain signal integrity between the drive and the control cabinet.

Power Optimization in Real Production Lines

Consider a bottling plant running six ACS800 drives on its filling and capping lines. Without fieldbus communication, each drive operates on fixed speed references set by local potentiometers — a common but highly inefficient configuration. When the AB5030-B is installed and the drives are connected to the plant’s PROFIBUS network, the AC500 PLC can implement a production-rate-based speed algorithm: as the upstream filling rate decreases (detected via a flow meter signal on the PLC’s analog input), the capping conveyor speed is automatically reduced in proportion, eliminating the energy wasted running motors at full speed during partial-load conditions.

In a compressor room application, the AB5030-B enables the ACS800 to receive pressure feedback from a process transmitter via the PLC and implement closed-loop pressure control. Instead of the compressor cycling on and off at full power (a highly energy-intensive pattern), the drive modulates motor speed to maintain a constant system pressure setpoint. Field data from similar installations consistently shows 25–35% reductions in compressor energy consumption after this type of retrofit.

From a maintenance perspective, the AB5030-B enables predictive maintenance workflows by exposing the ACS800’s internal diagnostic parameters — motor current signature, output voltage THD, drive temperature, and run-hour counters — to the plant’s SCADA or CMMS system. Maintenance teams can set threshold alerts for abnormal current draw (an early indicator of bearing wear or mechanical overload) and schedule interventions during planned downtime windows rather than reacting to unexpected failures. This shift from reactive to predictive maintenance typically reduces unplanned downtime by 30–50% in motor-driven systems.

Every AB5030-B unit supplied by ZYPLC undergoes a full functional test prior to shipment, including communication protocol verification, I/O signal mapping checks, and drive parameter read/write validation. This ensures that the module arrives ready for immediate installation, reducing commissioning time and eliminating the risk of receiving a defective unit. All units are covered by a 12-month warranty, with in-stock availability for fast delivery to support urgent maintenance and retrofit projects.

Energy Optimization FAQ

Q1: How much energy can I realistically save by adding the AB5030-B to my ACS800 drive system?
The energy savings depend on the application. In variable-torque loads such as pumps, fans, and compressors, implementing demand-based speed control via the AB5030-B and a PLC can reduce motor energy consumption by 20–40%. In constant-torque applications like conveyors, savings are typically 10–20% through elimination of mechanical throttling and improved load matching. The AB5030-B itself is a prerequisite for implementing these control strategies — without fieldbus communication, the drive cannot receive dynamic speed references from the control system.

Q2: Is the AB5030-B compatible with my existing PROFIBUS or DeviceNet network?
Yes. The AB5030-B (RMIO board) is the base I/O and relay card for the ACS800, and it supports fieldbus communication through plug-in adapter modules such as the RPBA-01 (PROFIBUS-DP) or RDNA-01 (DeviceNet). If your plant uses Modbus TCP, the RETA-02 Ethernet adapter can be used in conjunction with the RMIO board. The AB5030-B is compatible with all standard ACS800 frame sizes and firmware versions, making it a straightforward retrofit for existing installations.

Q3: Can the AB5030-B replace a faulty RMIO board in my existing ACS800 without full drive replacement?
Absolutely. The AB5030-B is a direct replacement for the RMIO communication and I/O board in the ACS800 series. Replacing only the RMIO board rather than the entire drive unit is significantly more cost-effective — typically 10–20% of the cost of a new drive — and restores full drive functionality including fieldbus communication, analog/digital I/O, and relay outputs. ZYPLC maintains in-stock inventory of AB5030-B units to support urgent replacement needs, with fast shipping available.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every AB5030-B unit is tested before shipment using a dedicated ACS800 drive test bench. The test procedure includes: (1) power-up and firmware compatibility verification, (2) analog and digital I/O signal mapping validation, (3) relay output function test, (4) fieldbus communication handshake test with a live PLC, and (5) thermal cycling to verify component stability. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no cost to the customer.
