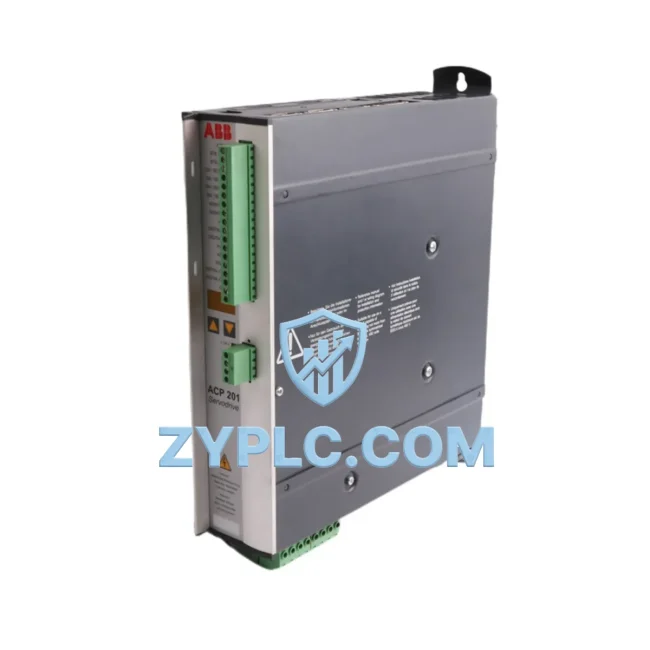

ABB ACP201-02 System-Ready Servo Drive for ACS/ACP Architecture

ABB ACP201-02 System-Ready Servo Drive: Control System Architecture and Upstream-Downstream Coordination

The ABB ACP201-02 (Part No. 3ADM2001132R0101) is a precision servo drive module engineered for seamless integration within ABB’s ACS and ACP motion control architecture. Rather than functioning as a standalone component, the ACP201-02 is designed to operate as a coordinated node within a layered automation system — interfacing with the control layer, I/O layer, communication network, power supply layer, HMI layer, and execution layer to deliver consistent, scalable, and maintainable machine performance. Its role in the overall control hierarchy makes it a critical element for engineers designing high-availability, multi-axis motion systems across demanding industrial environments.

Architecture Specification Table

Coordinated Control System Design

In a complete ABB motion control architecture, the ACP201-02 servo drive does not operate in isolation. It is coordinated by an upstream motion controller or PLC — typically an ABB AC500 series PLC or an ABB MicroFlex e190 motion controller — which issues real-time position and velocity commands via a high-speed fieldbus. The drive receives these commands and translates them into precise current and torque outputs to the connected servo motor, closing the loop through encoder feedback.

At the power supply layer, the ACP201-02 is typically paired with an ABB ACS880 regenerative supply unit or a dedicated DC bus power module, ensuring stable intermediate bus voltage across multi-axis configurations. In multi-axis cabinets, the drive shares a common DC bus with sibling drives such as the ACP202 or ACP203 axis modules, reducing overall energy consumption and simplifying cabinet wiring. The ABB ACSM1 or ACS850 drive families may also coexist in the same control cabinet, handling auxiliary axes or pump/fan loads on the same network segment.

At the I/O layer, digital and analog I/O expansion modules — such as ABB’s RDIO-01 or RAIO-01 option boards — can be integrated to handle local sensor inputs, limit switch signals, and analog reference signals without burdening the main fieldbus. This local I/O handling reduces latency in safety-critical signal paths and improves overall system response time.

Communication stability is ensured through the drive’s fieldbus adapter interface, which supports PROFIBUS-DP, EtherNet/IP, or SERCOS III depending on the installed communication option module. This allows the ACP201-02 to participate in deterministic motion networks alongside other ABB drives, Siemens SINAMICS modules, or third-party servo amplifiers without protocol conflicts. The drive’s parameter set is fully accessible via ABB’s DriveStudio or Drive Composer engineering tools, enabling rapid commissioning, parameter backup, and remote diagnostics.

At the HMI layer, operators interact with the motion system through ABB CP600 series operator panels or third-party SCADA systems connected via OPC-UA or Modbus TCP. The ACP201-02’s status registers — including actual position, following error, drive temperature, and fault codes — are mapped directly to the HMI for real-time monitoring and alarm management. This transparency across the HMI layer significantly reduces mean time to repair (MTTR) during unplanned downtime events.

For redundancy-critical applications, the ACP201-02 can be configured in a hot-standby or cold-standby arrangement alongside a redundant motion controller, with automatic drive parameter synchronization ensuring seamless switchover. Terminal modules such as the ABB BSAB-01 or BSBB-01 backplane connectors facilitate clean mechanical integration within the drive rack, while maintaining signal integrity across the full operating temperature range.

Application in Layered Automation Systems

The ACP201-02 servo drive is deployed across a wide range of industrial sectors where precise motion control and system-level integration are non-negotiable requirements.

Manufacturing & Packaging Lines: In high-speed packaging machinery, the ACP201-02 coordinates with upstream vision systems and downstream conveyor drives to maintain product registration accuracy at line speeds exceeding 200 packs per minute. Its fast current loop response ensures minimal position error even during rapid acceleration and deceleration cycles.

Power Generation & Utilities: In turbine governor control and valve actuation systems, the drive’s torque control mode provides smooth, repeatable positioning of control valves, reducing mechanical wear and extending actuator service life. Integration with ABB’s 800xA distributed control system allows the drive to participate in plant-wide asset management programs.

Petrochemical & Process Industries: In compressor control and reactor agitator applications, the ACP201-02 operates within SIL-rated safety architectures, interfacing with safety PLCs via hardwired STO (Safe Torque Off) inputs and monitored speed feedback channels. This ensures compliance with IEC 62061 and ISO 13849 functional safety standards.

Water & Wastewater Treatment: Pump and blower control applications benefit from the drive’s energy optimization algorithms, which reduce power consumption during partial-load operation. Remote parameter access via Ethernet fieldbus allows plant operators to adjust drive settings without physical access to the control cabinet, reducing maintenance costs in remote installations.

Mining & Metallurgy: In conveyor drive and hoist control systems, the ACP201-02’s robust thermal management and wide ambient temperature tolerance ensure reliable operation in dusty, high-vibration environments. Its compatibility with ABB’s condition monitoring tools enables predictive maintenance scheduling, reducing unplanned downtime in critical production processes.

Architecture Engineering FAQ

Q1: Is the ACP201-02 compatible with existing ABB ACS880 multi-drive cabinet configurations?
Yes. The ACP201-02 is designed for integration within ABB’s ACS/ACP multi-axis platform and shares a common DC bus architecture with ACS880 drive modules. It can be installed alongside ACS880 inverter units in a common DC bus cabinet, provided the total DC bus load is within the supply unit’s rated capacity. Fieldbus communication is handled through the drive’s option slot, supporting PROFIBUS-DP, EtherNet/IP, and SERCOS III adapters for seamless integration with existing network infrastructure.

Q2: What commissioning tools and procedures are required for initial system integration?
The ACP201-02 is commissioned using ABB’s DriveStudio or Drive Composer Pro software, connected via USB or Ethernet. During commissioning, motor identification routines are performed to optimize current controller gains for the connected servo motor. Parameter sets can be exported and stored for rapid replacement in the event of a drive failure, reducing recommissioning time to under 30 minutes in most applications. All parameter files are compatible with ABB’s asset management systems for centralized backup and version control.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed?
ZYPLC provides a 12-Month Warranty on the ACP201-02, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty period begins from the date of shipment. In addition to warranty coverage, ZYPLC maintains a dedicated inventory of ACP201-02 units and compatible ABB ACS/ACP series components to support long-term spare parts requirements. For critical production environments, we recommend maintaining at least one spare drive on-site to minimize exposure to lead times. Our technical team is available to assist with drive replacement, parameter restoration, and system re-commissioning throughout the warranty period and beyond.
